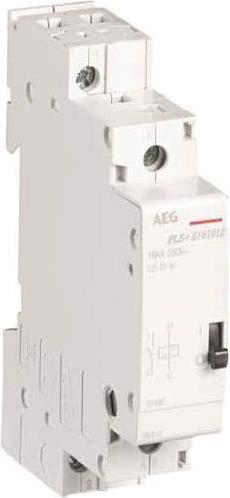

AEG Impulse switch PLS+ S1610230 16A 230VAC/110VDC 1S 68561

Function: Pulse switches are electromechanically controlled switches used to control single-phase or multi-phase medium power loads, while the control itself can have (very) low power. The device switches between two stable positions each time a (short) pulse energizes its control circuit. Application: Mainly used for switching lighting and heating systems and/or for achieving simplified wiring when the load is to be controlled at reduced voltage and/or from more than two different locations. Features: In addition to normal operation by electrically energizing the coil, manual operation is possible at any time. The switch position is indicated by the position of the front lever for all devices. The central control version has been developed to switch multiple devices simultaneously into the on or off position, regardless of the current status of each individual device. In this case, the option to switch directly at the device remains. The safety terminals are equipped with captive Pozidriv screws and have an IP20 protection rating. An auxiliary contact for mounting, a central control module for mounting, and a spacer are available. The use of a large number of illuminated push buttons is possible. Closure caps for the connection terminals are available. DIN rail mounting: can be used in vertical/horizontal position.

Type: PLS+ S1610230

PULSAR S+ AEG - E290, PLS SC+ AEG - E232 pulse switches.
