Adafruit Neopixel Mini PCB (5 pcs.

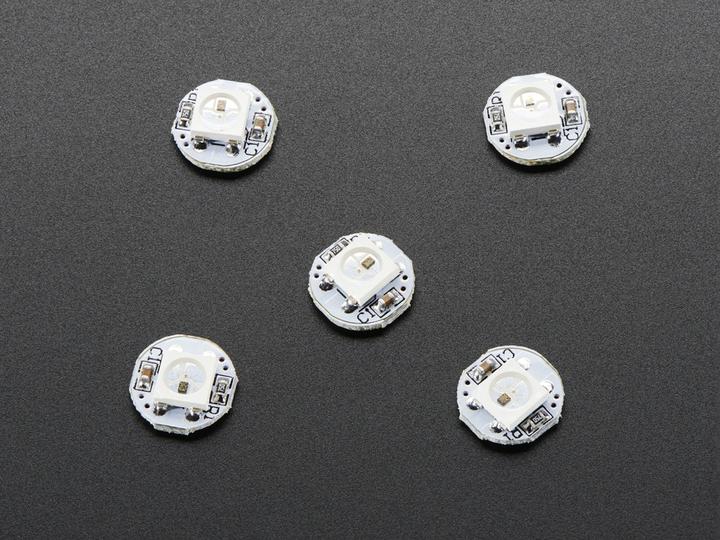

5 pieces of Neopixel on a small PCB.

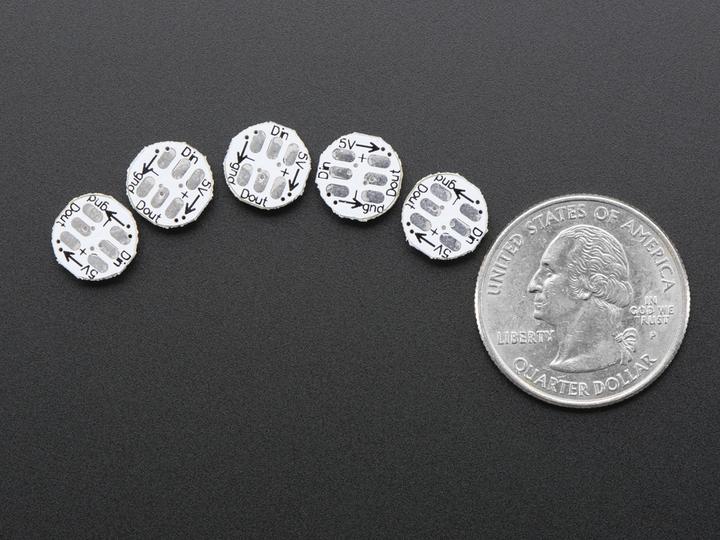

At just 8 mm x 10 mm, this is likely the smallest breakout for Neopixels. On the back, there are 2 x 3 solder points for power supply and control. The controller is already integrated into the LED, allowing (almost) any number of Neopixels to be connected in a series.

All pixels can display any color with 24-bit color depth and are dimmable via PWM.

Each pixel consumes about 60 mA (white, full brightness). Since the Neopixels are very bright, even 50% brightness can yield very nice results. With an Arduino, approximately 500 Neopixels can be addressed before the RAM is full.

The maximum distance between two Neopixels should not exceed 15 cm.

Packaging unit: 5 pieces.
