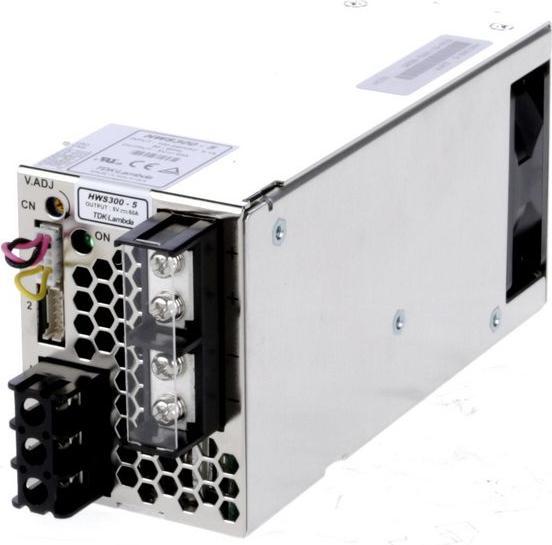

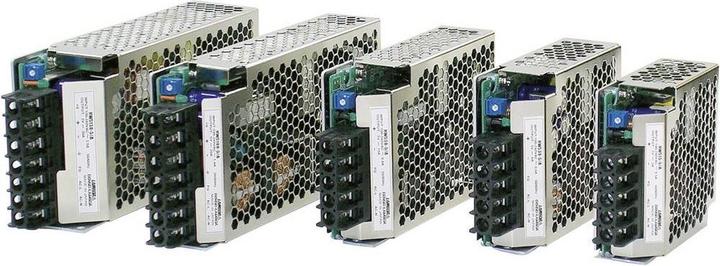

High availability, evidenced by an extended warranty, is the focus of the HWS series in the power range from 15 watts to 1500 watts. With efficiencies of up to 90% and excellent power density, the convection-cooled devices up to 150 watts can still be integrated into 1U enclosures. The devices with 300 W and 600 W output power are cooled by built-in fans and require 2U of space. Under the designation HWS-P, devices with triple overload capability are available in the 300 W and 600 W power classes, specifically designed for motor start-up. The range of output voltages extends from 5V to 48V, each adjustable via a potentiometer within +/- 20%. The devices meet the requirements of SEMI F47 regarding supply voltage dips, a standard in the semiconductor industry.
Modularity | Permanently installed |
Item number | 8424336 |
Publisher | TDK |
Category | Power Supply PC |
Manufacturer no. | HWS-300-12 |
Release date | 20.4.2018 |
External links |
Efficiency | 90 % |
Modularity | Permanently installed |
Power | 300 W |
Manufacturer commitment | RE100 |
Manufacturer compensation | According to RE100, the manufacturer TDK fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Power supply |
Length | 16.50 cm |
Width | 8.20 cm |
Height | 6.10 cm |
Weight | 1000 g |
