AccuCell Battery Tektronix THM5BAT
Product details

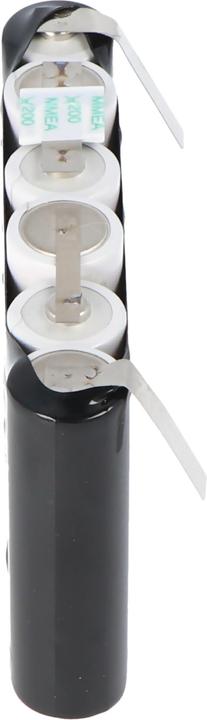

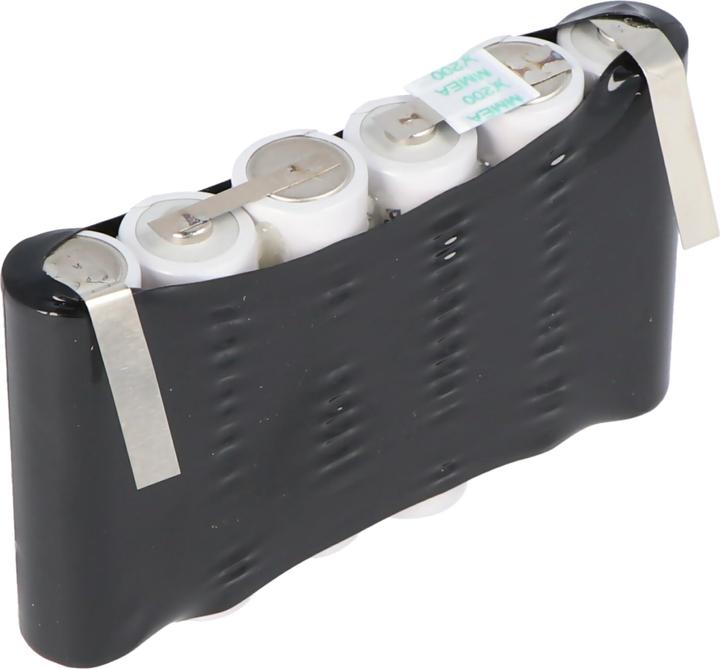

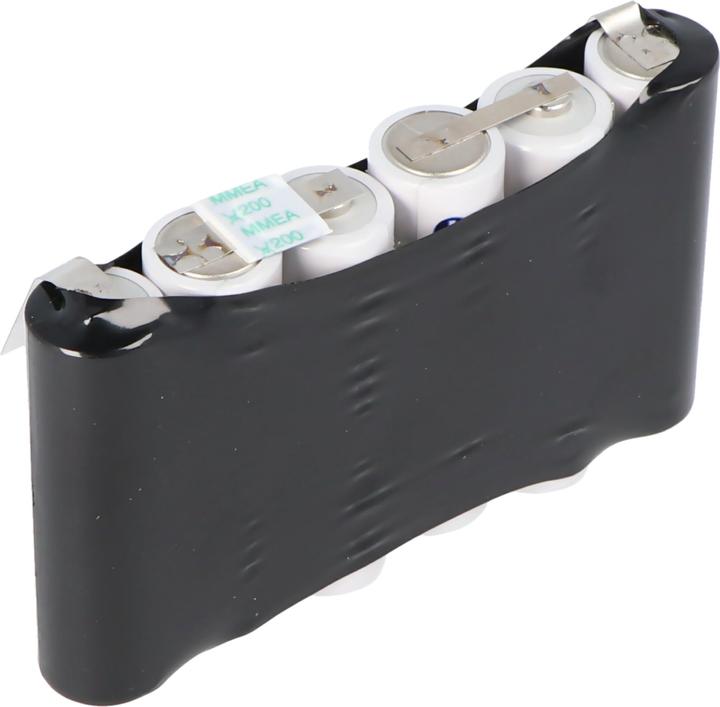

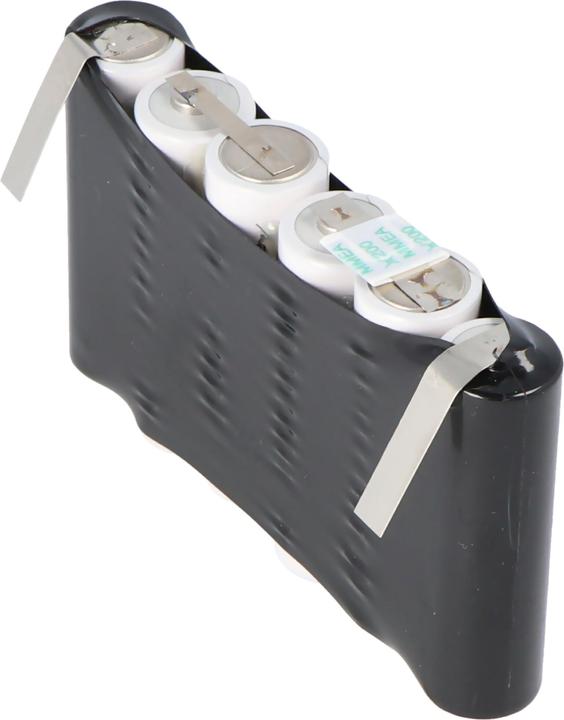

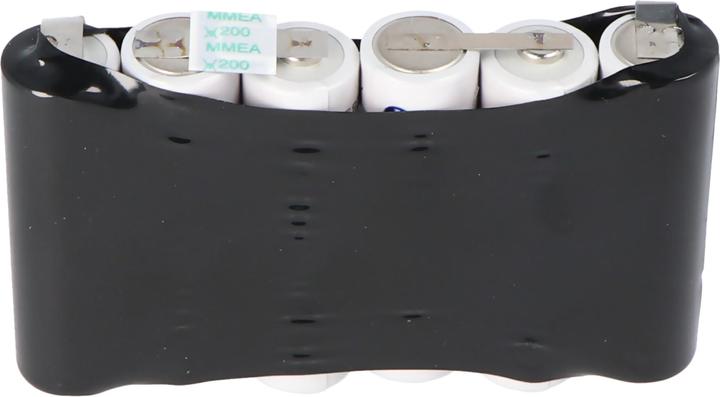

Replacement battery or battery pack for self-conversion, precisely fitting for
- Tektronix THM5BAT NiMH battery
- 7.2 volts with 2000mAh
- also a replacement for Tektronix THM5BAT Battery for THM550, THM560, THM565
- for self-installation into the existing battery housing
- also compatible with Greenlee 60756, Greenlee Battery Pack, Rechargeable battery pack for TelScout TS90 and CableScout TV90, 54H1922
Charged today, this replacement battery for the Tektronix Model THM5BAT option A maintains its capacity for up to 10 years, with very low self-discharge. Thanks to up to 2100 charge cycles, this battery is expected to achieve about double the lifespan of the original battery. The NiMH battery pack 7.2 volts with solder tabs is suitable for converting your old measuring device battery to this new NiMH battery pack. The conversion is relatively simple: carefully remove the adhesive films, then simply take out the old 7.2-volt battery pack and replace it with the new battery pack with a robust 2000mAh capacity.
Technical specifications (not an original Tektronix THM5BAT battery):
Voltage 7.2 volts, capacity min. 1900 mAh, typical 2000mAh, dimensions LxWxH approx. 85 x 14.5 x 50 mm, cell size AA Mignon HR-3 UTG, system NiMH battery pack, weight approx. 140 grams, configuration F1x6 (6-cell series), connection system with solder tab (but without solder tab on the positive and negative terminals).
Please note that this is only the battery pack interior; you must remove the housing from the old battery pack!.
Item number | 14070321 |
Manufacturer Type | THM5BAT |
CO₂-Emission | |
Climate contribution |
Length | 85 mm |
Width | 14.50 mm |
Height | 50 mm |
Weight | 140 g |
Ingredients | Replica battery or battery pack Rechargeable battery pack for self-conversion exactly suitable for Tektronix THM5BAT Battery NiMH 7,2 Volt with 2000mAh also as replacement for Tektronix THM5BAT Battery for THM550, THM560, THM565 for self-installation in the existing battery housing also suitable forGreenlee 60756, Greenlee BATTERY PACK,RECHG (TS90), Rechargable battery pack for TelScout TS90 and CableScout TV90, 54H1922 Charged today, this replacement battery for the Tektronix Model THM5BAT option A battery File Nr. E158865 keeps its capacity up to 10 years, very low self-discharge. Thanks to the up to 2100 charging cycles, this battery should also last about twice as long as the original battery. The NiMH battery pack 7.2 volt with solder tabs, e.g. for converting your old measuring device battery to this new NiMH battery pack. The conversion is relatively simple by carefully removing the adhesive film and then simply removing the old 7.2 Volt battery pack and replacing it with the new battery pack with a full 2000mAh capacity. technical data (not an original Tektronix THM5BAT battery):Voltage 7.2 Volt, capacity min. 1900 mAh, typ. 2000mAh, dimensions LxWxH approx. 85 x 14.5 x 50 mmCell size AA Mignon HR-3 UTG, NiMH battery pack system, weight approx. 140 gramsConfiguration F1x6 (row of 6), plug-in system with solder lug (but without solder lug on positive and negative terminals.Please note that this is only the battery pack inside, the housing must be removed from the old battery pack! |
