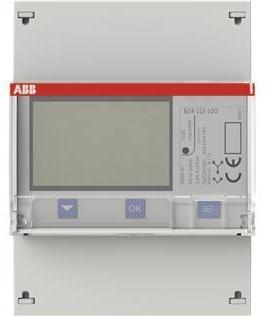

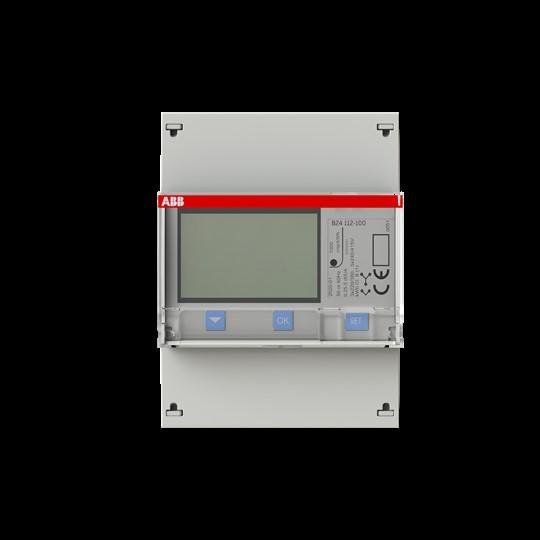

ABB Transformer Meter B24 112-100 Steel

ABB Stotz S&J Measuring Transformer Meter B24 112-100

Manufacturer: ABB Stotz S&J
Designation: Measuring Transformer Meter RS485
Type: B24 112-100
Meter Type: electronic
Rated Current (In): 6 A
Maximum Current (Imax): 6 A
Rated Voltage (Un) N-L: 230..240 V
Rated Voltage (Un) L-L: 380..415 V
Frequency: 50..60 Hz
Accuracy Class: B
Connection Type: Four-wire
Design: Measuring Transformer
Energy Type: Active Power
Suitable for: Consumption
Tariff Type: Single Tariff
Load Profile Measurement: no
Reverse Lock: yes
Calibrated: yes
Approval: Measuring Instruments Directive
Pulse Output: electrical
Pulse Type: S0
Pulse Rate: 1..999999 Imp/kWh (kvarh)
Display Type: digital
Mounting Type: REG
Width in Division Units: 4
Width: 70 mm
Depth: 65 mm
Height: 26.5 mm
Interface Design: other
EDL40 Signature: no
With Lock Code: no
Number of Digits: 7
Protection Class (IP): IP20
Protection Class (NEMA): other

ABB Stotz S&J Measuring Transformer Meter B24 112-100: additional details
Three-phase meter for measuring a three-wire or four-wire three-phase network via a transformer connection CT (transformer ratio for current configurable) up to a maximum of 6 A. The following values are displayed via a seven-segment display with up to 7 digits: active energy (Class 1), power, current, voltage (L-L, L-N), and frequency for each phase as well as total. Communication can be done via the integrated RS485 interface (Modbus RTU) or through the infrared interface for connecting a KNX module. The energy meter has a pulse output. The meter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
