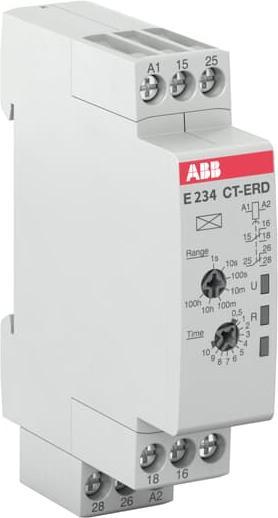

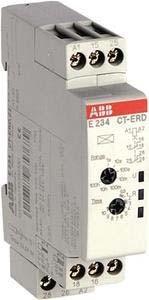

ABB Time relay switch-on delay 2W CT ERD 22

Ratings
BrandMore from ABB
Delivered between Thu, 14.8. and Tue, 26.8.
Only 1 piece in stock at supplier
free shipping

Product details

Supply voltage: 24 to 240 V AC, 24 to 48 V DC
Time range: 0.05 s to 100 h
Operating mode: On-delay
Mounting type: DIN rail, snap-on mounting
Number of time functions: Single
Number of contacts: 2
Time period: Hours, seconds
Power supply: External
Contact arrangement: 2-pole changeover switch
Current max: 6 A
Voltage min: 12 V
Voltage max: 250 V
Switching configuration: 1-pole changeover contact

Certifications: UL/UL for Canada, GL, GOST, C-Tick, IEC/EN 61812-1, DIN VDE 0435 Part 2021, CT-ERD. Functions: Parallel load to control voltage inputs is possible, wide voltage range, LEDs for status indication. Operating temperature range: -20 °C to +60 °C. Contact material: AgSnO2. Width: 22.5 mm.

Key specifications

input voltage
240 V
Scope of delivery
1 piece
Output voltage
24 V
Output current type
AC/DC
Electric current output
5 A
Relay type
Time relay
Item number
9716463

General information

Manufacturer
ABB
Category
Relays
Manufacturer no.
1SVR500100R0100 - CT-ERD.22,1SVR5001
Release date
24.9.2018

Relay properties

Relay type
Time relay
input voltage
240 V
Output voltage
24 V
Electric current output
5 A
Output current type
AC/DC
Number of closers
2 x
Manufacturer Type
CT-ERD.22

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
63 mm
Width
17.50 mm
Height
80 mm

Package dimensions

Length
9 cm
Width
8 cm
Height
2 cm
Weight
7 g
