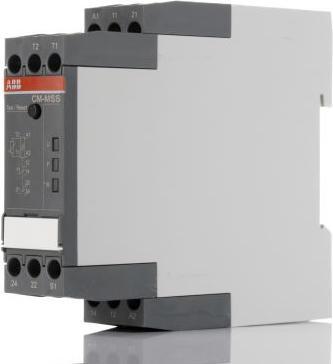

ABB Thermistor motor protection relay

Ratings
BrandMore from ABB
Delivered between Wed, 15.4. and Fri, 17.4.
7 pieces in stock at third-party supplier
Supplied by
JACOB DE
free shipping

Product details

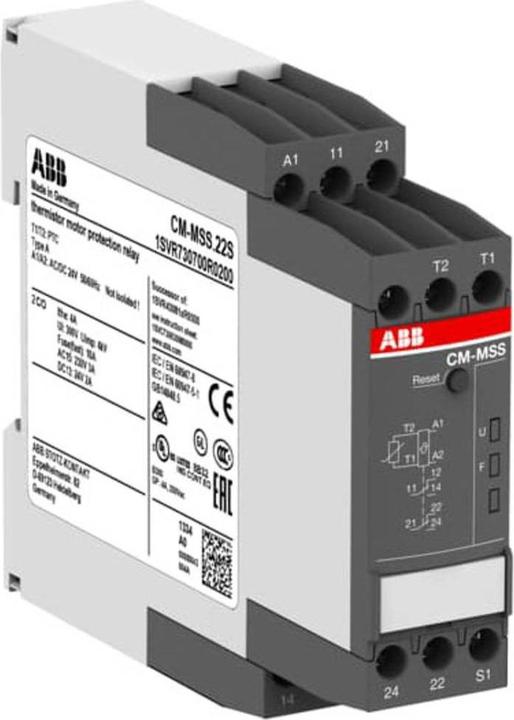

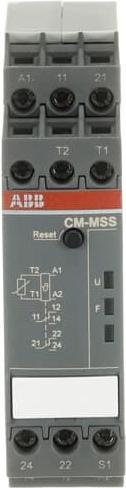

ABB Stotz S&J Thermistor Motor Protection Relay CM-MSS.22S

Manufacturer: ABB Stotz S&J
Designation: Thermistor Motor Protection Relay 2We, 24VAC/DC
Type: CM-MSS.22S
Removable terminals: no
Number of measurement circuits: 1
Number of contacts as changeover: 2
Connection type auxiliary circuit: screw connection
External reset possible: yes
Error memory possible: no
Rated control supply voltage Us: 24 V
Type of voltage for actuation: AC/DC
Height: 85.6 mm
Width: 22.5 mm
Depth: 103.7 mm

The thermistor motor protection relays CM-MSE and CM-MSS are used for controlling motors with PTC temperature sensors. The temperature sensors are embedded in the windings of the motors and directly measure the motor heating. This allows for immediate monitoring and evaluation of various operating conditions. Depending on the product, ATEX approvals for use in hazardous areas are also available. ABB also offers PTC temperature sensors C011 (according to DIN 44081), which can be embedded in motor windings.

Key specifications

Relay type
Monitoring relay
input voltage
24 V
Output current type
AC/DC
Number of poles
2x

General information

Item number
33788037
Manufacturer
ABB
Category
Relays
Manufacturer no.
1371707
Release date
17.5.2023

Relay properties

Relay type
Monitoring relay
input voltage
24 V
Output current type
AC/DC
Switching function
Changer
Number of poles
2x

Origin

Country of origin
China, Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
103.70 mm
Width
22.50 mm
Height
85.60 mm

30-day right of return
24 Months Warranty (Bring-in)
