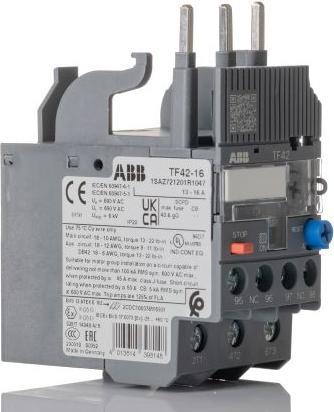

ABB TF42-16 Thermal Overload Relay 1SAZ721201R1047

ABB Stotz S&J Overload Relay TF42-16

Manufacturer: ABB Stotz S&J
Designation: Thermal overload relay 13-16A
Type: TF42-16
Adjustable current range: 13..16 A
Max. rated operational voltage Ue: 690 V
Mounting type: Direct mounting
Connection type main circuit: Screw connection
Number of auxiliary contacts as normally open: 1
Number of auxiliary contacts as normally closed: 1
Number of auxiliary contacts as changeover: 1
Tripping class: CLASS 10
Reset function input: no
Automatic reset function: yes
Reset function button: yes

ABB Stotz S&J Overload Relay TF42-16: additional details
TF42 are cost-effective electromechanical motor protection devices for currents up to 38 A. In the event of an overload, they provide reliable thermal protection for connected motors. TF42 are typically mounted on contactors AF09 to AF38, but with the help of a standalone mounting kit, the devices can also be mounted separately on a DIN rail. If the motor current set on the current scale is exceeded, the relays trip via bimetallic elements, thereby changing the switching position of the two auxiliary contacts 1S/1Ö. A preceding contactor is then switched off. The relays allow for manual or automatic reset, and they feature test and stop functions as well as a tripped indicator. The current scale of the devices is sealable. Accessories such as reset buttons and auxiliary relays complement the range. TF42 have a tripping class of 10, are temperature-compensated, phase failure sensitive, and have ATEX certification. EAN: 4013614398148.
