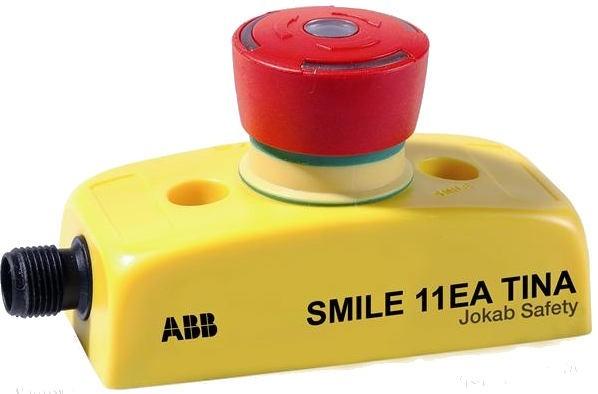

ABB Smile 11EA Tina Estop with LED for Vital

Mounting type: Surface mounting
Reset type: Rotary release
Protection class: IP65
Supply voltage: 24 Vdc
Head shape: Mushroom
Illuminated: No
Series: Smile Tina
Head diameter: 32 mm
Width: 40 mm

Certifications: EN ISO 12100-1, EN ISO 12100-2, EN 60204-1, EN 954-1, EN ISO 13849-1, EN 62061, IEC 60947-5-1. CE, TÜV.

The emergency stop Smile Tina for Vital/Pluto by ABB is particularly easy to install, especially on aluminum extrusion profiles. Three different versions are available, either with one or two M12 connectors or cables. Two M12 connectors allow for the series connection of emergency stop buttons, which is often done in dynamic safety circuits according to safety category 4. An LED on the top of the emergency stop unit Smile Tina indicates the current status according to the dynamic system.

Smile Tina from ABB is designed for use in safety circuits according to EN 60204-1.

LED display
Housing material: Polyamide PA66, Macromelt, Polybutylene terephthalate PBT, Polypropylene PP, UL 94 V0
Operating temperature range: -10 to +55 °C
Protection according to protection class IP65
Time delay t (on/off): 70 μs
Meets safety category 4
Actuation force (emergency stop button): 22 ± 4 N
Actuation travel: approx. 4 mm to the latching point
Connector: 5-pole connector, M12
Mechanical lifespan: over 50,000 switching cycles
Shock resistance (half-sine): max. 150 m/s², pulse width 11 ms, 3 axes (according to EN IEC 60068-2-27)
Vibration resistance (half-sine): max. 50 m/s² at 10 Hz, 10 cycles, 3 axes (according to EN IEC 60068-2-6).
