ABB Reversing contactor

Ratings
Delivered between Thu, 19.6. and Tue, 24.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

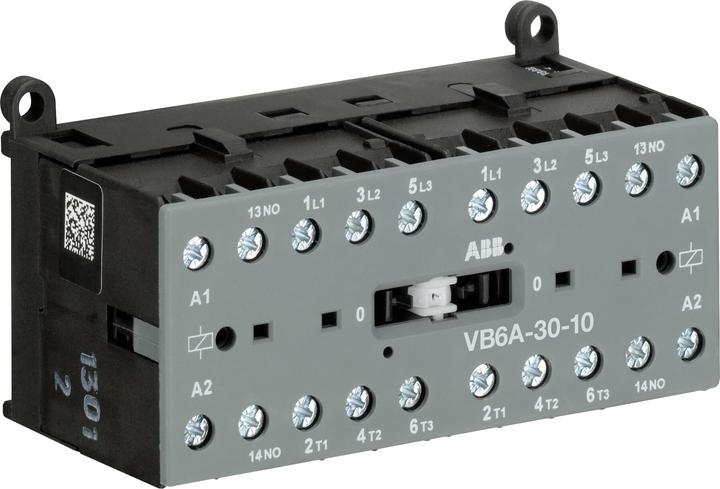

ABB Stotz S&J reversing contactor VB6A-30-10-80

Manufacturer: ABB Stotz S&J
Designation: Reversing contactor 1S 220-240VAC
Type: VB6A-30-10-80
Function: Reversing contactor
Rated control supply voltage Us at AC 50 Hz: 220-240 V
Rated control supply voltage Us at AC 60 Hz: 220 V
Voltage type for operation: AC
Rated operating current Ie at AC-3, 400 V: 9 A
Rated operating power at AC-3, 400 V: 4 kW
Rated operating power NEMA: 1.4914 kW
Connection type main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): 1

Further details:
Small reversing contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) represent a series with very small dimensions and with connection variants in screw, solder pin, and blade terminal technology. As a result, the units offer a very wide range of possible applications even in unfavorable space conditions. The mechanically interlocked reversing contactors switch power circuits of motors with clockwise and counterclockwise rotation with their AC or DC control. Attachable accessories include quenching links as well as front-mounted 2-pole auxiliary switches and reversing wiring.
EAN: 4013614153211.

Key specifications

input voltage
240 V
Scope of delivery
Reversing contactor 1S 220-240VAC
Output voltage
240 V
Output current type
AC
Electric current output
9 A
Item number
20021537

General information

Manufacturer
ABB
Category
Relays
Manufacturer no.
GJL1211911R8100
Release date
16.3.2022
External links
Manufacturer's site (de)

Relay properties

input voltage
240 V
Output voltage
240 V
Electric current output
9 A
Output current type
AC
Resistor
400000 Ω (ohm)
Manufacturer Type
Vb6a-30-10-80

Smart home features

Smart Home
Not compatible
Radio frequency
60 Hz

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Reversing contactor 1S 220-240VAC

Product dimensions

Length
46.70 mm
Width
96.20 mm
Height
57.50 mm
