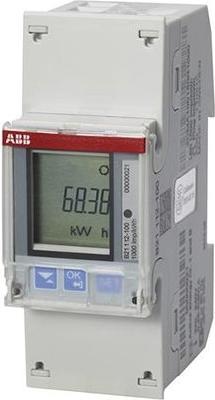

ABB MID Energy meter, B21 112 series

Display type: LCD
Number of digits: 6
Number of phases: 1
Pulse output: Yes
Depth: 65 mm
Accuracy: Class 1 %
Min. temperature: -40 °C
Max. temperature: +70 °C
Type of measuring device: Electromechanical

ABB Energy Meter B21, single-phase, Steel-Level. The B series is a basic meter product for systems up to 65 A for direct connection or connection via transformer (CT). Meters in this series are high-performance meters for many applications and systems. Navigation with the meter is very simple using the push buttons below the display. Data from B series meters can be captured via a pulse output or serial communication. All meters come with an infrared connection for communication with an external serial communication adapter (SCA) such as the KNX adapter. B21 – Single-phase energy meter, 65 A – 2 DIN widths with IR connection – Directly connected energy meter – Measurement values – Alarm function. Features (Steel-Level): Active power. New update: With a new update for all measuring devices in the B series, these devices can be used and set up more intuitively. This includes an updated user interface that requires fewer clicks for configuration, thus reducing time and costs for the installer. Fewer clicks to configure the most common settings, fewer steps to set the pulse output, easier to read and understand text, alarms are inactive by default.
