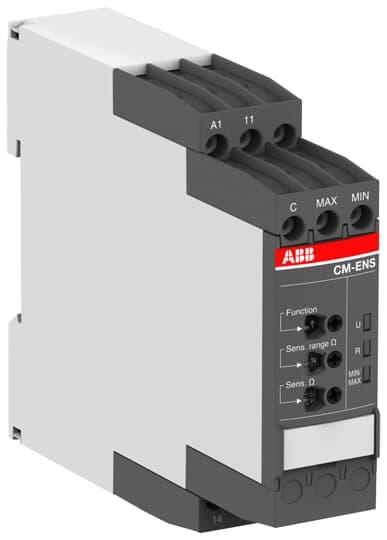

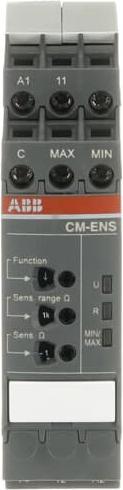

ABB Level monitoring relay

ABB Stotz S&J Level Monitoring Relay CM-ENS.21S

Manufacturer: ABB Stotz S&J
Designation: Level monitoring relay 1 changeover, 0.1-1000 kOhm
Type: CM-ENS.21S
Electrical connection type: Screw connection
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24..240 V
Voltage type for operation: AC/DC
With removable terminals: no
Number of electrode inputs: 3
Min. adjustable pick-up delay time: 0 s
Max. permissible pick-up delay time: 0 s
Min. adjustable drop-out delay time: 0 s
Max. permissible drop-out delay time: 0 s
Adjustable response sensitivity: yes
Number of contacts as changeover: 1
Physical measurement principle: conductive
Cascadeable: yes
Width: 22.5 mm
Height: 85.6 mm
Depth: 103.7 mm

The CM-ENS.21S is a relay from the CM family for level monitoring and level control. The rated control supply voltage is 24 - 240 V AC/DC. Output: 1 changeover contact (250 V / 4 A). It monitors and controls levels and mixing ratios of conductive liquids. It is used for filling and emptying applications, for dry running protection of pumps, and for signaling the status of the monitored level. The operating principle and sensitivity can be adjusted using potentiometers located on the front. Various electrodes and a sealable transparent cover to protect against unauthorized adjustments are available as accessories. The device is available with double chamber terminal blocks or push-in terminals. EAN: 4013614502927.
