ABB Energy consumption meter

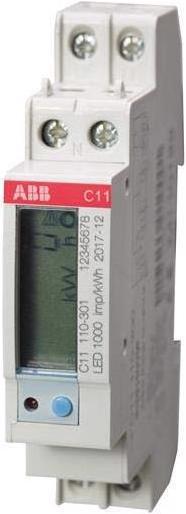

ABB Stotz S&J energy consumption meter C11 110-301 IEC

Manufacturer: ABB Stotz S&J
Name: Energy consumption meter 40A 1ph. 230VAC IP20
Type: C11 110-301 IEC
Meter type: Electronic
Rated current (In): 5 A
Maximum current (Imax): 40 A
Rated voltage (Un) N-L: 230-240 V
Frequency: 50-60 Hz
Accuracy class: B
Pole type: 1-phase
Design: Direct measurement
Energy type: Active power
Suitable for: Purchase
Tariff type: Single tariff
Measurement type load profile: No
Backstop: Yes
Calibrated: Yes
Pulse output: Electrical
Pulse type: S0
Pulse rate: 1000 Imp/kWh (kvarh)
Display type: Digital
Mounting type: REG
Width in division units: 1
Width: 17.5 mm
Depth: 65 mm
Height: 94 mm
Interface design: Without
EDL40 signature: No
With locking code: No
Number of digits: 6
Protection class (IP): IP20
Protection class (NEMA): Other

This meter is designed for measuring single-phase networks via a direct connection for currents up to 40 A maximum. The meter is calibrated according to IEC and displays all important instrumental values. It features one output, which can be used as a pulse output for active energy or as an alarm output. Up to 25 alarm values (threshold values with time delay) can be set. The installation width is 1 DIN module. Suitable accessories such as current transformers, gateways with integrated web server, and a KNX interface are available.
