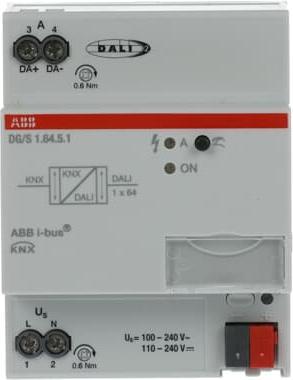

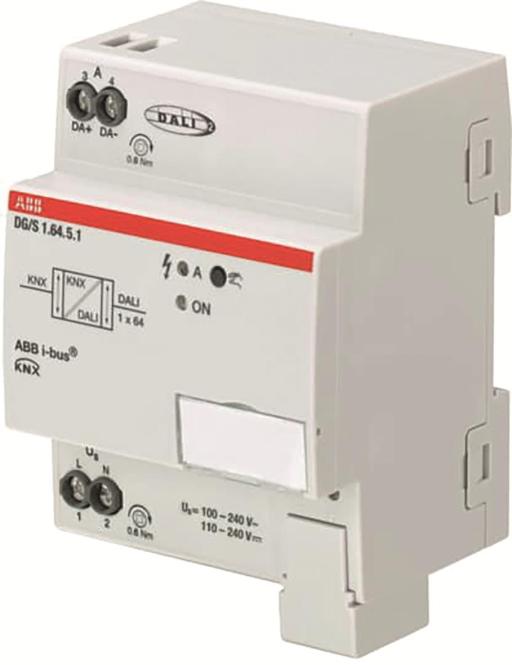

ABB DALI Gateway 1gang DG/S 1.64.5.1 Premium REG 2CDG110273R0011

ABB Stotz S&J DALI Gateway DG/S1.64.5.1

Manufacturer: ABB Stotz S&J
Designation: DALI Gateway Premium, 1-fold, DIN rail
Type: DG/S1.64.5.1
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Design: Interface for Lighting System/DALI
Mounting Type: DIN rail
Width in Division Units: 4
Number of Channels: 1
Max. Number of Devices per Channel: 64
Removal Protection: no
With LED Display: yes
Updatable: yes
Operating Voltage: 100-240 V
Voltage Type: AC/DC
Power Consumption: 2 W
Provider Dependent: no
Visualization: no
Web Server: no
Wireless Interface: no
IR Interface: no
Protection Class (IP): IP20

Additional Details:
Single-master DALI controller certified according to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 participants via ABB i-bus®. One DALI output for a maximum of 64 DALI participants. The DALI power supply is integrated. Control and status feedback occur via ABB i-bus® KNX for each DALI participant (64), with lighting groups (16), either collectively in broadcast or via scenes (16). DALI devices of type DT1 (self-sufficient emergency power converter according to EN 62386-202) and type DT8 (color temperature Tc & RGB(W) according to EN 62386-209) are supported. Other DALI participants, such as DT6, can be controlled via standard DALI commands according to EN 62386-102. Slave, stairwell, forced, lock, and scene functions are integrated. Color functions such as setting/dimming, HSV(W), Dim2Warm, and HCL are possible. A standby shutdown in combination with a KNX switching actuator (e.g., SA/S), 4 sequencers per DALI output, and the possibility of integrating the DALI gateway into a load control system are feasible. A separate software tool (ABB i-bus® Tool) is available for diagnosis and individual modification of the DALI address or group assignment.
EAN: 4016779067201.
