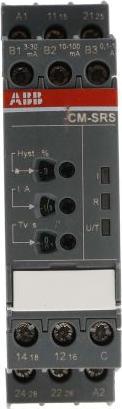

ABB Current Monitoring Relay 24-240 Vac/dc
Product details
Monitoring applications: current
Supply voltage: 24 to 240 V AC/DC, 50
Contact arrangement: 2 pole changeover switch
Electrical phases: 1
Current sensitivity: overcurrent, undercurrent
Current sensed min: 0.1 A, 3 mA, 10 mA
Current sensed max: 1 A, 30 mA, 100 mA
Delay time: 0 s, 0.1 to 30 s
Frequency sampling range: 50 to 60 Hz
Current range: 0.1 to 1 A, 10 to 100 mA, 3 to 30 mA
CT-S Series - Multifunction. The sophisticated CT-S series is ABB's most advanced universal timing relay with innovative connection technology. Multifunction time range preselection and fine adjustment, LEDs for status indication, screw terminals, terminals in double chamber cage design, integrated identification label.
Relay type | Monitoring relay |
Output voltage | 240 V |
Electric current output | 24 A |
Output current type | AC, DC |
Item number | 10123010 |
Manufacturer | ABB |
Category | Relays |
Manufacturer no. | 1SVR730840R0400 |
Release date | 16.11.2018 |
External links |
Relay type | Monitoring relay |
Output voltage | 240 V |
Electric current output | 24 A |
Output current type | AC, DC |
Country of origin | Germany |
Manufacturer commitment | SBTi |
