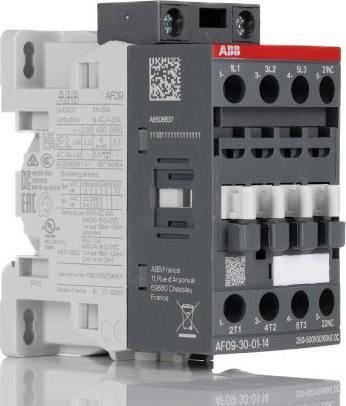

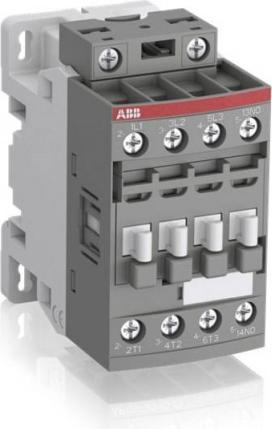

ABB AF09-30-01-14 Power contactor / 250 500 V coil, 3 -pole 3 NO +1 NC / 25 A

Ratings
BrandMore from ABB
Delivered between 5.3.2026 and 19.3.2026
Free shipping starting at 50.–

Product details

The 3-pole AF09 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, lightly inductive, or non-inductive loads. Only 4 coils cover control voltages from 20 to 500 VDC and from 24 to 500 VAC. They feature integrated overvoltage protection and do not require additional suppression components. All integrated or retrofittable normally open auxiliary contacts are designed as mirror contacts according to IEC 60947-5-1 Annex L. Additional accessories such as time delay relays, wiring aids, and interlocking components complete the range.

Key specifications

Scope of delivery
3 NO contacts +1 NC contact
Output current type
AC
Relay type
Power contactor
Electric current output
25 A
Output voltage
250 V
Number of poles
3x
Item number
33603981

General information

Manufacturer
ABB
Category
Relays
Manufacturer no.
1SBL137001R1401 AF09-30-01-14
Release date
17.5.2023
External links
Manufacturer's site (de)

Relay properties

Relay type
Power contactor
Output voltage
250 V
Electric current output
25 A
Output current type
AC
Switching function
Normally open
Number of openers
1x
Number of closers
3x
Number of poles
3x
Max. Switching capacity
5.50 kW
Manufacturer Type
AF09-30-01-14

Smart home features

Smart Home
Not compatible

Origin

Country of origin
France

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
3 NO contacts +1 NC contact

Product dimensions

Length
86 mm
Width
77 mm

30-day right of return
24 Months Warranty (Bring-in)
