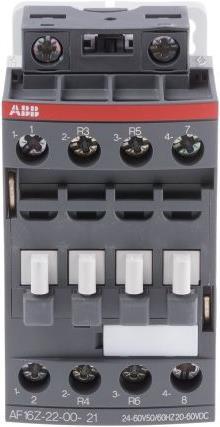

ABB 4Pole Contactor AC1 24/20-60A/DC 2NO2NC

Area: AF Range
Series: AF16Z
Number of Poles: 4
Coil Voltage: 60 V dc
Contact Rated Current: 30 A
Contact Rated Voltage: 690 V ac
Contact Configuration: 2 Normally Closed/2 Normally Open
Number of Auxiliary Contacts: 0
Power: 7.5 kW
Connection Type: Screw Mounting
Width: 45 mm
Maximum Operating Temperature: +70 °C

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1. NF series contactors, 3-pole. AF contactors are AC/DC operated. The AF09-AF38 contactors feature an electronic coil interface for a wide control voltage range Ucmin - Ucmax. Only four coils cover the control voltages from 24 to 500 V ac or 20 to 500 V dc. AF.Z contactors with a Z-coil allow direct control via a PLC output with 24 V dc, 500 mA and ensure lower power consumption of the holding coil. AF.Z contactors withstand short voltage drops and interruptions (according to SEMI F47-0706). AF40-AF96 contactors are primarily used for controlling 3-phase motors and power circuits up to 690 V ac and 220 V dc. These contactors have a block design with 3 main poles. AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V ac, while the AF146 can handle up to 1000 V ac. AF190-AF370 contactors are primarily used for controlling 3-phase motors and power circuits up to 1000 V ac. These contactors also have a block design with 3 main poles. AF contactors feature integrated surge protection and do not require additional surge protection.
