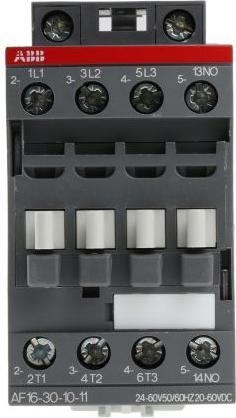

ABB 3Pole Contactor 7.5kW 24-60AC20-60DC NO

Area: AF Range
Series: AF16
Number of Poles: 3
Coil Voltage: 24 V ac/dc
Rated Contact Current: 30 A
Rated Contact Voltage: 690 V ac
Contact Configuration: 3 Normally Open
Number of Auxiliary Contacts: 1
Power: 7.5 kW
Connection Type: Screw Mounting
Length: 86 mm
Maximum Operating Temperature: +60 °C

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1. NF series contactors, 3-pole. AF contactors are AC/DC operated. The AF09-AF38 contactors feature an electronic coil interface for a wide control voltage range Ucmin - Ucmax. Only four coils cover control voltages from 24 to 500 V ac or 20 to 500 V dc. AF.Z contactors with a Z-coil allow direct control via a PLC output with 24 V dc, 500 mA, and ensure lower power consumption of the holding coil. AF.Z contactors withstand short voltage drops and interruptions (according to SEMI F47-0706). AF40-AF96 contactors are primarily used for controlling 3-phase motors and power circuits up to 690 V ac and 220 V dc. These contactors have a block design with 3 main poles. AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V ac, while the AF146 can handle up to 1000 V ac. AF190-AF370 contactors are primarily used for controlling 3-phase motors and power circuits up to 1000 V ac. These contactors also have a block design with 3 main poles. AF contactors feature integrated surge protection and do not require additional surge protection.
