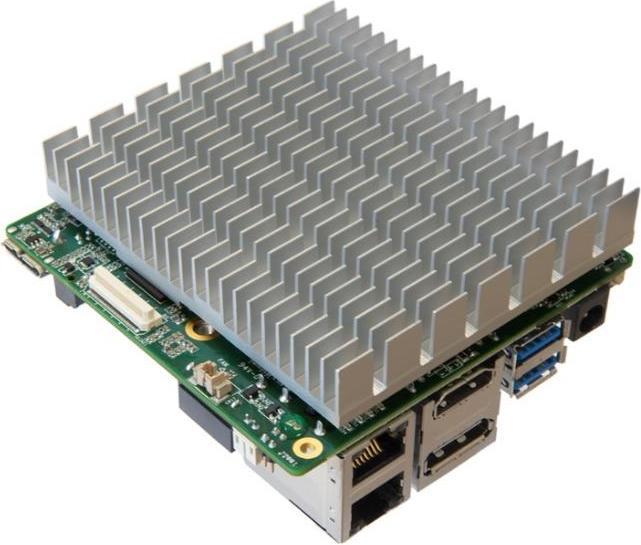

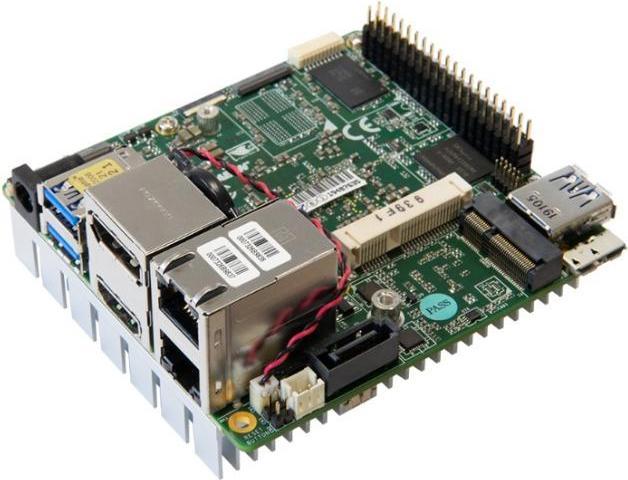

UPS-APLX5F-A20-0432 - UP Squared Board with Intel Atom Quad Core

UP Squared (UP2) is the fastest maker board in the world, featuring high performance and low power consumption from Intel Atom processors. The internal GPU is the new Intel Gen. 9 HD, which supports 4K codec decode and encode for HEVC, H.264, and VP8. Thanks to the Vector Units Image Processing Unit and Precision Timing Management for synchronizing the CPU with I/O and improved determinism, all graphics processing on UP Squared is effortless.

UP Squared comes with 4 GB LPDDR4 and 32 GB eMMC. A 40-pin GP bus gives makers the freedom to build their module. Additionally, there is a 60-pin EXHAT for embedded applications, allowing for further exploration of possibilities. The expansion options for UP2 go even further. The board features native Mini-PCI-e, M.2 2230, and SATA3 integration.

UP Squared supports the AI Core X mPCIe module with Intel Movidius Myriad X. With speeds of up to 105 fps (80 typical) and 1 trillion floating-point operations, adding the AI Core X to UP Squared creates a powerful, compact AI edge solution. UP Squared with AI Core X has proven itself in practice and is used by AAEON partners in applications ranging from license plate recognition to drone-based visual inspections.

The board supports Windows 10, Windows IoT Core, Ubilinux, Ubuntu, Yocto, and Android Nougat. It is up to you to decide which operating system is best suited for your application. Now all you need is an UP Squared to get started on your project!

Processor: Intel Pentium Atom E3940 Processor SoC
Graphics: Intel Gen. 9 HD, supports 4K codec decode and encode for HEVC, H.264, VP8
I/O: 1x HDMI, 1x DP, ...
