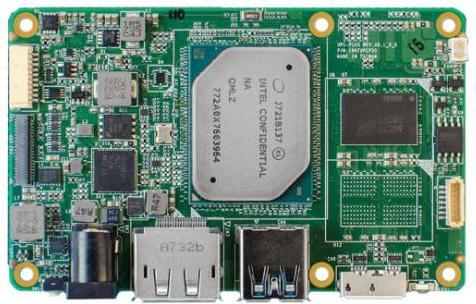

Aaeon UPC-PLUSX5Q-A20-0464 - UP Core Plus E3940 4 GB/64 GB

AAEON UPC-PLUSX5Q-A20-0464 - UP Core Plus E3940 4 GB/64 GB

The UP Core Plus is a modular single-board computer. You can use it standalone or expand it with carrier boards.

The UP Core Plus is based on the Intel Apollo Lake series SoC. You can use it independently as a highly powerful and compact edge device or add carrier boards for various purposes.

It is compatible with a wide range of carrier boards such as:

• Low-speed carrier boards for serial I/O and more
• High-speed carrier boards for MPIeE and more
• Vision Plus with 3x Movidius Myriad 2 and more
• AI Plus with Cyclone 10Gx and more
• Net Plus with 4x Intel i211 LAN ports and more

Package contents:

• 1x UP Core Plus board
• 1x passive heatsink
• 1x RTC battery
• UP board version: UP Core Plus
• SoC: Intel Atom(R) x5-E3940
• Graphics: Intel(R) HD Graphics 500/x5-E3900 series
• System memory: LPDDR4 4 GB
• Storage capacity: 64 GB eMMC
• USB 2.0 ports (header): 2
• USB 3.0 ports: 1x USB 3.0 Host, 1x USB 3.0 OTG
• Connectivity: Wi-Fi 802.11 AC 2T2R + Bluetooth 4.2 (BLE)
• WOL: Yes
• Video output: 1x DP
• Display interface: 1x eDP
• Camera interface: 1x MIPI-CSI (2-lane) + 1x MIPI-CSI (4-lane)
• CEC: No
• Power consumption: 12 V at 5 A DC in 5.5/2.1 mm socket
• Operating temperature: 0°C to 60°C
• RTC: Yes
• PXE: Yes
• Expansion: 2x 100-pin
• Compatible operating systems: Microsoft Windows 10 Full Version, Windows IoT Core, Linux (Ubildu, Ubuntu, Yocto), Android
• Operating humidity: 10% to 80% rF, non-condensing
• Certification: CE/FCC Class A, RoHS compliant, Microsoft Azure certified
• Dimensions: 56.50 x 90 mm
• Net weight (without packaging): 50 grams
• Vertical market: AI.
