Best selling Storage controllers from Adaptec

On this page you’ll find a ranking of the best Storage controllers from Adaptec. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

1. Adaptec SmartRAID 3101-4i: PCI-Ex8 Contr.

The Adaptec SmartRAID 3101-4i is a powerful RAID controller specifically designed for use in server environments and data centers. With a PCIe 3.0 x8 interface and an impressive data transfer rate of up to 12 Gbit/s, this controller offers an optimal solution for managing storage resources. It supports a variety of RAID configurations, including RAID 0, 1, 5, 6, 10, 50, and 60, allowing for flexible adaptation to different storage requirements. The controller is equipped with four internal SAS/SATA ports that ensure high bandwidth and fast data access times. Additionally, the SmartRAID 3101-4i features 1 GB of DDR4 RAM, significantly enhancing performance during random read operations. The support for hot plugging enables easy maintenance and expansion of the system without the need for shutdown. This controller is therefore an ideal choice for businesses seeking a reliable and high-performance storage solution.

- Supports RAID levels 0, 1, 5, 6, 10, 50, 60, 1ADM, and 10ADM
- Maximum IOPS of up to 1.5 million for random read operations
- Hot plugging functionality for easy maintenance
- Optimized for performance-intensive transaction and database applications
- Compatible with 12 Gbps SSDs for maximum bandwidth.

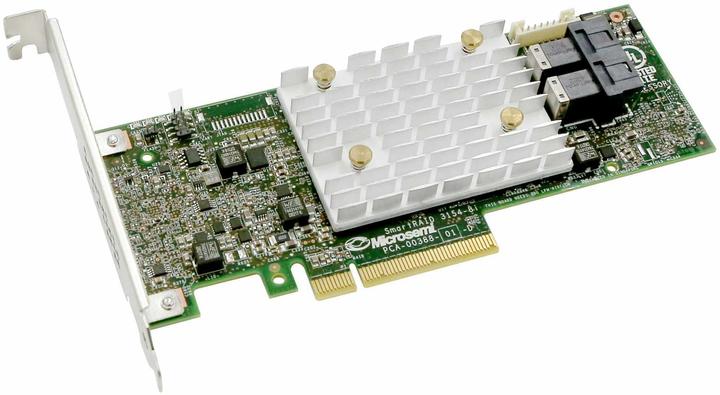

2. Adaptec SmartRAID 3152-8i

The Adaptec SmartRAID 3152-8i is a powerful RAID controller designed for use in demanding storage environments. With the ability to support up to eight channels, this controller allows for the connection of up to 256 storage devices via SATA 6Gb/s and SAS 12Gb/s interfaces. The PCIe 3.0 x8 interface ensures a high data transfer rate of up to 1.2 GB/s, providing efficient data processing and transmission. The controller supports a variety of RAID configurations, including RAID 0, 1, 5, 6, 10, 50, 60, as well as 1ADM and 10ADM, allowing for flexible adaptation to different storage requirements. With an integrated memory of 2 GB DDR4-RAM, the SmartRAID 3152-8i offers improved performance and stability, while hot plugging features enable easy maintenance and expansion of the system. This low-profile controller is ideal for servers and workstations that require a reliable and scalable storage solution.

- Supports up to 256 storage devices across 8 channels
- High data transfer rate of up to 1.2 GB/s
- Variety of RAID configurations for flexible storage solutions
- Integrated 2 GB DDR4-RAM for enhanced performance
- Hot plugging feature for easy maintenance and expansion.

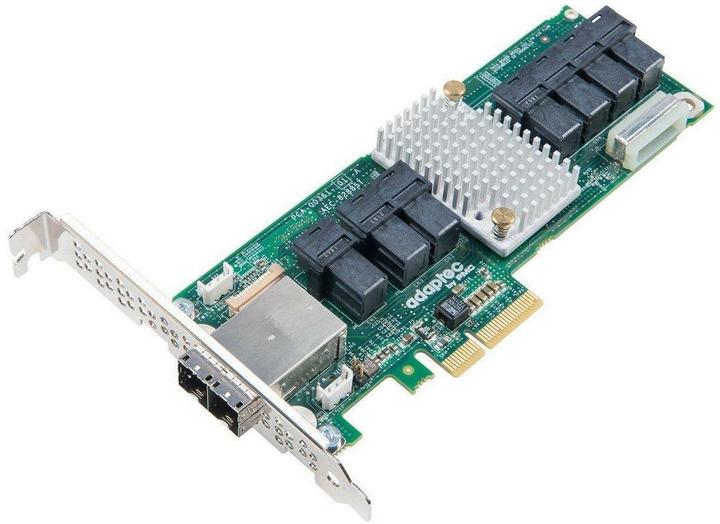

3. Adaptec AEC-82885T 36Port SAS/SATA Expander

Adaptec 36Port SAS Expander, Number of channels: 24 ×, Interface hardware: PCI-Express x8, Data connector side B: SFF-8643, SFF-8644, Number of ports: 36, RAID, Transfer rate: 12 Mbps, Form factor: Low-profile, Full-height, 36 ports (28 internal, 8 external). Requires SAS controller.

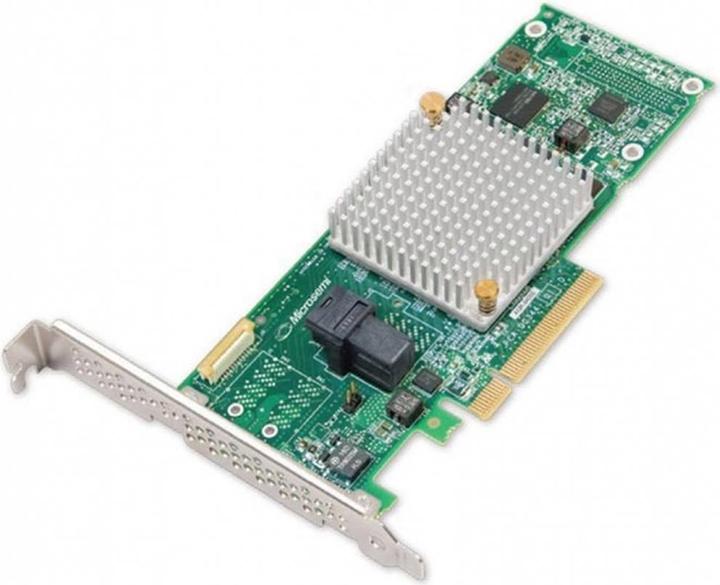

4. Adaptec RAID 8405E: PCI-Ex8 RAID controller

The Adaptec RAID 8405E is a powerful PCI-Express x8 RAID controller specifically designed for use in data centers, IT environments, and standard server applications. With a high data transfer rate of up to 12 Gb/s over the SAS interface, this controller enables efficient management of storage resources. It supports multiple RAID levels, including RAID 0, 1, and 10, ensuring flexible configuration and data security. The controller is equipped with 512 MB of DDR3 RAM and offers hot-plugging functionality, allowing for uninterrupted maintenance. Thanks to its low-profile design, the RAID controller is ideal for compact server enclosures and can be easily integrated into existing systems. Support for various operating systems, including Windows and Linux distributions, makes it a versatile solution for different IT requirements.

- Supports RAID levels 0, 1, and 10 for flexible data storage and security
- Offers hot-plugging functionality for uninterrupted maintenance
- High data transfer rate of up to 12 Gb/s over SAS interface
- Equipped with 512 MB DDR3 RAM for enhanced performance
- Compatible with a variety of operating systems, including Windows and various Linux distributions.

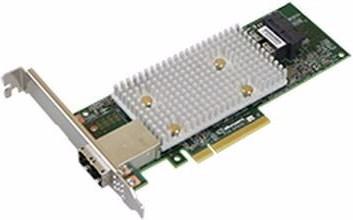

5. Adaptec Microsemi SmartHBA 2100-8i8e

The Microsemi SmartHBA 2100-8i8e is a powerful RAID controller from Adaptec designed for use in demanding storage environments. With a high data transfer rate of up to 12 Gbit/s and support for various RAID levels, including RAID 0, 1, 5, and 10, this controller provides a flexible and reliable solution for managing storage resources. The controller features a PCIe 3.0 x8 interface and allows for the connection of up to 238 hard drives through its 8 channels. The low-profile form factor ensures that the controller can be integrated into compact systems without sacrificing performance. With a mean time between failures (MTBF) of 2,000,000 hours, the SmartHBA 2100-8i8e is designed to ensure high availability and reliability. Additionally, it supports hot plugging, making maintenance and replacement of hard drives during operation easier.

- Supports RAID levels 0, 1, 5, and 10 for flexible storage management
- Maximum data transfer rate of 12 Gbit/s for high performance
- Hot plugging functionality for easy maintenance
- Compatible with various Windows operating systems and server operating systems
- Certified to CE, FCC, UL, and other standards for safety and quality.

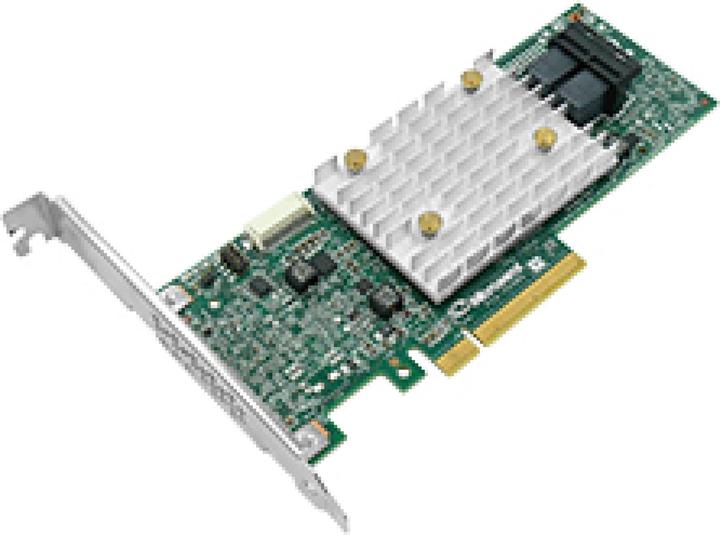

6. Adaptec HBA 1100-8I: PCI-Ex8 HBA controller

The Adaptec HBA 1100-8i is a powerful Host Bus Adapter specifically designed for connecting storage devices via SATA and SAS. With a PCI-Express x8 interface, this controller enables a high data transfer rate of up to 12 Gbit/s. It supports up to 8 channels and can connect a variety of storage peripherals, including hard drives and solid-state drives. The controller is designed in a low-profile form factor, making it ideal for compact systems. Support for Native Command Queuing enhances efficiency in data processing, while broad compatibility with various operating systems, including Windows and Linux, allows for flexible integration into existing systems. The HBA 1100-8i is thus a reliable solution for users who need powerful and versatile storage connectivity.

- Supports up to 8 channels for maximum flexibility in storage connectivity
- High data transfer rate of up to 12 Gbit/s for fast data transfers
- Compatible with a variety of operating systems, including Windows and Linux
- Integrated support for Native Command Queuing to improve efficiency
- Low-profile design for use in compact systems.

7. Adaptec HBA 1100-4I: PCI-Ex8 HBA controller

The Adaptec HBA 1100-4i is a powerful RAID controller designed for use in demanding storage environments. With a PCI-Express x8 interface and a maximum data transfer rate of 12 Gbit/s, this controller offers high bandwidth and low latency, making it ideal for integration into server and storage solutions. The controller supports up to 256 connectable hard drives and allows for the connection of SATA and SAS devices through its internal ports. The HBA 1100-4i is available in a low-profile format, making it suitable for various cases and server configurations. Additionally, the robust Smart Storage Stack ensures reliable performance and compatibility with existing Microsemi Adaptec solutions. With a mean time between failures (MTBF) of 1,400,000 hours, this controller is designed for durability and reliability.

- Maximum data transfer rate of 12 Gbit/s
- Supports up to 256 hard drives
- Low-profile form factor for flexible integration
- Compatible with SATA III and SAS 12 Gbit/s
- Robust Smart Storage Stack for high reliability.

8. Adaptec RAID 7805: PCI-Ex8 RAID controller

The Adaptec RAID 7805 is a powerful PCI-Express x8 RAID controller designed for managing storage solutions in various IT environments. With support for up to eight internal SATA and SAS drives, this controller enables a flexible and scalable storage architecture. The data transfer rate of up to 600 MBps ensures efficient data processing, while the integrated 1024 MB cache size optimizes performance for demanding applications. The RAID 7805 supports a variety of RAID levels, including RAID 0, 1, 5, 6, 10, 50, 1E, and 60, ensuring high availability and data security. Its compatibility with various operating systems, including Microsoft Windows and several Linux distributions, makes it a versatile solution for different IT infrastructures. The low-profile form factor also allows for easy integration into compact systems.

- Supports up to 8 internal SATA and SAS drives
- Data transfer rate of up to 600 MBps
- Integrated 1024 MB cache size for improved performance
- Diverse RAID levels for high availability and data security
- Compatible with multiple operating systems, including Windows and Linux.

9. Adaptec SmartRAID 3154-8i8e: PCI-Ex8 Contr.

The Adaptec SmartRAID 3154-8i8e is a powerful RAID controller designed for use in demanding storage environments. With support for up to eight channels and a data transfer rate of 12 Gbit/s, this controller offers high performance and flexibility for various RAID configurations, including RAID 0, 1, 5, 6, 10, 50, and 60. The controller is compatible with SATA 6Gb/s and SAS 12Gb/s interfaces, making it ideal for modern storage solutions. The form factor is designed as low-profile, allowing for easy integration into compact systems. Additionally, the SmartRAID 3154-8i8e supports hot plugging, meaning drives can be added or removed while the system is running without needing to shut down. This enhances availability and flexibility in dynamic IT environments.

- Supports RAID levels 0, 1, 5, 6, 10, 50, 60
- Hot plugging functionality for increased flexibility
- Integrated 4 GB DDR4 RAM for improved performance
- Compatible with SATA 6Gb/s and SAS 12Gb/s interfaces
- PCIe 3.0 x8 interface for high data transfer rates.

10. Adaptec RAID controller 16 port SATA3/SAS3 SmartHBA-2100-16i

RAID Level: 0/1/10/5. PCI-Express x8. Support for up to 32 drives in RAID arrays. Full-height, low-profile. Support for up to 256 SAS/SATA target devices (a maximum of 238 SSDs/HDDs are supported, with the remainder reserved for expanders and enclosure management).
