Satellite accessories
Quantity discount
CHF10.20 per piece for 2 units
WISI DM02D 5...1300 MHz, Class A (+10 dB)
Terminal strips
Best WISI products in the Satellite accessories category
On this page you'll find a ranking of the best WISI products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

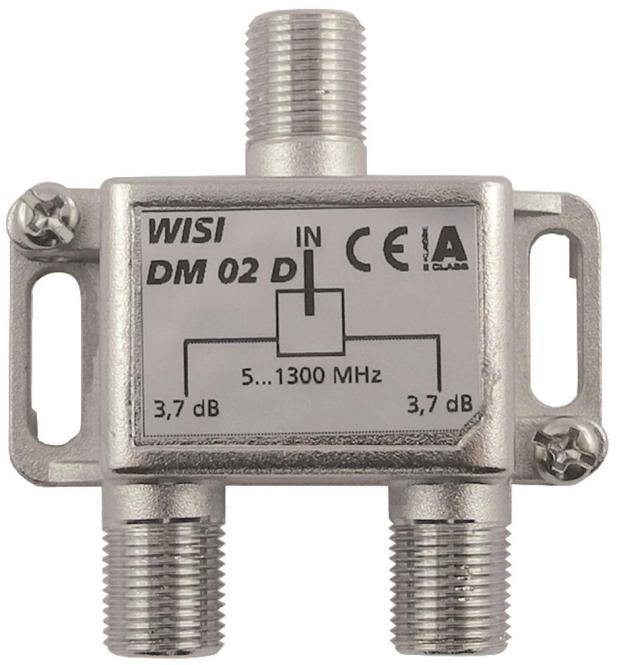

1. WISI DM02D 5...1300 MHz, Class A (+10 dB)
Wisi Splitter 2-way. DM 02 D
Manufacturer: Wisi
Description: 2-way splitter 5-1300MHz 3.7dB Class A
Type: DM 02 D
Connection type: F-Connector
Design: Splitter
Frequency: 5..1300 MHz
Max. branch/splitter attenuation: 4 dB
Number of outputs: 2
Remote powering compatible: no
The DM02 D is a 2-way splitter designed for the symmetrical distribution of cable signals. With a frequency range up to 1.3 GHz, the splitter is well-suited for DOCSIS 3.1 applications. The nickel-bronze coated housing provides very high shielding properties of Class A (+10 dB) and ensures interference-free transmission of signals in the reception and distribution system. Due to the continuously increasing multimedia content, high intermodulation resistance is very important, and the DM02 D meets the requirements according to EN 60728-4.

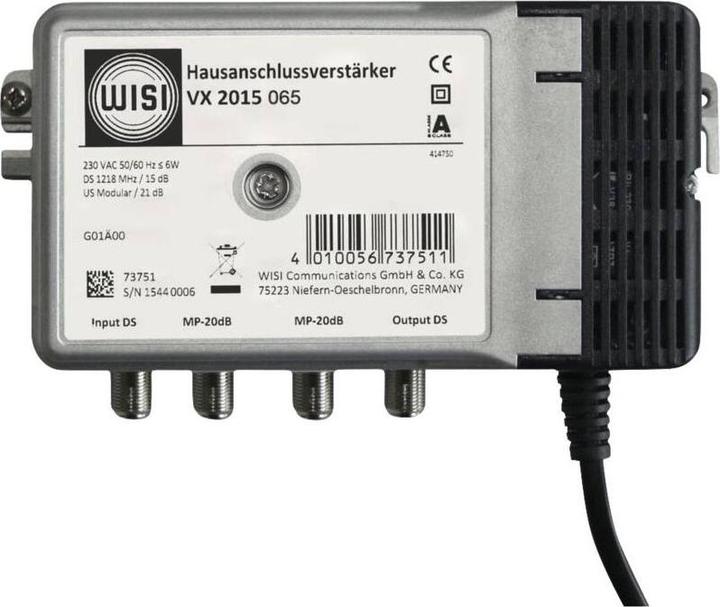

2. WISI VX2015 0650
House connection amplifier, inputs BK: 1, frequency range 87-1.006MHz, 15 dB gain, frequency range return path 5-65MHz, 10 dB gain return path, outputs: 1, return path capable, level control from 0.00-15 dB, line equalizer.
3. WISI Aluminum wall mount
Wisi aluminium wall bracket MN 11 A
Manufacturer: Wisi
Designation: Aluminium wall bracket
Type: MN 11 A
Design: Wall bracket
Pole diameter: 50 mm
Distance referred to: Wall distance: 30 cm
Material: Aluminium
Wisi aluminium wall bracket MN 11 A: For mounting a parabolic reflector. Suitable for every house wall.

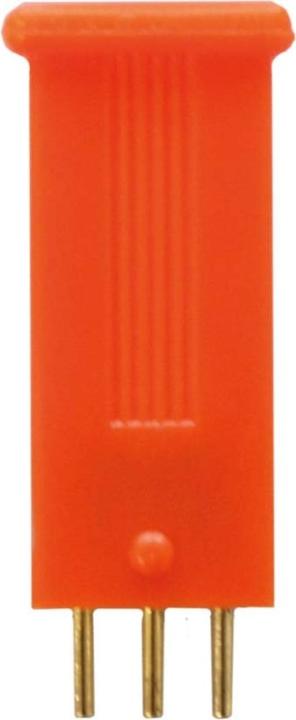

4. WISI Damping pad
Wisi Attenuation Pad XP 0005 (VE10) Manufacturer: Wisi Description: Attenuation Pad 5 dB Type: XP 0005 (VE10) Remote powering compatible: no Max. attenuation: 5 dB Frequency: 5-1006 MHz Wisi Attenuation Pad XP 0005 (VE10): additional details The XP 0005 is an attenuation pad designed for a pass-through attenuation of 5 dB in the frequency range of 5-1006 MHz. EAN: 4010056723538.

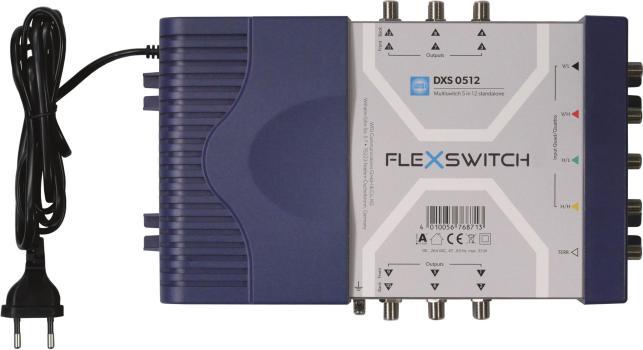

5. WISI DXS0512
The WISI FLEXSWITCH Multiswitch DXS0512 is a powerful satellite accessory designed for the distribution of satellite signals in multi-user systems. With the ability to distribute five inputs to up to twelve outputs, this multiswitch offers a flexible solution for signal distribution in residential and commercial spaces. The DXS0512 is designed as a stand-alone device, allowing for easy installation without additional components. Thanks to its compact design and robust construction, it is ideal for use in various environments. The multiswitch comes with a power supply that ensures reliable energy provision. User-friendliness and high signal quality make the WISI DXS0512 an excellent choice for anyone seeking an efficient and effective solution for satellite distribution.
- Active multiswitch with 5 inputs and 12 outputs
- Easy installation as a stand-alone device
- Includes power supply for reliable energy provision
- Compact design for versatile applications.

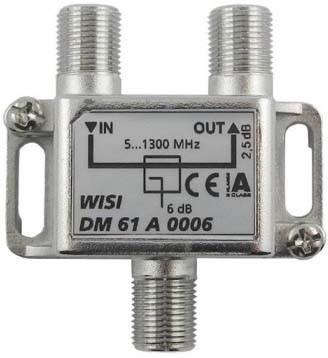

6. WISI Branch
Wisi Splitter 1f. DM 61 A 0006
Manufacturer: Wisi
Designation: Splitter 1f.
Frequency range: 5-1300 MHz
Max. branch/distribution attenuation: 6 dB
Max. through attenuation: 3 dB
Connection type: F-Connector
Number of branches: 1
Number of outputs: 1
Remote powering compatible: no
The DM61A 0006 is a symmetrical 1-way splitter with 6 dB branch attenuation designed for use in distribution systems with a main line. With a frequency range up to 1.3 GHz, the splitter is ideally suited for DOCSIS 3.1 applications. The white bronze-coated housing provides very high shielding properties of class A (+10 dB) and ensures interference-free transmission of signals in the reception and distribution system. Due to the continuously increasing multimedia content, high intermodulation resistance is very important, and the DM61A 0006 meets the requirements according to EN 60728-4.

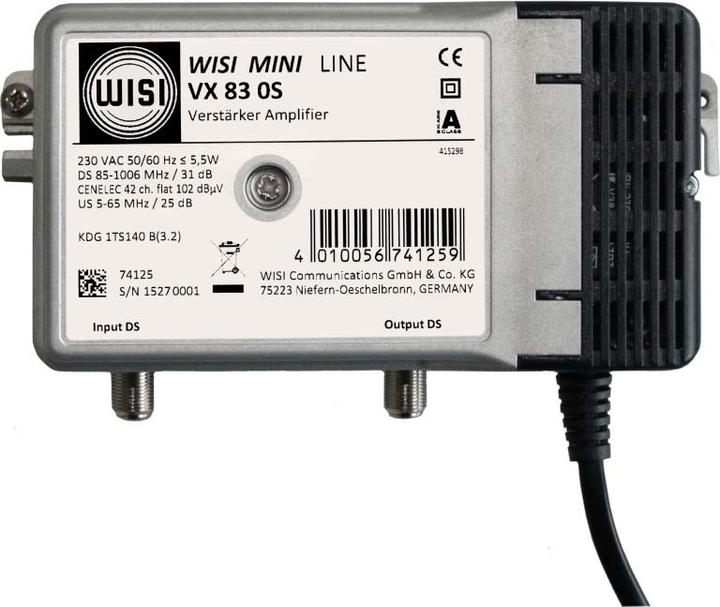

7. WISI VX 83 0S F-Type
Locally fed 1 GHz house connection amplifier according to KDG 1TS140 in mini line housing with hinged cover. The setting elements are designed as variable attenuators (rotary controllers). Functionally identical to the PAD versions VX 8x 0P.
Main features:
- Frequency range (forward path): 85 - 1006 MHz
- Frequency range (return path): 5 - 65 MHz
- Gain (forward path): 31 dB
- Gain (return path): 25 dB
- Noise figure: 6.5 dB
- Product color: Black, Gray
- International protection class (IP code): IP20
- Gain: 25 dB
- Rack mounting: No
- Certification: EN50083-2
Connectors and interfaces:
- Connector: F-Type
- Power source: AC input voltage 230 V
Operating conditions:
- Temperature range in operation: 20 - 55 °C
- Temperature range during storage: 25 - 75 °C
Weight and dimensions:
- Width: 163 mm
- Depth: 50 mm
- Height: 90 mm
Package contents:
- Quantity: 1
Packaging data:
- Packaging width: 166 mm
- Packaging depth: 143 mm
- Packaging height: 50 mm
- Package weight: 726 g.
8. WISI 76895
9. WISI Amplifier VX 81 0S BK 1GHz 18-21dB controller integrated, certified for KDG
Wisi House Connection Amplifier VX 81 0S
Manufacturer: Wisi
Designation: House connection amplifier 21 dB, locally powered
Type: VX 81 0S
Connection type: F-Connector
Number of outputs: 1
Number of inputs: 1
Design: House connection amplifier
Power supply: built-in
Remote powering: no
Equalizer: yes
Level control: yes
Return channel: active
Return channel frequency: 5 - 65 MHz
Return channel gain: 16 dB
VHF gain: 21 dB
UHF gain: 21 dB
Wisi House Connection Amplifier VX 81 0S: additional details
Locally powered 1 GHz house connection amplifier according to KDG 1TS140 in a mini-line housing with a flip cover. The adjustment elements are designed as variable attenuation controllers (rotary controls). Functionally identical to the PAD versions VX 8x 0P.
EAN: 4010056741235.
Satellite accessories
CHF76.90
WISI Amplifier VX 81 0S BK 1GHz 18-21dB controller integrated, certified for KDG
Amplifier
10. WISI Switchblade extension
WISI OL 42 0016 Switchblade extension.
