Best selling Satellite accessories from Telkom Telmor
On this page you'll find a ranking of the best Telkom Telmor products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Telkom Telmor PAR-820 5G protected antenna preamplifier
Features
Installation at a suitable point on the coaxial cable or directly on the antenna or diplexer, low inherent noise, high resistance to intermodulation, low power consumption, and resistance to external electromagnetic fields (solid metal housing). Low power consumption is less than 40 mA. Polish production and development.
Technical data
Operating frequency range: 47-694 MHz
Passband gain: 19 dB +/- 2 dB
Stopband gain: 694-862 MHz; -2 dB/700 MHz; -10 dB/800 MHz
Maximum output level: 104 dBuV
Noise figure: 4.0 dB
Input/output impedance: 75 Ohm / 75 Ohm
Power supply: 5-24 V DC
Power consumption: 40 mA
Input/output connector type: F
The PAR-820 5G protected TV tube preamplifier is used to amplify weak terrestrial TV signals received by a passive antenna. Due to the SAW technology used, the preamplifier removes 5G/LTE signals in most cases without removing DVB-T2 signals.

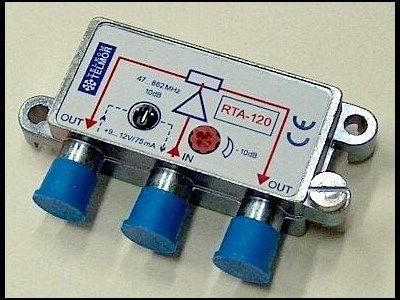

2. Telkom Telmor TV distributor RTA 120-active 2 outputs-TELMOR
The RTA 120-active TV splitter with 2 outputs from TELMOR is a high-quality solution for distributing RTV signals. It features one input and two outputs that ensure reliable signal transmission. With built-in adjustable attenuators, this splitter allows for precise adjustment of signal strength to achieve optimal picture and sound quality. The low noise figure ensures that signal quality is not compromised, while the coaxial power supply from the output side enables flexible installation. The splitter is housed in a robust, stamped metal case that guarantees durability and stability. The ability to switch the supply voltage between input and output provides additional flexibility in usage.
- Built-in adjustable attenuators for signal strength adjustment
- Low noise figure for optimal signal quality
- Coaxial power supply from the output side
- Switchable supply voltage between input and output
- Robust, stamped metal housing for durability.
Satellite accessories
CHF25.90
Telkom Telmor TV distributor RTA 120-active 2 outputs-TELMOR
Terminal strips

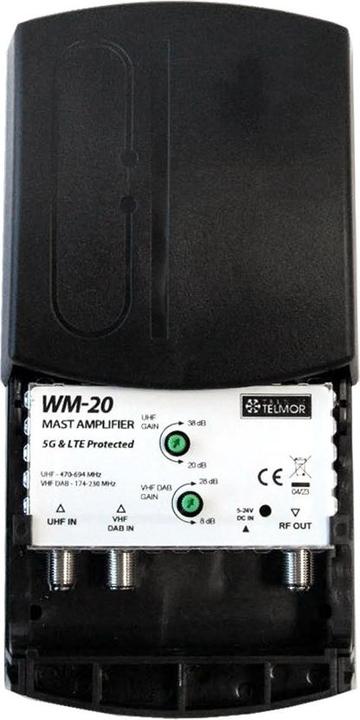

3. Telkom Telmor Mast amplifier WM-20 UHF VHF DVB-T2 5G PROTECTED
Satellite accessories
CHF36.90
Telkom Telmor Mast amplifier WM-20 UHF VHF DVB-T2 5G PROTECTED
Amplifier

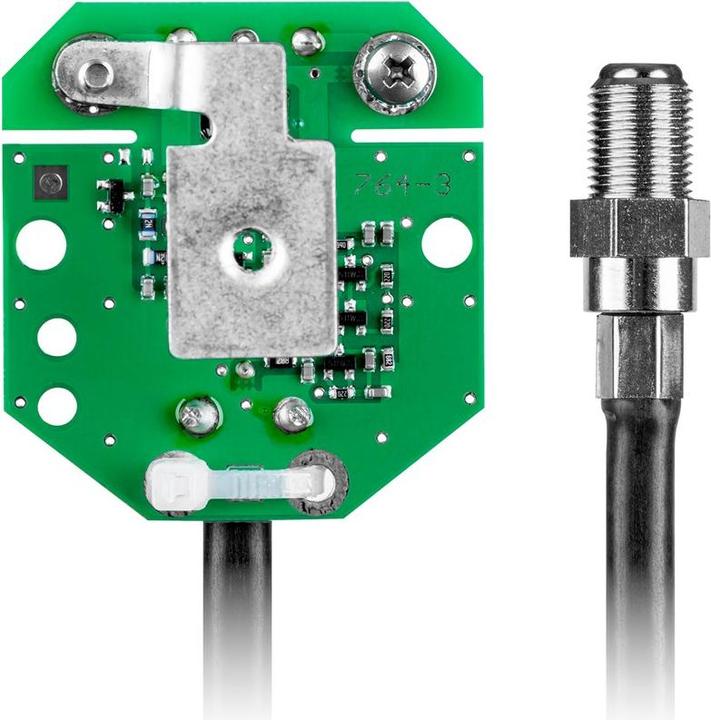

4. Telkom Telmor ASR-PAD 820 Antenna Amplifier
Features
Ability to amplify RTV signals from the classic ASR antenna. Wide range of permissible supply voltages. Low inherent noise. High intermodulation resistance. Low power consumption.
Technical Data
Operating band: FM / VHF / UHF
Operating frequency range: 174-862 MHz
Gain: 20 dB +/- 2 dB
Maximum output signal level: 100 dBuV
Noise figure: 2.5 dB
Input/Output impedance: 300 Ohm / 75 Ohm
Power supply: 5 ... 12 VDC
Current consumption: 30 mA +/- 3 mA
Output connector type: F
Net weight: 0.05 kg
The PAD-820 antenna preamplifier is designed to amplify weak terrestrial TV signals received by the ASR series receiving antenna. The antennas of the ASR series feature a built-in PAD preamplifier. A new one should only be purchased if the original is damaged. The PAD-820 preamplifier should only be used with ASR antennas. The device is powered from the output side via a coaxial cable. Due to the wide range of permissible supply voltages from 5–12 V, the mentioned amplifier can be powered as follows: directly from the receiver or television (the mentioned devices must indicate DC 5 V) or via an external power source splitter.

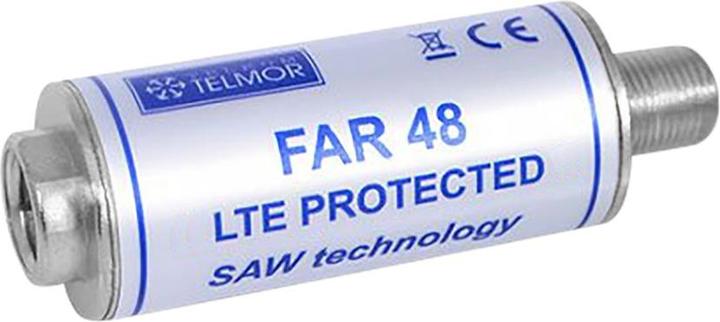

5. Telkom Telmor Filtras 5G FAR 48 LTE SAW LPF 686 MHz
Technical data
Frequency range in passband: 47-694 MHz
Passband rejection: 4 dB
Stopband rejection: >18 dB / 698-718 MHz; >26 dB / 718-725 MHz; >30 dB / 725-2600 MHz
DC passband: No
Input impedance: 75 Ohm
Output impedance: 75 Ohm
Input plug type: F jack
Output plug type: F plug
Operating temperature: -20 to 50 degrees Celsius
Dimensions: 64 mm (length) x 20 mm (diameter)
Weight: 0.045 kg
General
FAR 48 is an LTE low-pass filter designed to remove interfering signals in the frequency range above 694 MHz, including LTE 700 and 5G signals. The filter transmits signals in the frequency range of 47-694 MHz, which corresponds to TV and radio channels from the FM, VHF, and UHF bands. The filter is intended for indoor use.

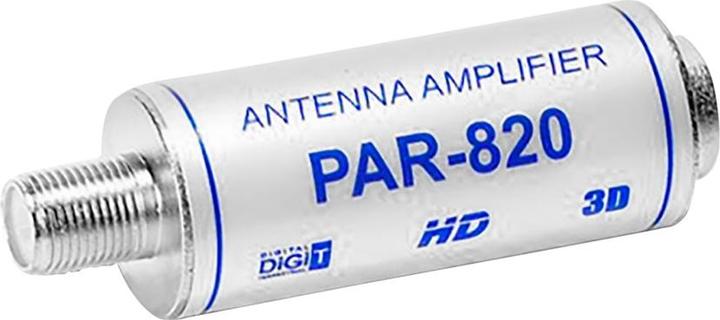

6. Telkom Telmor PAR-820 Antenna Preamplifier
Features
Ability to amplify RTV signals from a passive antenna, no disassembly required. Wide range of permissible supply voltages. Installation at a suitable location. The coaxial cable has low inherent noise, high resistance to intermodulation, low power consumption, and resistance to external electromagnetic fields. The robust metal housing of the PAR-820 is designed to amplify weak terrestrial television signals received by passive receiving antennas. The shape of the preamplifier housing allows for installation at any point along the coaxial antenna cable. This means that the preamplifier can be used with an existing antenna without the need to remove the antenna. Since the signal-to-noise ratio deteriorates with distance from the antenna, it is advisable to place the preamplifier as close to the antenna as possible. The tube preamplifier PAR-820 is designed for indoor use. The device is powered from the output side via a coaxial cable. Due to the wide range of permissible supply voltages from +5 to +24 V, the respective amplifier can be powered either directly through a receiver or television (these devices must be able to output +5 V) or through an external power source with a power separator (with power supply).
Technical Data
Operating Band: FM/VHF/UHF
Operating Frequency Range: 88–862 MHz
Gain: 19 dB +/- 2 dB
Gain for Operating Band Limits: Not specified.
Maximum Output Level: 100 dBuV.
Noise Figure: 2.5 dB.
Input/Output Impedance: 75 Ohm/75 Ohm.
Power Supply: 5–24 V DC.
Current: 28+/3 mA.
Input/Output Connector Type: F-plug/F-socket
Product Dimensions: 20 (diameter) x 62 mm
Net Weight: 0.05 kg
Packaging: Blister.
