Best Televes products in the Satellite accessories category
On this page you'll find a ranking of the best Televes products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

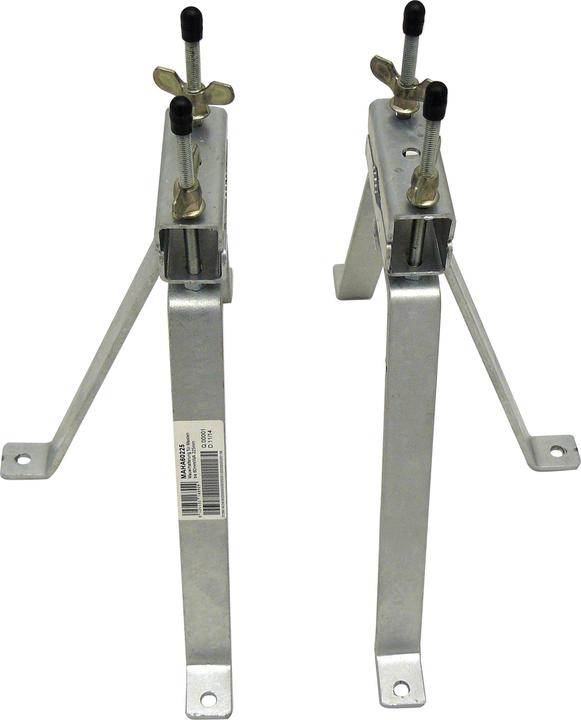

1. Televes Wall bracket Wa:22.5cm Pipe diam. w.60mm (1pair) MAHA60225
Televes pole mount MAHA 60225.

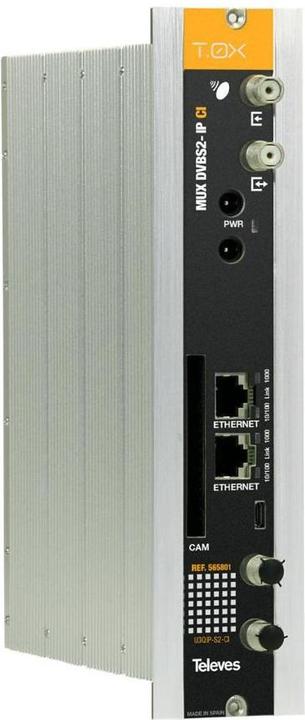

2. Televes U3QIP-S2-CI T-0X streamer 3 x DVB-S2 in IP with CI cable preparation system
Streamer that generates IP output channels from the available services of three different SAT transponders.
These can be extracted from two different satellites (two independent SAT inputs) or from one satellite using the loop-through output from the headend.
The encrypted channels are decrypted via the CI interface and the corresponding (standard or professional) module.
The entire system consists of a power supply and several IP streamer modules, depending on the number of services to be distributed.
Highlights:
- Up to 32 IP streams SPTS (FTA services)
- Supports DiSEqC 1.0
- Service decryption after inserting the corresponding CA module including card
- Access to the headend configuration via a self-created WiFi network (using the kit with reference 216802)
- Internal switch for daisy-chaining the IP output with multiple modules
- Signaling of services from another external signal source, e.g., from a HE-21 headend
- Device monitoring with the basic SNMP protocol to display parameters over the internet (network information, device power-on times, etc.)
- Embedded web user interface for module configuration
- Configuration of the entire headend, with one of the modules selected as master
- Automatic detection of the modules connected to the master
- Clone function for replication and faster setup of typical installations
- UDP or RTP output protocol for even greater compatibility with IPTV systems
- Control indicators for the headend: module temperature, CAM status ...
Features:
- Selection of services among the three input transponders to be distributed in streaming
- Includes EPG information (Electronic Program Guide) in the output data stream
- Provides data flow information for each service to estimate the overall data output flow of the module.
Satellite accessories
CHF1319.–
Televes U3QIP-S2-CI T-0X streamer 3 x DVB-S2 in IP with CI cable preparation system
3. Televes Multiswitch 22,90cm (9") 12 cast NEVO cascadable o.NT MS912C (MS912C)
Multi-switch with 9 inputs (1 terrestrial and 8 satellite) and 12 subscriber outputs. Very flexible: can be used as a single or cascade switch thanks to switchable terminating resistors.
Highlights
- Attenuation switch 10dB for the subscribers (ON = low gain / OFF = high gain) for the satellite signal
- Remote power supply via VL
- DC feed-through between inputs and cascade outputs
- Reverse channel compatible for CoaxData systems
- European quality and design, 100% manufactured and tested at Televes
Features
- Very compact design
- Cast housing developed and manufactured at Televes
- Inputs and loop-through outputs color-coded
- With ECO mode: subscriber-dependent power consumption
- Switching between cascade and single switch (terminating resistors can be switched on)
- 12 V power supply
- Low power consumption, therefore economical operation (receiver powered)
Technical data
Number of inputs: 9
Number of cascade outputs: 9
Number of subscriber outputs: 12
Frequency range terrestrial: 88 ... 862 MHz
Frequency range satellite: 950 ... 2400 MHz
Input level terrestrial: 90 dBμV
Input level satellite: 112 dBμV
Pass-through attenuation terrestrial: 4 dB
Pass-through attenuation satellite: 3.5 ... 10 dB
Subscriber attenuation 1...8 terrestrial: 4 dB
Subscriber attenuation 1...8 satellite: 0 dB
Subscriber attenuation 9...16 terrestrial: 6 dB
Subscriber attenuation 9...16 satellite: 4 dB
Decoupling H/V: > 30 dB
TN decoupling: > 25 dB
Power supply: 12 Vdc
Max. current consumption (PSU - low gain): 85 mA
Max. current consumption (PSU - high gain): 155 mA
Max. current consumption (STB): 35 mA
Operating temperature: -5 ... 45 °C
Protection index: 20
Physical data
Net weight: 1,160 g
Gross weight: 1,160 g
Width: 206 mm
Height: 255 mm
Depth: 29 mm
Main product weight: 1,152 g.
Satellite accessories
CHF214.–
Televes Multiswitch 22,90cm (9") 12 cast NEVO cascadable o.NT MS912C (MS912C)
Multi switch
4. Televes Amplifier MSV 44M SAT ZF
Televes amplifier MSV 44M SAT ZF for MULTIMAT/SATRIX cast iron (MSV44M).
5. Televes Optical receiver T-0X UOE 1216
Televes Optical Receiver T-0X UOE 1216
Manufacturer: Televes
Name: Optical Receiver T-0X
Frequency Range: 47-2400 MHz
Type: UOE 1216
Output Signal: Cable Digital TV (QAM, DVB-C)
Details:
Optical input between 1200 - 1600 nm, input level between -10 and 5 dBm, RF output with gain. 114 dBµV output level in terrestrial range and 117 dBµV. Equipped with a voltage-free link for a melding when the optical power is too low. Power supply included.
EAN: 8424450147603.

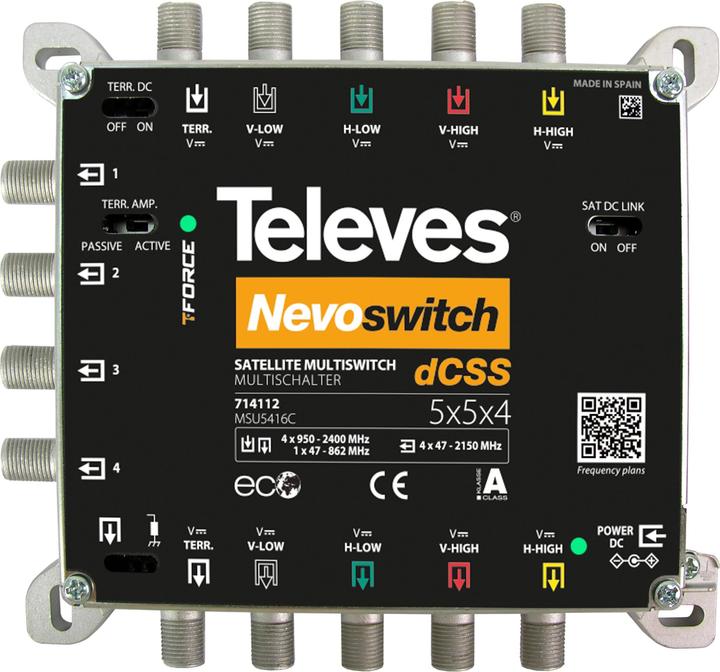

6. Televes Multiswitch 10.20cm (4") 2x16 NEVO-SCR dCSS kaska. MSU5416C
Cascadable single-cable multi-switch with 5 inputs (1 x terrestrial passive and 4 x SAT), 4 dCSS/dSCR subscriber outputs that support both SCR I (EN50494) and SCR II (EN 50607) standards, as well as "Legacy Mode." This allows for the operation of both new and existing receivers.
Dynamic mode: All transponders from a satellite can be received. Up to 16 subscribers (according to EN 506+D1607) can be supplied per output via a single cable.
With the exclusive DCFLEX functionality, the multi-switch has the flexibility to be powered from anywhere in the system. This allows the installer to choose the best power supply option for the specific installation. A switch (DC LINK) can be set to determine whether the multi-switch is isolated from the power supply of a cascading system or not.
Highlights:
- Up to 16 subscribers per output
- With DCFLEX functionality, it can be powered in 3 ways: via a power supply or through the SAT lines
- Easy to integrate into an existing installation. By turning off the SAT DC LINK, the multi-switch is locally powered when the power supply is connected, without burdening the cascade
- Increased safety for receivers when the multi-switches are disconnected from the power supply of the cascade
- The switch TERR.DC ON disconnects or connects the power supply from the cascade in the terrestrial path. This can be useful for powering a mast amplifier or a BOSS antenna, as well as for the terrestrial branches of other multi-switches in a cascade
- With a power consumption of 10V to 20V, the dCSS multi-switches are compatible with many systems available on the market
- Low power consumption, resulting in economical operation (receiver powered)
- The new dCSS NevoSwitch multi-switches also incorporate technology developed by Televes...
Satellite accessories
−32%
CHF279.– was CHF411.–
Televes Multiswitch 10.20cm (4") 2x16 NEVO-SCR dCSS kaska. MSU5416C
Multi switch
7. Televes Multiswitch 12,70cm (5") 2x16 NEVO-SCR dCSS kaska. MSU5216C
Cascadable single-cable multi-switch with 5 inputs (1 x terrestrial passive and 4 x SAT), 2 dCSS/dSCR subscriber outputs that support the SCR I (EN50494) and SCR II (EN 50607) standards as well as "Legacy Mode." This allows both new and existing receivers to be operated.
Dynamic mode: All transponders from a satellite can be received. Up to 16 subscribers (according to EN 506+D1607) can be supplied per output via a single cable.
With the exclusive DCFLEX functionality, the multi-switch has the flexibility to be powered from anywhere in the system. This allows the installer to choose the best power supply option for the specific installation. A switch (DC LINK) can be set to determine whether the multi-switch is isolated from the power supply of a cascading system or not.
Highlights
- 2 outputs for up to 16 subscribers per output
- DCFLEX functionality
- Can be powered in 3 ways: via a power supply, through the SAT lines, or through the receiver outputs
- Easy to integrate into an existing installation. By turning off the SAT DC LINK, the multi-switch is powered locally (or via the STB) when the power supply is connected, without burdening the cascade
- Increased safety for the receivers when the multi-switches are disconnected from the power supply of the cascade (RECEIVER POWER OFF). When the switch is ON, the connected receivers provide power to the single-cable multi-switch
- The switch TERR.DC ON disconnects or connects the power supply from the cascade in the terrestrial path. This can be useful for powering a mast amplifier or a BOSS antenna, as well as for the terrestrial branches of other multi-switches in a cascade
- With a power consumption of 10V to 20V, the dCSS multi-switches are compatible with many on the market.
Satellite accessories
CHF219.–
Televes Multiswitch 12,70cm (5") 2x16 NEVO-SCR dCSS kaska. MSU5216C
Multi switch

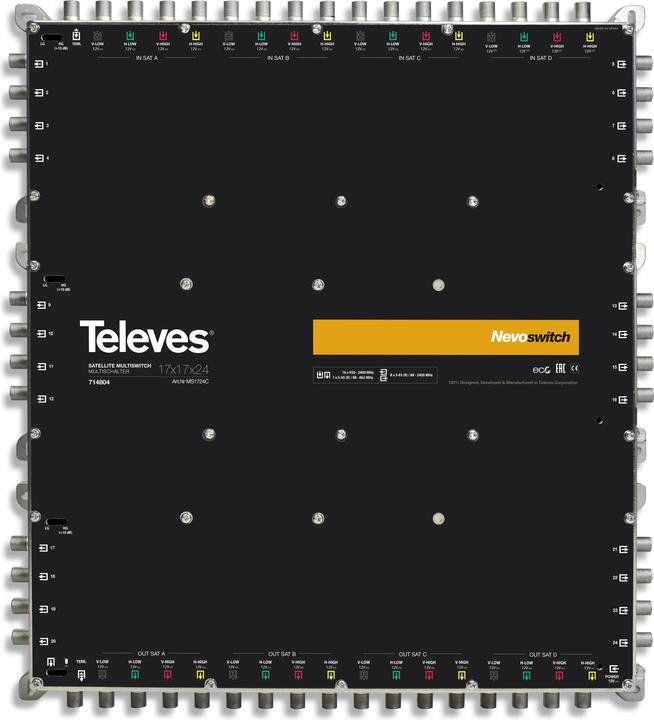

8. Televes Multiswitch
Televes multiswitch 17 in 24 cast MS1724C
Manufacturer: Televes
Designation: Multiswitch 17 in 24 Cast NEVO
Type: MS1724C
Subscriber connections: 24
Number of inputs: 17
Terrestrial input: Active
Cascadable: Yes
Number of master outputs: 17
Max. current consumption: 310 mA
Power supply: Without
Control signal: 14/18 V, DiSEqC, 0/22 kHz
LNB supply: 12 V
22 kHz generator: No
More details: Nevo multiswitch 17 in 24 in cast housing, cascadable, switchable terminating resistors in each single and cascade switch, switch 10 dB input gain for all SAT inputs switchable on/off.
Pass-through attenuation:
- SAT: 9 dB
- Terr.: 6 dB
- SAT TN attenuation 1-8/9-16/17-24/25-32 = 950 MHz 9/12/15/- and 2400 MHz 4/7/10/- dB
- Terr. TN attenuation 1-8/9-16/17-24/25-32 = 3/5/8/-
- RK TN attenuation: 40 dB
DC pass-through on vertical low and terrestrial, max. input level SAT 102 / Terr. 104 dB micro-volt.
Power supply unit required (MS-NT1228), current consumption power supply unit 310 mA, SAT receiver 33 mA.
Dimensions (WxHxD): 350 x 386 x 30 mm
EAN: 8424450173268.
9. Televes PPS2000 Professional
The PPS2000 Profi from Televes is a comprehensive compression connector set specifically designed for the installation and maintenance of satellite systems. It includes a variety of tools and components necessary for the efficient processing of coaxial cables. The practical case contains, among other items, a compression crimping tool, a wire stripper, numerous compression connectors, and sealing sleeves for LNBs. This set is ideal for professionals and technology enthusiasts who value quality and reliability. The use of high-quality materials and precise workmanship ensures optimal signal transmission and durability of the connections. The PPS2000 Profi is therefore a valuable addition to any workshop or for mobile use.
- Compression crimping tool FIPW2000 for precise connections
- Wire stripper FCS10 for easy cable preparation
- 50 F compression connectors FPS2000 for versatile applications
- 10 sealing sleeves FPT10 to ensure tightness
- Special open-end wrench IBI11N for added flexibility during installation.
10. Televes MASCH50G - Pole clamp with double hole
Televes pole clamp with double hole, galvanized for the stable fastening of an antenna pole.
- For a pole diameter of 50 mm
- Screws included.
Satellite accessories
CHF14.70
Televes MASCH50G - Pole clamp with double hole
Mirrors + antennas Mounting
