Best selling Satellite accessories from Niedax
On this page you’ll find a ranking of the best Satellite accessories from Niedax. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Niedax Mounting bracket
Mounting bracket, lower part of the mounting bracket with two clamping pieces including flat round head screws. The attachment of the machine installation pipes is done via the clamping of the clamping pieces. Elongated holes in the flanges of the lower part allow for flexible clamping options. Usable for: machine installation pipe MI 60, machine installation pipe MIG 60, installation pipe connection MIA 60. Dimensions (approx. measurements) Length L x Width B: 525 x 120 mm for pipe diameter: 60 mm, elongated hole: 9 x 18 mm, center distance: 50 mm. Material: steel, hot-dip galvanized according to DIN EN ISO 1461.
2. Niedax Fastening set

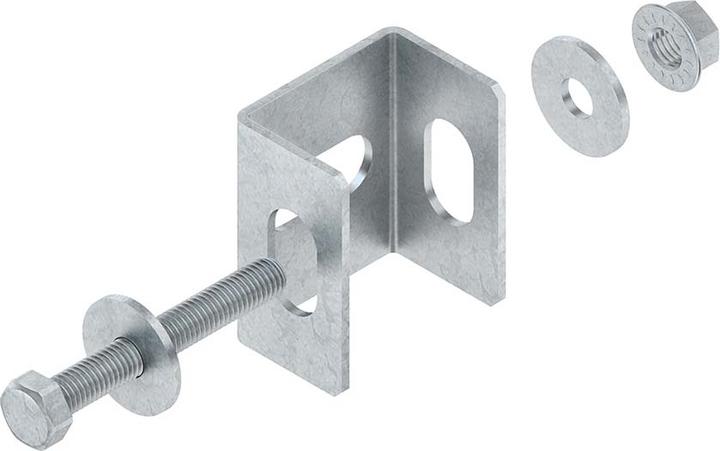

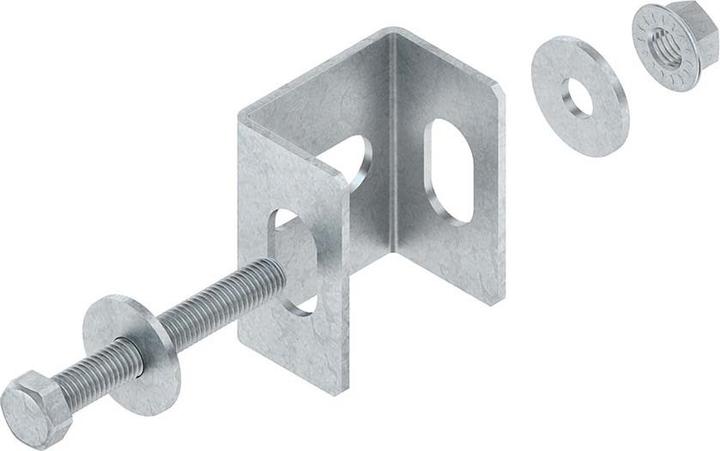

Niedax fixing set STVDP 30.43 S
Manufacturer: Niedax
Designation: Fixing set strip galvanised
Type: STVDP 30.43 S
Material: Stainless steel
Pickled: No
Material grade: Other
Surface protection: Strip galvanised
Niedax fixing set STVDP 30.43 S: further details
Fastening set for wall-mounted and free-standing access deck panelling on access decks for additional requirements. Set consists of: 1 SKM 8X60 F DIN 933, 1 SMF M8 F DIN 1661, 2 UGM 8 F DIN 7093-1, 1 spacer STVDP 30.43 S U for wall-mounted access deck panelling: STVWA... on access decks STUC 45/..., STUC 60/... and STIC 86/... for free-standing mounted access route panelling: STVFA... on access routes STUC 45/..., STUC 60/... and STIC 86/...
Material: Steel, strip galvanised to DIN EN 10346
EAN: 4013339055418.
3. Niedax Cantilever

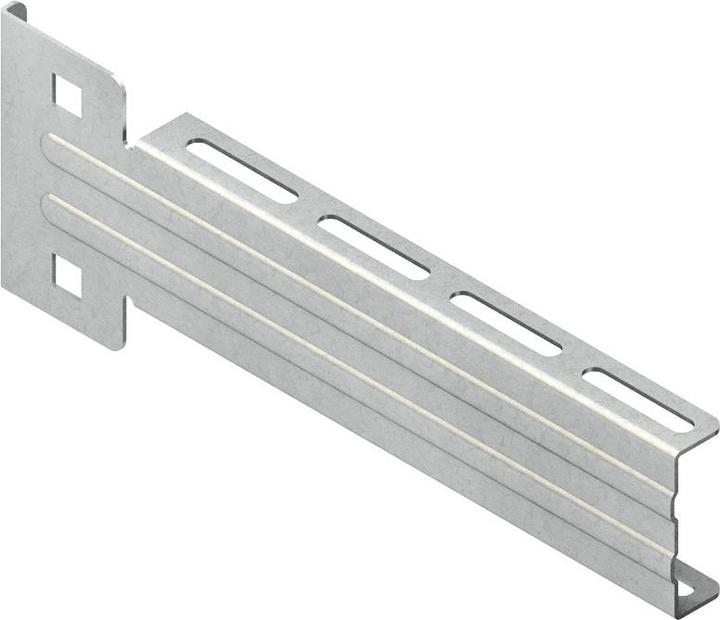

Niedax Arm KTUM 150 F
Manufacturer: Niedax
Description: Hot-dip galvanized arm
Type: KTUM 150 F
Length: 155 mm
Width: 20 mm
Height: 73 mm
Suitable for cable tray widths: 50 - 150 mm
Design: Vertical arm
Angle: 90 °
Load capacity: 1.2 kN
Suitable for function maintenance: no
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized
Niedax Arm KTUM 150 F: additional details
Medium-duty arm for vertical mounting, including hot-dip galvanized proportionate fastening accessories. The load capacity specifications apply only with adequate anchoring to the supporting substrate or when installed according to regulations on vertical arms. The current load values refer to the fastening of the arm to the vertical arm with only one screw. VDE certified!
Suitable for vertical arm: HUF 50 / HDUF 50 /
Dimensions (approximate measurements)
Support height H: 73 mm
Support length L: 155 mm
Load capacity F at L/2: 1.2 kN tested in the system
Material of the arm: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339968503.
4. Niedax Wall bracket

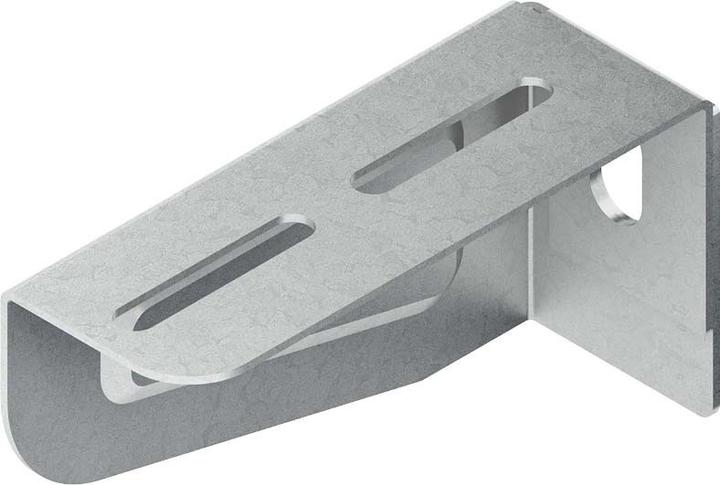

The wall bracket from Niedax is a medium-duty accessory for wall and hanging pole installation, characterized by its robust construction made of stainless steel (material no. 1.4571, AISI 316Ti). It comes with proportional mounting accessories that ensure a secure and compliant installation. The load capacity of the bracket is guaranteed with proper anchoring to the supporting substrate and has been tested within the system. The wall bracket is VDE certified, highlighting its quality and safety. With a mounting height of 60 mm and a mounting length of 110 mm, it is suitable for various applications in the area of satellite installation.
- VDE certified for enhanced safety
- Robust stainless steel construction for durability
- Load capacity of 1.2 kN with proper installation
- Includes mounting accessories for easy installation.
5. Niedax KTAM 300 F

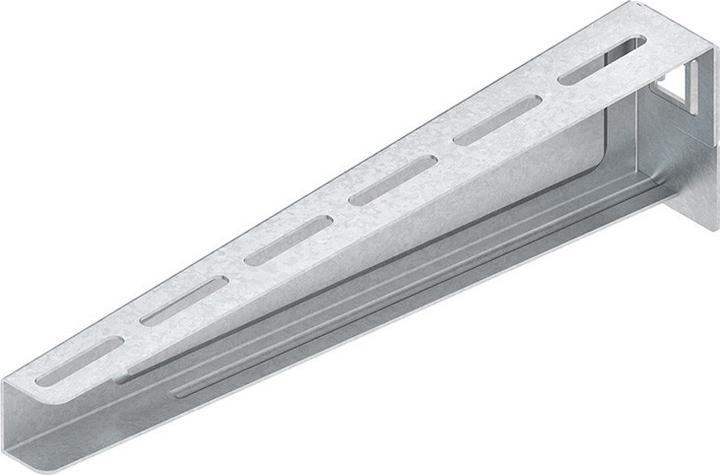

Niedax Hanging Arm and Wall Bracket KTAM 300 F
Manufacturer: Niedax
Description: Hanging Arm and Wall Bracket
Dimensions: 82 x 320 mm
Maximum Safe Working Load according to IEC 61537: 1500 N
Suitable for Cable Tray Width: 50 to 300 mm
Design: Wall and Arm Bracket
Angle: 90 °
Suitable for Function Maintenance: no
Material: Steel
Surface Protection: Hot-dip galvanized
Operating Temperature: -20 to 120 °C
Additional Details:
Medium-duty hanging arm and wall bracket for wall and hanging arm installation, including hot-dip galvanized mounting accessories. The load capacity specifications apply only with adequate anchoring to the supporting substrate or in accordance with regulations for installations on hanging arms. VDE certified!
Dimensions (approximate):
Support Height H: 82 mm
Support Length L: 320 mm
Load Capacity F at L/2: 1.5 kN tested in the system
Material of Bracket: Steel, hot-dip galvanized according to DIN EN ISO 1461.
6. Niedax Rdhfs 9 Vzl

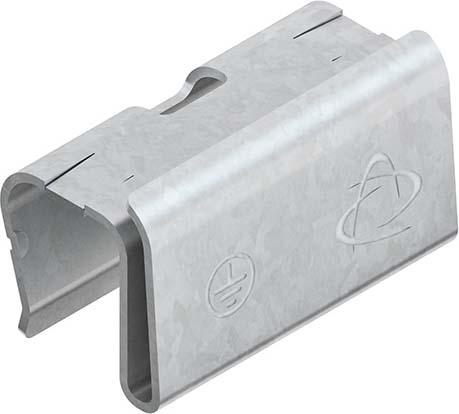

Niedax Cover Retaining Spring RDHFS 9 VZL
Manufacturer: Niedax
Description: Cover retaining spring, galvanically zinc-coated
Type: RDHFS 9 VZL
Suitable for grid channels: no
Suitable for cable ladders: no
Suitable for cable trays: yes
Material: Steel
Stainless steel, pickled: no
Material quality: other
Surface protection: galvanically/electrolytically zinc-coated
The Niedax Cover Retaining Spring RDHFS 9 VZL provides a form-fitting and non-removable seat on the cover. In the mounted state, especially with slip-resistant covers, it prevents shifting in the horizontal and vertical direction (150 N). The cover retaining springs allow for one-sided opening of the cover up to a maximum of 20°, thus enabling additional retrofitting or inspection of cables.
For fastening, a clip/clamp function is used to secure the covers on wall-mounted and freestanding riser tray enclosures. They are also suitable for heavy cable tray covers with and without checker plate support, as well as for angle-adjustable fittings from 0° to 90° in walkable cable tray systems.
When fastening, it is important to maintain a minimum distance of 50 mm from the beginning/end of the cover. The special shape and contour ensure potential equalization. Due to external influences such as wind loads, use in outdoor areas is only possible with additional securing (self-tapping screws, steel band, etc.).
For riser tray enclosures: STVW..., STVWA..., STVFA...
For walkable cable trays: RDS..., RDRS...-2.0, RDSRSL..., RDSRS...
For angle-adjustable fittings 0°-90°: RBAVDS..., RBAVDSRS...
Requirements:
Cover short pieces < 200 mm: at least 2 cover retaining springs
Cover short pieces = 200 - 1000 mm: at least 4 cover retaining springs
Cover pieces = 1000 mm: at least 6 cover retaining springs
Dimensions (approximate):
Length L: 30 mm
Material: Steel, galvanically zinc-coated and passivated, surface layer sealed
EAN: 4013339182985.
7. Niedax Suspension bracket/wall bracket

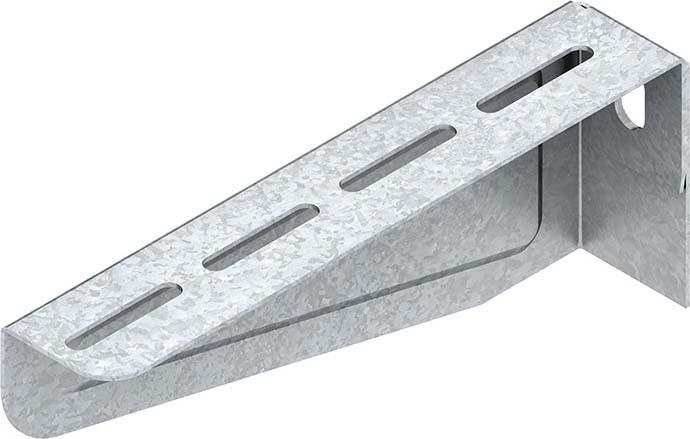

The hanging pole/wall bracket from Niedax is a reliable accessory for the installation of satellite systems. It is designed for wall and hanging pole mounting, providing a robust solution for installation. The bracket is made of high-quality steel and is hot-dip galvanized, making it particularly resistant to corrosion. The load capacity of up to 1.2 kN has been tested in the system, ensuring safe application, provided that the installation is carried out according to regulations and with adequate anchoring. The bracket is VDE certified, guaranteeing additional safety and quality. With a support height of 80 mm and a support length of 260 mm, it is versatile and suitable for various installation requirements.
- VDE certified for additional safety
- Made of hot-dip galvanized steel according to DIN EN ISO 1461
- Load capacity of up to 1.2 kN with proper installation.
