Niedax Cantilever
Only 4 pieces in stock at third-party supplier
Product details
Niedax Arm KTUM 150 F
Manufacturer: Niedax
Description: Hot-dip galvanized arm
Type: KTUM 150 F
Length: 155 mm
Width: 20 mm
Height: 73 mm
Suitable for cable tray widths: 50 - 150 mm
Design: Vertical arm
Angle: 90 °
Load capacity: 1.2 kN
Suitable for function maintenance: no
Material: Steel
Material quality: other
Surface protection: hot-dip galvanized
Niedax Arm KTUM 150 F: additional details
Medium-duty arm for vertical mounting, including hot-dip galvanized proportionate fastening accessories. The load capacity specifications apply only with adequate anchoring to the supporting substrate or when installed according to regulations on vertical arms. The current load values refer to the fastening of the arm to the vertical arm with only one screw. VDE certified!
Suitable for vertical arm: HUF 50 / HDUF 50 /

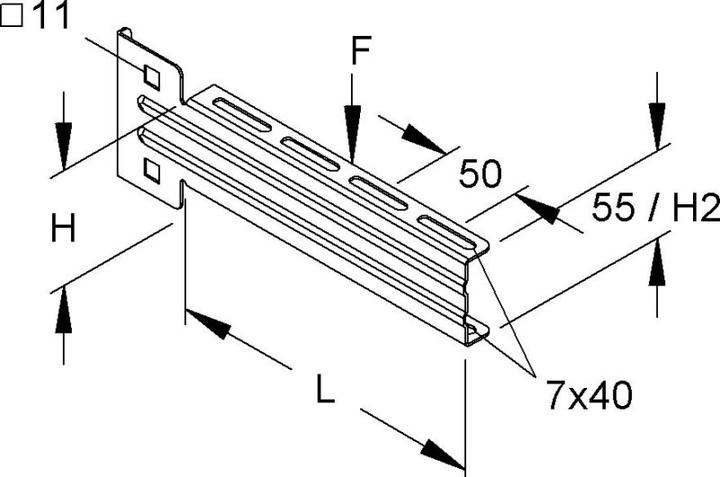

Dimensions (approximate measurements)
Support height H: 73 mm
Support length L: 155 mm
Load capacity F at L/2: 1.2 kN tested in the system
Material of the arm: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339968503.
