Best selling Routers from Alfa Network
This page always stays fresh and updates automatically.
1. Alfa Network WISP-NR - 802.11n WISP Indoor Router (24V Passive PoE for 1x(LAN+WAN)
Alfa Network - 802.11n WISP Indoor Router (24V Passive PoE for 1x LAN + WAN)
The WISP-NR is a unique wireless gateway designed specifically for wireless ISPs. It supports Wi-Fi 802.11n with 300 Mbps and provides a passive 24VDC PoE output through the WAN and LAN1 ports. WISP installers can easily operate outdoor AP/CPE without the need for an additional power source. Thanks to the 802.11n 300 Mbps 2.4 GHz technology, users can connect their mobile devices or laptops to enjoy high-speed internet access.
Compatible with:
Ubiquiti, Mikrotik, EnGenius, TP-Link, Alfa, and other passive 24V PoE devices.
Package contents:
WISP-NR, 24V / 1A power supply, 2x 5dBi detachable antennas, QIG.
2. Alfa Network 5G WiFi 6 Router (Metal)
AX5GRM Metal
The AX5GRM Metal 5GNR Wi-Fi 6 router is designed for users who demand stability and speed. It supports the fastest internet speeds and unmatched efficiency, with a built-in Nano SIM slot and detachable antennas, ensuring flexible and customized coverage. Featuring a solid metal case, it offers exceptional heat dissipation, ensuring long-lasting, stable operation without overheating. With 2.5 Gbps PoE LAN and 1 Gbps WAN ports, it supports ultra-fast data transmission. Combined with 5G and fixed-line failover functionality, it automatically switches to ensure uninterrupted connectivity.
Key features:
- Global 5G NR band
- Wi-Fi 6 data rate 1800 Mbps
- Nano SIM slot
- Detachable 5G and Wi-Fi antenna
- 1x 2.5 Gbps PoE LAN
- 1x 1 Gbps WAN
- Durable metal case
Hardware General:
- Chipset: MT6890 SoC: Arm Cortex-A55 2 GHz quad-core + 5G NR; Wi-Fi 6: MT7915 + MT7975
- Flash: 32 Gb eMMC
- RAM: 8 Gb DDR4
- Antenna Connector: 4x SMA for 5GNR; 4x RP-SMA for Wi-Fi 6
- Antenna Gain: 5G NR: 617 – 960 MHz: 2 dBi; 1427 – 2690 MHz: 5 dBi; 3300 – 5850 MHz: 4 dBi; Wi-Fi: 2.4 GHz: 4 dBi; 5 GHz: 4 dBi
- Interface: 1x Nano SIM slot; 1x 2.5 Gbps RJ45 PoE In; 1x 1 Gbps RJ45; 1x DC jack; 1x Power on/off switch; 1x WPS button; 1x Reset button
- LED: 2x RGBW LED; 3x Blue LED
- Input Voltage: DC: 12V, 2A; PoE: IEEE 802.3at PD 25.5 W
- Power Consumption: Max. 24 W
- Dimensions: 165 x 166 x 37 mm (6.5 x 6.5 x 1.5 inch)
- Operating Temperature: -20° C to 75° C (-4° F to 167° F)
- Operating Humidity: 10% to 90% (non-condensing)
- ESD: Refers to IEC 61000-4-2 criterion A; Air Electrostatic Discharge: ± 8KV; Contact Electrostatic Discharge: ± 4KV
- Surge: Refers to IEC 61000-4-5 criterion A; Common mode surge immunity: ± 6KV; Differential mode surge immunity: ± 6KV
5G/4G Standard:
- 5G NR: Supports most main features in 3GPP Release 15; 3GPP EN-DC option 3/3A/3X; 3GPP SA option 2; Support downlink/uplink 256...
3. Alfa Network ALFA N5 - N5 - 802.11a/n Long-Range Outdoor WLAN/AP Router 5 GHz
ALFA Network N5 - 802.11a/n Long-Range Outdoor WLAN/AP Router 5 GHz
The N5 is a cost-effective 802.11a/n outdoor router AP/CPE that operates in the 5 GHz band. It is also compatible with the IEEE 802.11a standard. The integrated 14 dBi dual-polarized panel antenna and the two Ethernet ports allow for flexible use without the need for additional antennas. The N5 supports passive PoE and features intuitive software and LEDs on the exterior for easy installation and setup. The router is weather-resistant and suitable for outdoor use.
Package Contents:
N5
Quick Start Guide
1x PoE Adapter
2x Plastic Strips
Model: N5
CPU: Atheros AR7240
Flash: 8 MB
RAM: 32 MB
Interfaces: 2x RJ45, 1x Reset
Antenna: Integrated 14 dBi Antenna
Output Power (dBm):
802.11a
6 Mbps, 29 +/- 2
9 Mbps, 29 +/- 2
12 Mbps, 29 +/- 2
18 Mbps, 29 +/- 2
24 Mbps, 29 +/- 2
36 Mbps, 27 +/- 2
48 Mbps, 25 +/- 2
54 Mbps, 24 +/- 2
802.11n
MCS0, 29 +/- 2
MCS3, 29 +/- 2
MCS8, 29 +/- 2
MCS9, 29 +/- 2
MCS12, 29 +/- 2
MCS15, 29 +/- 2
Sensitivity (dB):
802.11a
6 Mbps, -92
9 Mbps, -89
12 Mbps, -86
18 Mbps, -83
24 Mbps, -81
36 Mbps, -78
48 Mbps, -75
54 Mbps, -73
802.11n
MCS0, -94
MCS3, -87
MCS8, -93
MCS9, -91
MCS12, -82
MCS15, -73
Operating Modes:
AP
Client
WISP
WDS Bridge
Software:
Site Survey
Bandwidth Control
SNMP v1/v2 Support
Adjustable Output Power
Distance Adjustment
Radius (802.1x)
Mounting:
Pole Mount (Standard)
Mounting Bracket (Optional)
Dimensions: 27.5 x 9.3 x 4.5 cm
Temperature:
Operating: -30°C to 75°C
Storage: -40°C to 80°C
Humidity:
Operating: 5 to 95%
PoE: 12 to 24 V, depending on cable length
This item is subject to GPL v2.
Note: Operate the device in Germany only in the "ETSI" zone! According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm (100 mW).
4. Alfa Network Alfa Tube-U4Gv2 Global Tube-U4Gv2/G
The Alfa Tube-U4Gv2 is a powerful outdoor 4G/LTE USB modem designed for use in various environments. With a weatherproof housing and an IP66 certification, this modem is ideal for outdoor use, whether camping, on boats, or for truck drivers needing a reliable internet connection on the go. The device supports multiple generations of mobile networks, including 2G, 3G, and 4G, offering a maximum download speed of up to 150 Mbps and an upload speed of up to 50 Mbps. The built-in SIM card slot allows for the use of data SIM cards, while the included high-gain 4G/LTE omnidirectional antenna enhances signal strength. The modem comes with a 5-meter long outdoor USB cable, allowing for flexible installation.
- Weatherproof design with IP66 certification for outdoor use
- Built-in SIM card slot for easy use of data SIM cards
- Supports mobile network generations 2G, 3G, and 4G
- Maximum download speed of 150 Mbps and upload speed of 50 Mbps
- Compatible with a variety of antennas via N connector for improved signal strength.

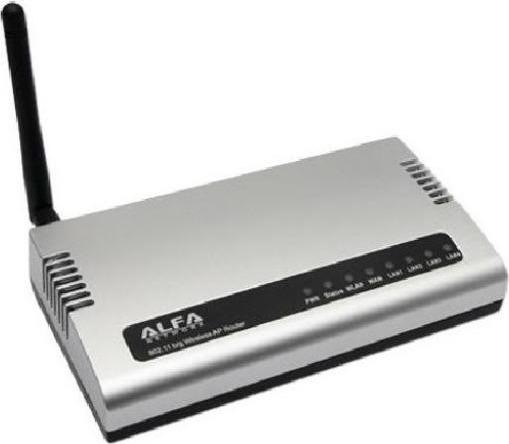

5. Alfa Network AIP-W610 - 802.11g WLAN AP/Router
Alfa AIP-W610 - 802.11g WLAN AP / Router
The wireless router with 4 ports and an integrated 10/100 Mbps Fast Ethernet switch represents the latest generation of wireless router products for home users and SOHO (Small Office/Home Office) users. This fully functional and compact WLAN router is entirely suitable for broadband access in both LAN and WLAN environments. This device has been specifically designed to provide LAN and WLAN users with the most cost-effective method of multiple internet access at the price of a single public IP address (IP sharing), allowing for a true plug-and-play installation. Thanks to the integrated 10/100 Mbps switch with 4 ports, users can connect the network cable to the device without needing to purchase an additional switch.
This device also functions as an access point and features an integrated WLAN module. Users can connect to the internet wirelessly from anywhere within the range of the radio transmission. It is ideal for SOHO users who require immediate and convenient internet access without the limitation of connection cables.
The user-friendly, web-based graphical user interface for setup allows inexperienced users to easily activate plug-and-play operation. An embedded DHCP server simplifies the management of IP addresses, eliminating the need for MIS personnel for daily technical service. Additionally, this compact router box includes a NAT/firewall to protect the entire LAN from external attacks.
Standards: IEEE 802.3, 10BASE-T; IEEE 802.3u, 100BASE-TX; IEEE 802.3x full-duplex operation and flow control; IEEE 802.11b WLAN infrastructure; IEEE 802.11g Wireless LAN infrastructure
Interfaces: 1x WAN port; 4x 10/100 RJ-45 Fast Ethernet switching ports
Antenna: 802.11b/g Wireless-SMA with detachable...
6. Alfa Network 4G CAMPPRO 2+ - R36AH, Tube-U4Gv2, AOA-4G-5AM plus accessories
ALFA 4G CampPro 2+ Kit - R36AH, Tube-U4Gv2, AOA-4G-5AM plus Accessories
The 4G CampPro 2+ Kit includes an R36AH USB Wi-Fi and 4G modem extender router, a Tube-U4G outdoor 4G/LTE USB modem, an AOA-4G-5AM outdoor 4G omni antenna, and accessories.
The ALFA R36AH is a USB Wi-Fi and 4G modem extender router that supports OpenWRT and setup via QR code. It offers fast data rates of up to 300 Mbps (802.11n) and is compatible with older 802.11b/g devices.
The ALFA Tube-U4Gv2 is a waterproof 4G/LTE USB modem designed for outdoor use.
The ALFA AOA-4G-5AM is an omnidirectional 4G antenna for outdoor use. It operates on various frequencies and is equipped with an N connector. It is made of durable fiberglass.
Package Contents
- R36AH USB Wi-Fi/4G modem extender router
- Tube-U4G outdoor 4G/LTE USB modem
- AOA-4G-5AM outdoor 4G omni antenna
- USB cable
Specifications R36AH
- Wi-Fi Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.142 - 2.472 GHz
- Channel Width: 20/40 MHz
- Data Rate: 802.11b: up to 11 Mbps; 802.11g: up to 54 Mbps; 802.11n: up to 300 Mbps
- Antenna: 1x internal, 1x external
- LED Indicators: Power, LAN, WAN, WLAN, USB
- Power Requirement: 12 V DC
- Wi-Fi Security Key: 64/128-bit WEP, WPA-PSK, WPA-EAP (PEAP/TTLS), WPA2-PSK, WPA2-EAP, WPA mixed, 802.1x authentication
- Operating Temperature: -20°C ~ +40°C
- Storage Humidity: 10 ~ 90% (non-condensing)
- Dimensions (mm): 93 x 70 x 26
- Weight: 74 g
Specifications Tube-U4Gv2
- Data: LTE FDD: max. 150 Mbps DL/max. 50 Mbps UL; LTE TDD: max. 130 Mbps DL/max. 35 Mbps UL; DC-HSDPA: max. 42 Mbps DL; HSUPA: max. 5.76 Mbps UL; WCDMA: max. 384 Kbps DL/max. 384 Mbps UL; EDGE: max. 296 Kbps DL/max. 236.8 Kbps UL; GPRS: max. 107 Kbps DL/max. 85.6 Kbps UL
- Antenna Connection: N socket
- Interface: Mini-USB 2.0; Standard SIM card with 6 pins
- LED Indicators: Power/Connection
- Power Requirement: 5 V.
7. Alfa Network Alfa Tube-E4G
8. Alfa Network HORNET-UB - Atheros 802.11n Embedded Board
The HORNET-UB from Alfa Network is a powerful embedded board based on the Atheros 802.11n standard. It is designed to provide a reliable and efficient network connection. With an Atheros AR9331 chipset and a frequency of 2.4 GHz, this board delivers solid performance for various applications. It supports OpenWRT, allowing for flexible customization and expansion of features. The integrated interfaces include two 10/100 Ethernet ports and a USB port, facilitating integration into existing systems. The transmission power and reception sensitivity are optimized for common Wi-Fi standards, ensuring a stable connection in different environments. The board is also equipped with various GPIO pins, enabling additional functions such as LED indicators and system control.
- Supports OpenWRT for enhanced customization options
- Integrated GPIO pins for additional control functions
- Optimized reception sensitivity for reliable connections
- Dual-band Wi-Fi functionality for flexible network usage
- Energy-efficient PoE support for easy installation.
9. Alfa Network Alfa Router AX1800RM
10. Alfa Network AIP-W610P - 802.11g 200 mW high-power (long-range) router
Alfa AIP-W610P - 802.11g 200 mW High-Power Router with Extended Range
The AIP-W610P is a wireless broadband router that fully supports AP/Bridge/WDS/AP+WDS functions. It complies with the IEEE 802.11b/g standard. The router is cost-effective, offers good performance, and enhances the advantages of a robust system. The AIP-W610P targets a competitive price-performance ratio, better power management, as well as SOHO and business offices.
It meets the IEEE 802.11b/g standard for 2.4 GHz Wireless LAN and supports 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption, and WPA with Radius. Additionally, it supports IEEE 802.1x authentication, IAPP, and WDS.
The router supports IEEE 802.3x full-duplex flow control on a 10/100 M Ethernet interface and includes a DHCP server for automatic IP address assignment for clients, as well as DHCP client, static IP address, PPPoE, and PPTP for the WAN interface.
Firewall security features include port filtering, IP filtering, MAC filtering, port forwarding, trigger port, and DMZ hosting functions; management and configuration are web-based.
It supports UPnP for automatic internet access and Dynamic DNS service, as well as NTP client service and logging table, along with remote logging service. The setup wizard mode supports VPN connections (Virtual Private Network) and firmware updates are performed via the web.
The router supports security protocols and authentication for wireless connections based on ESSID. It offers MAC access control and a hidden SSID feature. WDS is supported with WEP, TKIP, and AES encryption, and it also supports IPSEC tunnel encryption (3DES/AES128) and authentication functions (MD5/SHA1).
