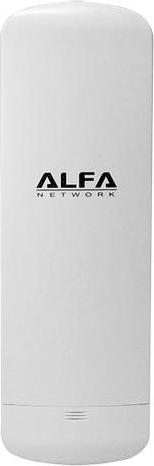

Alfa Network ALFA N5 - N5 - 802.11a/n Long-Range Outdoor WLAN/AP Router 5 GHz

ALFA Network N5 - 802.11a/n Long-Range Outdoor WLAN/AP Router 5 GHz

The N5 is a cost-effective 802.11a/n outdoor router AP/CPE that operates in the 5 GHz band. It is also compatible with the IEEE 802.11a standard. The integrated 14 dBi dual-polarized panel antenna and the two Ethernet ports allow for flexible use without the need for additional antennas. The N5 supports passive PoE and features intuitive software and LEDs on the exterior for easy installation and setup. The router is weather-resistant and suitable for outdoor use.

Package Contents:

N5
Quick Start Guide
1x PoE Adapter
2x Plastic Strips

Model: N5
CPU: Atheros AR7240
Flash: 8 MB
RAM: 32 MB
Interfaces: 2x RJ45, 1x Reset
Antenna: Integrated 14 dBi Antenna

Output Power (dBm):
802.11a
6 Mbps, 29 +/- 2
9 Mbps, 29 +/- 2
12 Mbps, 29 +/- 2
18 Mbps, 29 +/- 2
24 Mbps, 29 +/- 2
36 Mbps, 27 +/- 2
48 Mbps, 25 +/- 2
54 Mbps, 24 +/- 2

802.11n
MCS0, 29 +/- 2
MCS3, 29 +/- 2
MCS8, 29 +/- 2
MCS9, 29 +/- 2
MCS12, 29 +/- 2
MCS15, 29 +/- 2

Sensitivity (dB):
802.11a
6 Mbps, -92
9 Mbps, -89
12 Mbps, -86
18 Mbps, -83
24 Mbps, -81
36 Mbps, -78
48 Mbps, -75
54 Mbps, -73

802.11n
MCS0, -94
MCS3, -87
MCS8, -93
MCS9, -91
MCS12, -82
MCS15, -73

Operating Modes:
AP
Client
WISP
WDS Bridge

Software:
Site Survey
Bandwidth Control
SNMP v1/v2 Support
Adjustable Output Power
Distance Adjustment
Radius (802.1x)

Mounting:
Pole Mount (Standard)
Mounting Bracket (Optional)

Dimensions: 27.5 x 9.3 x 4.5 cm

Temperature:
Operating: -30°C to 75°C
Storage: -40°C to 80°C

Humidity:
Operating: 5 to 95%

PoE: 12 to 24 V, depending on cable length

This item is subject to GPL v2.

Note: Operate the device in Germany only in the "ETSI" zone! According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm (100 mW).
