Best Schneider Electric products in the RC servos category
On this page you'll find a ranking of the best Schneider Electric products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

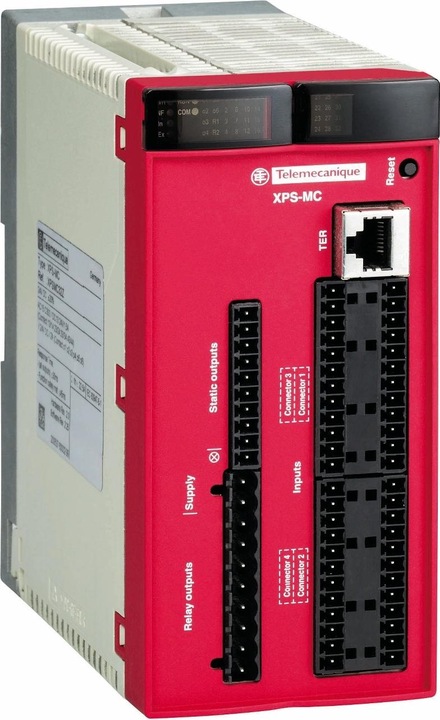

1. Schneider Electric 32 input Safety controller
Area: Pre-Sales
Series: XPS MC
Number of safety inputs: 32
Number of safety outputs: 10
Safety category: 4
SIL: SIL 3
Supply voltage: 24 Vdc
Contact rated current: 10 mA
Protection class: IP20
Width: 74 mm
Order numbers 464-946 and 464-930 are starter kits. These include the safety control unit, the configuration software XPS-MCWIN, an 8-pin USB cable with connector, an 8-pin Mini-DIN/RJ45 cable with sockets, a 25-pin D-Sub/RJ45 cable with connectors, a set of spring terminal blocks, and a set of screw terminal blocks. To connect an XPS-MC to a PC for programming and diagnostic purposes: Laptop PC with 9-pin serial port and Laptop PC with USB port. XPS MC, configurable safety control units, base units. Configurable device for centralized monitoring of multiple safety functions, such as emergency stop, safety locks, magnetic safety locks, two-hand control units, light curtains, zero-speed detection, and release switches. Designed as a solution for safety applications where compliance with category 4 of standard EN 954-1/ISO 13849-1 and the requirements according to SIL 3 of standard IEC 61508 is necessary. Features an interface for communication with operator terminals or PLC systems. 8 control inputs (standard). Simple optical diagnosis via LEDs on the front. Communication via Modbus. The safety outputs, which can be configured using the XPS MCWIN software, can be assigned 30 certified safety functions. The required safety function can be selected upon receipt of the product.
