Best selling PoE injector from Exsys
On this page you'll find a ranking of the best Exsys products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Exsys EX-6007POE-WT
With the EX-6007PoE-WT, devices such as IP phones, IP cameras, and Wi-Fi access points can be powered via the data line with a voltage of 52 V. The EX-6007PoE-WT converts the 12-48 VDC input voltage to 52 VDC for PoE power sources. With its slim, compact housing and a temperature range of -40ºC to +85ºC, it is ideal for use in industrial environments. The EX-6007PoE-WT operates as Power Source Equipment (PSE) providing 34.20 W for the Powered Device (PD) with 25.50 W. It offers users greater flexibility in installation, as the device no longer needs to be located close to a power outlet. By using Power over Ethernet (PoE) according to IEEE 802.3af/at, the EX-6007PoE-WT eliminates the need for a nearby outlet and enables a reliable and user-friendly network solution, preserving the user's investments in LAN and internet applications.
- Powers network devices via the data line
- Supports an extended temperature range of -40°C to +85°C
- Supports 10/100/1000 Base-T Ethernet standard
- Fully compatible with IEEE 802.3af/at PoE (PSE) Type 1 with 15.40 W and IEEE 802.3at PoE+ (PSE) Type 2 with 34.20 W
- Maximum output power (PD): Type 1 with 12.95 W / Type 2 with 25.50 W
- LED indicator for PoE power supply status
- Built-in converter for voltage increase from 12-48 VDC to 52 VDC
- Power input: 12 V to 48 V (DC jack or terminal block)
- Built-in isolated DC to DC converter
- Wall or DIN rail mounting
- Slim, robust metal housing for critical applications
Delivery includes:
EX-6007PoE-WT, power supply 12V/3A, DIN rail kit, manual.
2. Exsys Industrial PoE+ Gigabit Injector 60W
With the Gigabit Ethernet PoE Injector EX-60310 in a robust metal housing, devices such as IP phones, IP cameras, and WLAN access points can be powered via the network cable. It supports the PoE+ standard IEEE 802.3at. The maximum power at the PoE port is 12.95 W for Type 1 and 25.50 W for Type 2; additionally, LTPoE++ with up to 60 W is also possible. Power can be supplied from an optional external power supply via the +12 to +48 V terminal block. The EX-60310 ensures secure data transmission and excellent performance of up to 1000 Mbit/s. Thanks to the robust metal housing and the extended operating temperature range of -40 °C to 80 °C, it is suitable for a variety of applications even in harsh environments. The package includes a DIN-Rail kit (pre-assembled) and a wall mounting bracket.
Included: EX-60310, DIN-Rail Kit (pre-assembled), wall mounting kit, manual
Powers network devices via the data line.
10/100/1000Base-T Gigabit Ethernet.
Fully IEEE 802.3af/at Power Over Ethernet (PoE) compliant.
Maximum output power: Type 1 = 12.95 W / Type 2 = 25.50 W / LTPoE++ = 60 W.
Plug and play, no configuration or installation required.
LED status indicators for power supply and PoE.
Terminal block for DC input, +12 V to +48 VDC.
Robust, compact metal housing, IP40.
Includes DIN-Rail kit and wall mounting bracket.
Extended operating temperature range of -40 °C to +80 °C.
PoE injector
CHF108.–
Exsys Industrial PoE+ Gigabit Injector 60W
802.3at (PoE+), 802.3bt (PoE++), 802.3af (PoE), 60 W

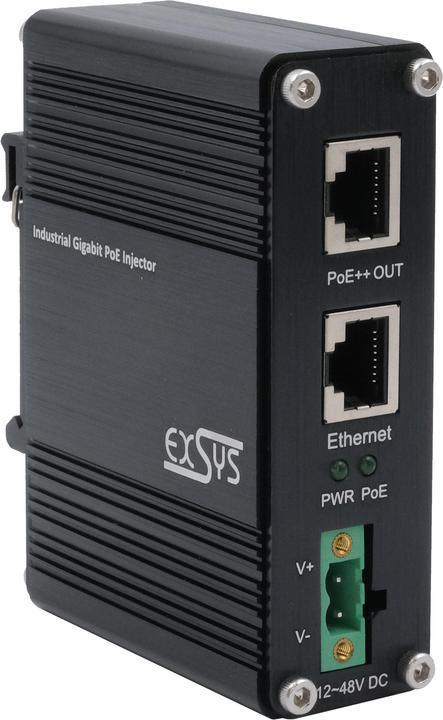

3. Exsys Industrial PoE++ Gigabit Injektor 95W
With the Gigabit Ethernet PoE Injector EX-60315 in a robust metal housing, devices such as IP phones, IP cameras, and WLAN access points can be powered via the network cable. It complies with the PoE++ standard IEEE 802.3bt. The maximum output power (PD) at the PoE port is 12.95 W for Type 1, 25.5 W for Type 2, and 90 W for LTPoE++. Power can be supplied from an optional external power supply via the +12 to +48 V terminal block. The EX-60315 ensures secure data transmission and excellent performance of up to 1000 Mbit/s. Thanks to its robust metal housing and extended operating temperature range of -40 °C to 80 °C, it is suitable for a variety of applications even in harsh environments. The package includes a DIN rail kit (pre-assembled) and a wall mounting bracket.
Package contents: EX-60315, DIN-Rail Kit (pre-assembled), wall mounting kit, manual
Powers network devices via the data line.
10/100/1000Base-T Gigabit Ethernet.
Fully compliant with IEEE 802.3af/at/bt Power Over Ethernet (PoE).
Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W / LTPoE++ = 90 W.
Plug and play, no configuration or installation required.
LED status indicators for power supply and PoE.
Terminal block for DC input, +12 V to +48 VDC.
Robust, compact metal housing, IP40.
Includes DIN-Rail Kit and wall mounting bracket.
Extended operating temperature range of -40 °C to +80 °C.
4. Exsys Industrial PoE++ Gigabit Injektor 90W
The Industrial PoE++ Gigabit Injector 90W is an active PoE injector that provides an efficient and powerful solution for powering network devices. With a maximum port speed of 1000 Mbps (1 Gbps), this injector enables fast data transmission while simultaneously delivering up to 90 watts of power. It supports PoE standards 802.3bt (PoE++), 802.3at (PoE+), and 802.3af (PoE), making it versatile for various applications in industrial environments. Its compact dimensions of 115 mm in length, 58 mm in width, and 26 mm in height make it ideal for integration into existing systems without taking up much space. Equipped with a single port, this injector is particularly suitable for connecting devices that require high power, such as IP cameras, access points, or VoIP phones. The Industrial PoE++ Gigabit Injector is therefore a reliable choice for anyone seeking a robust and powerful PoE solution.
5. Exsys EX-6100PoE 5-Port Gigabit Injector
The EX-6100PoE Power Injector adds PoE power to one of the 4 Ethernet PoE ports, allowing you to deliver power and data to your Ethernet devices in the field over a single Ethernet cable. The Power over Ethernet functionality enables network administrators to install the EX-6100PoE up to 100 meters away from PoE devices such as wireless access points, IP cameras, etc. It supports the best location for devices that are on a power pole outside or in the ceiling where there is no power outlet. The EX-6100PoE supplies 48-57V DC for PoE PDs. Its compact size makes the PoE solution not only easy to use but also simple to install in remote locations. The EX-6100PoE then operates as Power Source Equipment (PSE) for the Powered Device (PD). It gives the installer more flexibility during installation, as the device no longer needs to be in close proximity to a power outlet. By using Power over Ethernet (PoE) according to IEEE 802.3af, the EX-6100PoE eliminates the need for a nearby power outlet and provides a reliable and easy-to-use networking solution.
Main Features:
Connections and Interfaces:
Number of basic switching RJ-45 Ethernet Ports: 5
Basic Switching RJ-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
Network Standard: IEEE 802.3af
10G Support: No
Auto MDI/MDI-X: Yes
Data Transmission Jumbo Frames Support: Yes
Jumbo Frames: 9000
Design:
Product Color: Black, Gray
Housing Material: Metal
LED Indicators: Yes
DIN Rail Mounting: Yes
Performance:
DC Input Voltage: 48 - 57 V
Power Consumption (max.): 30 W
Power over Ethernet (PoE): Yes
Number of Power over Ethernet (PoE) Ports: 4
Operating Conditions:
Operating Temperature Range: 0 - 60 °C
Storage Temperature Range: -40 - 85 °C
Relative Humidity in Operation: 5 - 95%
Weight and Dimensions:
Width: 133 mm
Depth: 61.5 mm
Height: 43.2 mm
Weight: 300 g
Packaging Data:
Operating Manual: Yes.
6. Exsys PoE+ Gigabit Injektor 30W
With the Gigabit Ethernet PoE Injector EX-60300 in a metal housing, devices such as IP phones, IP cameras, and WLAN access points can be powered via the network cable. It supports the PoE+ standard IEEE 802.3at. The maximum power (PD) at the PoE port is 12.95 W for Type 1 and 25.50 W for Type 2. The power supply from the external power adapter is provided through the +12 to +52 V DC socket. The EX-60300 ensures secure data transmission and excellent performance of up to 1000 Mbit/s. The robust metal housing is suitable for wall mounting. A 36 W power supply is included in the package.
- Powers network devices via the data line
- 10/100/1000Base-T Gigabit Ethernet
- Fully compliant with IEEE 802.3af/at Power Over Ethernet (PoE)
- Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W
- Plug and play, no configuration or installation required
- LED status indicator for power supply and PoE
- DC socket for DC input from +12 V to +52 VDC
- Robust, compact metal housing, IP30
- Includes power supply 24 V / 1.5 A.
7. Exsys Industrial PoE++ Gigabit Injektor 60W
The Industrial PoE++ Gigabit Injector 60W is an active PoE injector that provides an efficient and powerful solution for powering network devices. With a maximum port speed of 1000 Mbps (1 Gbps), this injector enables fast data transmission while simultaneously delivering up to 60 watts of power. It supports PoE standards 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++), making it versatile for various applications in industrial environments. The compact injector measures 115 mm in length, 58 mm in width, and 26 mm in height, making it ideal for integration into existing systems without taking up much space. Equipped with a single port, this injector is particularly suitable for powering IP cameras, access points, and other PoE-enabled devices that require a reliable power source. Its robust construction ensures high reliability and durability, making it an excellent choice for demanding applications.

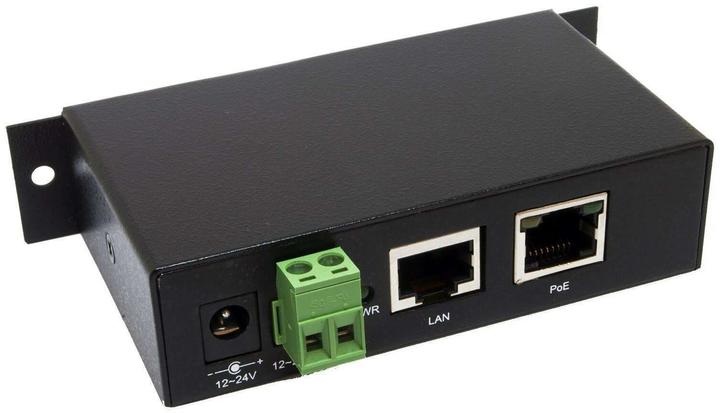

8. Exsys EX-6007PoE
With the EX-6007PoE, you can connect and power devices such as IP phones, IP cameras, or Wi-Fi access points to your network using the same network cable. This means that the devices do not require additional power outlets or expensive PoE-supported switches. With its slim, compact housing and a temperature range of 0 to 60 ºC, the PoE injector is ideal for industrial environments. It can be mounted on walls or DIN rails. The injector can be powered either via a terminal block or through the DC input with a round connector (power supply included).

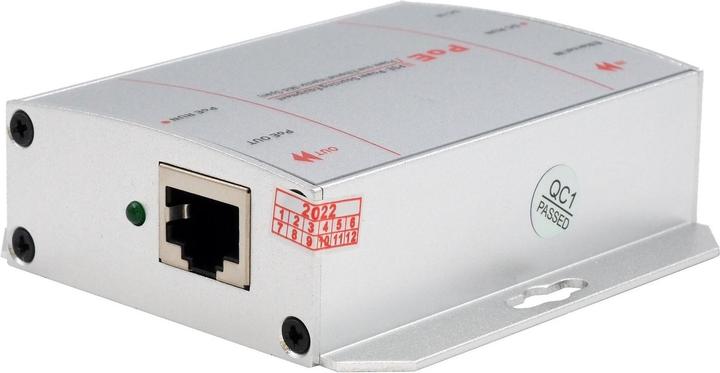

9. Exsys PoE++ Gigabit Injector 95W
With the Gigabit Ethernet PoE Injector EX-60305 in a metal housing, devices such as IP phones, IP cameras, and WLAN access points can be powered via the network cable. It complies with the PoE++ standard IEEE 802.3bt. The maximum power (PD) at the PoE port is 12.95 W for Type 1, 25.5 W for Type 2, and 90 W for LTPoE++. The power supply from the external power adapter is provided through the +12 to +52 V DC socket. The EX-60305 ensures secure data transmission and excellent performance of up to 1000 Mbit/s. The robust metal housing is suitable for wall mounting. A 110 W power supply is included in the package.
- Powers network devices via the data line
- 10/100/1000Base-T Gigabit Ethernet
- Fully IEEE 802.3af/at/bt Power Over Ethernet (PoE) compliant
- Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W / LTPoE++ = 90 W
- Plug and Play, no configuration or installation required
- LED status indicator for power supply and PoE
- DC socket for DC input from +12 V to +52 VDC
- Robust, compact metal housing, IP30
- Includes power supply 52 V / 2.15 A.
10. Exsys Industrial PoE+ Gigabit Injektor EN50155
The EN50155-compliant Gigabit Ethernet PoE Injector EX-60316 is designed for industrial applications, such as in rail vehicles and railway applications. It complies with the PoE+ standard IEEE 802.3at and provides a Gigabit PoE output. The EN50155 PoE injector uses M12 connectors to ensure tight, robust connections and reliable operation in environments with disturbances such as vibrations and shocks. The extended operating temperature range of -40°C to 80°C and the sturdy metal housing further contribute to operational reliability. The device only powers on when it detects a valid PoE signature from the downstream PoE devices in the network. This provides protection against damage to non-PoE-compatible devices that may be connected to the Ethernet cable. Power is supplied with a wide input voltage range of +12 to +48 V from an optional external power supply via the 4-pin M12 connector.
Included in the package: EX-60316, DIN-Rail Kit (pre-assembled), wall mounting kit, manual.
Powers network end devices over the data line.
10/100/1000Base-T Gigabit Ethernet.
Fully IEEE 802.3af/at Power Over Ethernet (PoE) compliant.
Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W.
Fully EN50155 compliant, "railway standard."
M12 connectors for Ethernet and power supply +12 V to +48 VDC.
LED status indicators for power supply and PoE.
Robust, compact metal housing, IP40.
Includes DIN-Rail kit and wall mounting brackets.
Extended operating temperature range of -40°C to +80°C.
PoE injector
CHF215.–
Exsys Industrial PoE+ Gigabit Injektor EN50155
802.3af (PoE), 802.3at (PoE+), 30 W
