Exsys Industrial PoE++ Gigabit Splitter 50W

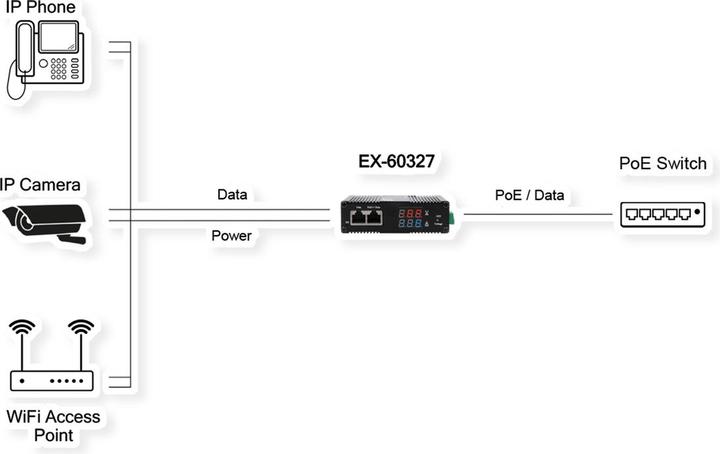

The Gigabit Ethernet PoE++ Splitter EX-60327 separates the signal from a PoE server (PSE) into data and power, outputting both signals separately. This allows non-PoE-capable Ethernet devices such as IP cameras and Wi-Fi access points to be connected to a PoE switch or other PSEs, utilizing its power supply. It complies with the PoE++ standard IEEE 802.3bt. The voltage at the terminal block for powering the device can be individually set between 3 VDC and 36 VDC. The maximum output power is 50 W at a maximum of 10 A. With its robust metal housing and extended operating temperature range of -40 °C to 75 °C, the EX-60327 is suitable for a variety of applications, even in harsh environments. The package includes a pre-assembled DIN rail kit and a wall mounting bracket.

• Separates data and power from a PoE signal to supply non-PoE-capable Ethernet devices
• Reduces system cabling, improves system stability and safety, and lowers maintenance costs
• Adjustable output voltage at the terminal block: 3-36 VDC, maximum 50 W/10 A
• Fully compliant with IEEE 802.3af/at/bt Power over Ethernet (PoE)
• 10/100/1000Base-T Gigabit Ethernet
• Plug and Play, no configuration or installation required

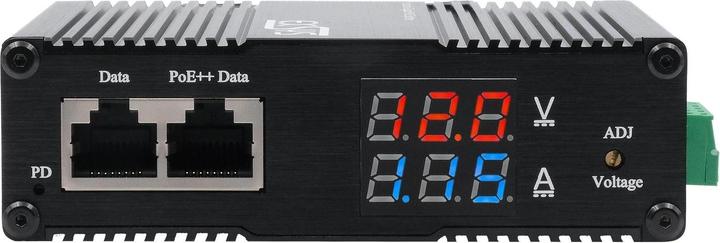

• Digital real-time display of output voltage and current
• Robust, compact metal housing, IP40

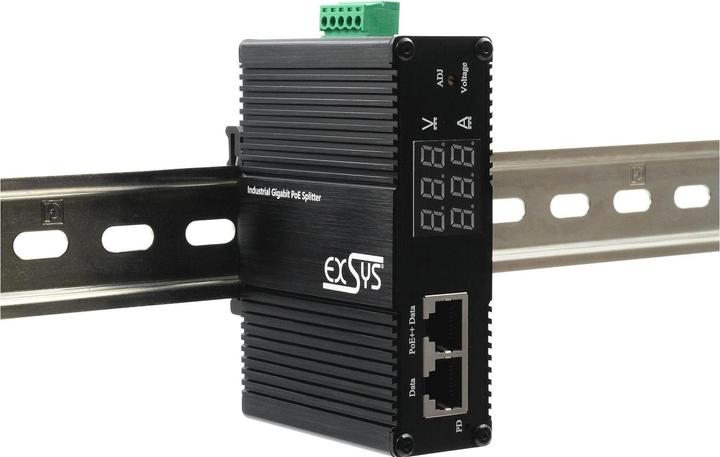

• Includes DIN rail kit and wall mounting bracket
• Extended operating temperature range of -40 °C to +75 °C

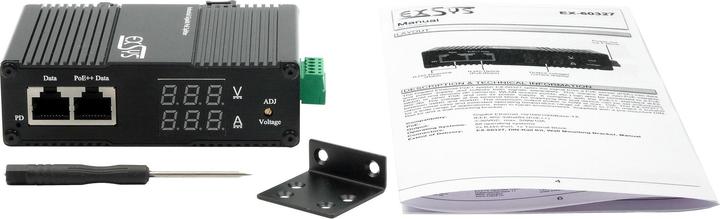

Package contents:
EX-60327, DIN rail kit (pre-assembled), wall mounting kit, manual.
