Best Cisco products in the PoE injector category
On this page you'll find a ranking of the best Cisco products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

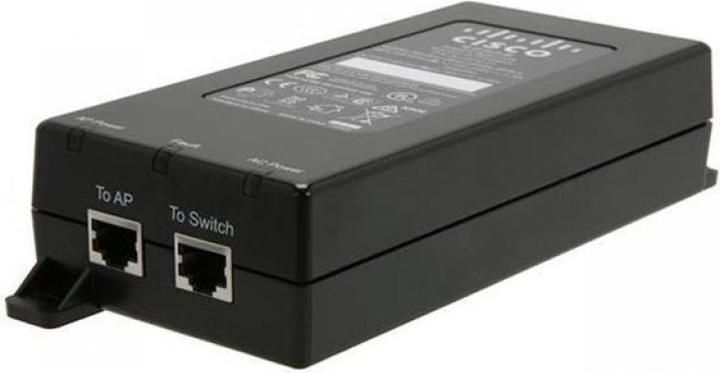

1. Cisco power injector
Cisco PoE Injector AIR-PWRINJ6 including Swiss power cable. 802.3af/at PoE 30 Watts. Maximum PoE power per port: 30 W. RJ-45 speed: 10/100/1000 Mbps. Compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W). Compatible with Cisco Aironet 2800 Series and 3800 Series. The Cisco Aironet Power Injector AIR-PWRINJ6 enhances the flexibility of wireless LAN deployment for supported Cisco Aironet Access Points by providing an alternative power supply option to local power sources, powered inline switches with multiple ports, and power patch panels with multiple ports. The single-port PoE injector delivers up to 30 Watts and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. This power injector is designed for use with Cisco Aironet 2800 Series and 3800 Series access points. The IEEE 802.3at standard provides a maximum of 25.4 Watts of power on each PoE port with a voltage of up to 50 Volts. The standard assumes that after line losses, 21.90 Watts of usable power remains or may be consumed to avoid exceeding the maximum power output. For PoE, a Cat5e/6 cable with a maximum length of 100 m is recommended. With Power over Ethernet (PoE), you can power compatible devices through the network cable. This significantly reduces cabling requirements for end devices such as wireless access points, IP phones, and IP cameras, while also providing high flexibility in placing these devices.

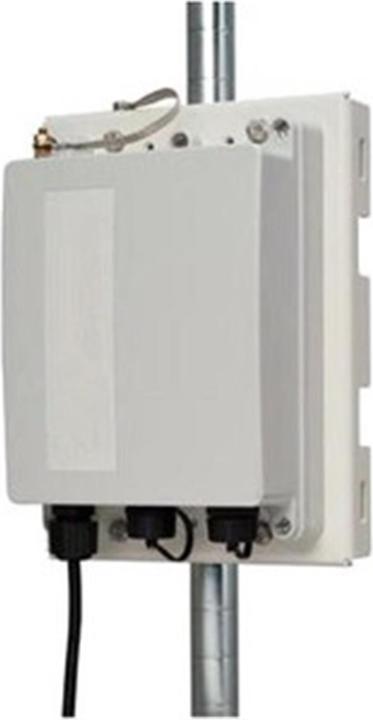

2. Cisco Power Injector 60w Outdoor Unconnectorized Msd Ns Accs
The Cisco Power Injector 60W Outdoor Unconnectorized is a passive PoE injector specifically designed for outdoor use. With an output power of 60 watts, it supports the IEEE 802.3af and IEEE 802.3at standards, making it a flexible solution for powering network devices. The injector allows for power transmission over Ethernet cables, eliminating the need for separate power lines. This is particularly advantageous in environments where the installation of power outlets can be difficult or costly. The Power Injector is robust and suitable for outdoor use, making it ideal for various network environments. Weighing 500 g and featuring compact dimensions, it is easy to handle and install.
- Supports Power over Ethernet (PoE) according to IEEE 802.3af and IEEE 802.3at
- Robust construction for outdoor use
- Auto MDI/MDI-X support for easy installation
- Input voltage of 90 - 264 V for flexible deployment options.
PoE injector
CHF620.75
Cisco Power Injector 60w Outdoor Unconnectorized Msd Ns Accs
802.3af (PoE), 802.3at (PoE+), 60 W
3. Cisco Power Injector - for Catalyst 91
The Cisco Multigigabit 802.3bt Power Injector is a reliable, standards-compliant power injector capable of powering the latest high-performance access points and other network devices.
One of the main limitations in designing your wireless network is the availability of power. Running power cabling is also a primary cost driver of wireless installations. The Cisco Power over Ethernet (PoE) Injector allows delivery of both data and power to a Cisco access point over a single Ethernet cable, enabling deployment of devices exactly where they are needed to provide the best wireless coverage at a much lower installation cost.
The Cisco 802.3bt PoE Injector provides fully compliant 802.3bt detection, with disconnect, short-circuit, and overload protection to ensure that only 802.3bt, 802.3at, and 802.3af devices receive power, and that non-compliant devices are not accidentally damaged. Using this injector, it is possible to power the latest generation of 802.11ax devices that require higher power as well as providing multigigabit support.
Regardless of the deployment scenario, powering Cisco devices with 802.3bt Power over Ethernet with multigigabit is a flexible and low-cost method to simplify the installation process while ensuring that network design is not compromised by power availability limitations.
4. Cisco Business - Power Injector - Europe
The Cisco Business Power Injector is an active PoE injector specifically designed for use in Europe. This device allows for the power supply of compatible Cisco Business devices over Ethernet cables, eliminating the need for additional power cables. With a maximum output of 15.3 watts per port, the injector supports the PoE standard 802.3af and provides a reliable solution for powering network devices. The Cisco CB-PWRINJ-EU is equipped with two RJ45 ports, enabling a maximum port speed of 1 Gbps. This product is ideal for use with Cisco Business 140AC, 145AC, and 240AC devices, contributing to efficiency and flexibility in network architecture.
- Supports the PoE standard 802.3af for efficient power supply
- Maximum output of 15.3 watts per port
- Two RJ45 ports for flexible network connections
- Designed for use with Cisco Business 140AC, 145AC, and 240AC devices.
5. Cisco Power Supply

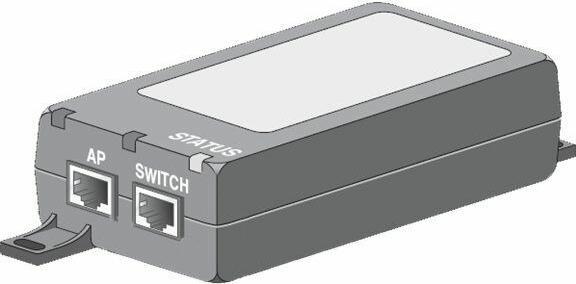

The Cisco Aironet Power Injector (AIR-PWRINJ5) increases wireless LAN deployment flexibility of Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.
The single-port Cisco Aironet Power Injector provides 802.3af power and data signal, sending both to the Cisco Aironet Access Point.
The power injectors provide up to 15.4 W over the unused wire pairs of a Category 5 or better Ethernet cable, supplying enough power for a distance of 328 ft (100 m) on the Cisco Aironet 1040, 1140, 1260, 2600, and 3500 Series Access Points.
6. Cisco 8832 NON-POE ETHERNET INJECTOR
CISCO 8832 NON-POE ETHERNET INJECTOR SPARE FOR WORLDWIDE IN NMS IN ACCS.
7. Cisco Meraki Mgig 802.3bt Poe Injector - Power Cord Not Included
Provides power and connectivity
Allows delivery of both data and power for the Meraki MV smart camera over a single Ethernet cable allowing for simple installation.
PoE injector
CHF519.–
Cisco Meraki Mgig 802.3bt Poe Injector - Power Cord Not Included
802.3at (PoE+), 802.3af (PoE)

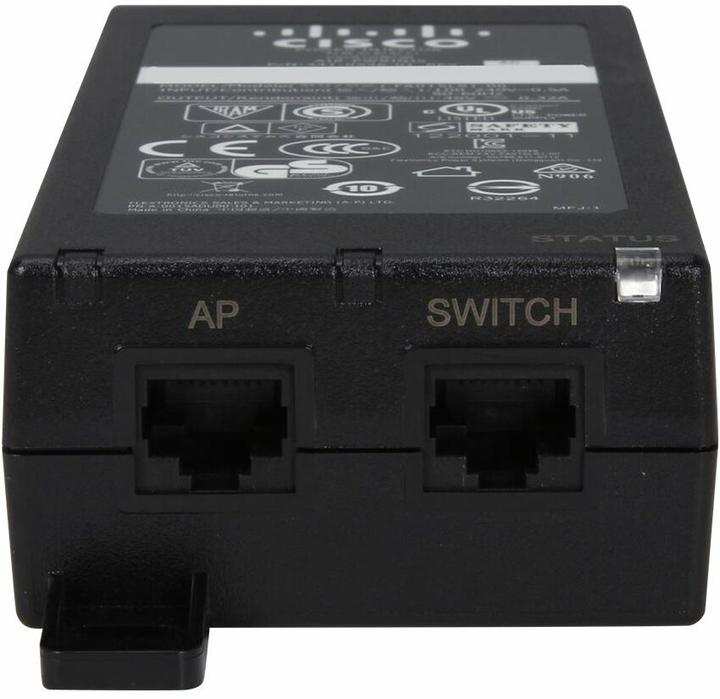

8. Cisco AIR-PWRINJ5
The AIR-PWRINJ5 Power Injector increases flexibility in powering Cisco Aironet Wireless Access Points from the 1600 series and many other Cisco Access Points. It is suitable for Cisco Aironet 1600, 2600, 3600, as well as many other Cisco Access Points.
9. Cisco Aironet Power Injector - Power Inj
