On this page you'll find a ranking of the best EKWB products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

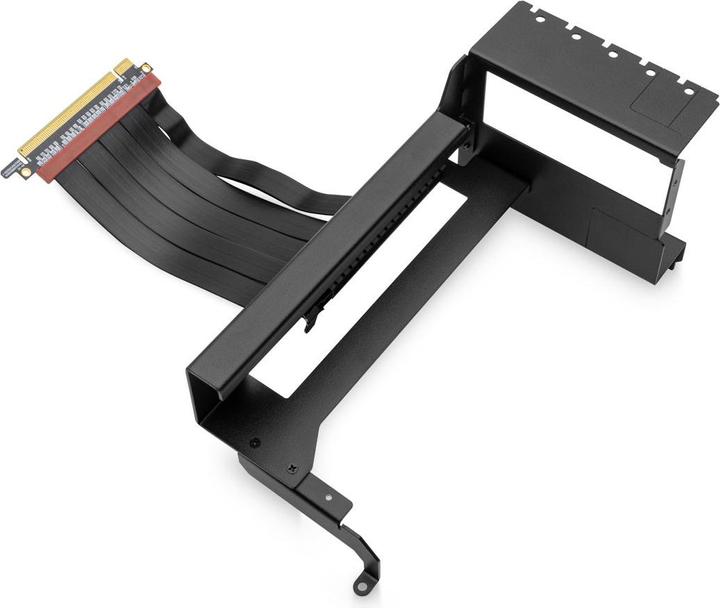

1. EKWB EK-Loop Vertical Graphics Card Holder EVO, PCIe Riser Cable 4th Gen
Position your graphics card with water cooler vertically. Suitable for cases with at least four to six slot height. For graphics cards with a maximum height of three slots. Backward-compatible 4th generation riser cable. Long flat ribbon cable for clean cable management.
The EK Water Blocks EK-Loop Vertical Graphics Card Holder EVO (Shifted) in detail: With the black vertical graphics card holder EVO (Shifted) from EK Water Blocks, a graphics card can be installed vertically in a tower case. It consists of a PCIe riser cable and a special PCI slot bracket. The adapter bracket is mounted slightly offset at the PCI slots of the case. At least four to six PCI slots should be free for installation, and the graphics cards must not exceed a height of three slots.
The riser cable connects the graphics card to the PCIe slot on the motherboard. Its x16 slot is electrically connected with a full 16 data lanes, providing the full bandwidth for graphics cards. A 20 cm long, flexible flat ribbon cable is used for data transmission. The small board with the PCIe x16 card slot is secured to the graphics card holder with two screws.
Technical details:
- Material: Steel (powder-coated)
- Color: Black
- Cable length: 200 mm
- Connectors: Plug: PCIe with 16 lanes, Socket: PCIe with 16 lanes angled at 90°
- Supported PCI Express standards: 1.x, 2.x, 3.0, 4.0
- Maximum height of the graphics card: 3 slots.
2. EKWB EK-Scalar Dual 2-Slot
The EK-Scalar Dual 2-Slot is designed to connect two graphics cards equipped with EK-Vector or EK-FC water coolers. The terminal connects directly to the respective VGA coolers, and additional fittings, seals, tubes, or hoses are required.
In this version, the terminal is made of transparent acrylic glass, allowing a view of the flowing coolant. The flow into this bridge is parallel. Therefore, two tubes run through the connector vertically, with water being supplied on one side, splitting, and flowing through both VGA coolers, and then being discharged on the other side. Advantage: Both receive evenly cold water. Disadvantage: However, with less pressure.
Note: The terminal is only compatible with EK-Vector or EK-FC series water coolers.
Technical details:
- Material: Acrylic glass
- VGA cooler connections: 2x
- Thread: G1/4 inch
- Delivery includes:
1x EK-Scalar Dual 2-Slot - Acrylic
2x G1/4-Plug
1x Mounting mechanism.
3. EKWB EK-Scalar Quad 2-Slot
The EK-Scalar Quad 2-Slot is designed to connect four graphics cards equipped with EK-Vector or EK-FC water coolers. The terminal connects directly to the respective VGA coolers, and additional fittings, seals, tubes, or hoses are required.
In this version, the terminal is made of black acetal. The flow into this bridge is parallel. Therefore, two tubes run vertically through the connector, with water entering on one side, splitting, and flowing through the four VGA coolers, before being discharged on the other side. Advantage: All coolers receive evenly cold water. Disadvantage: However, with less pressure.
Note: The terminal is only compatible with EK-Vector or EK-FC series water coolers.
Technical details:
- Material: Acetal
- Color: Black
- VGA cooler connections: 4x
- Thread: G1/4 inch
- Delivery includes:
1x EK-Scalar Quad 2-slot - Acetal
2x G1/4-Plug
1x Mounting mechanism.
