Best selling Network switches from Moxa
This page always stays fresh and updates automatically.
1. Moxa EN50155 MANAGED M12 ETHERNET S
The Moxa EN50155 Managed M12 Ethernet S is a highly advanced rack switch specifically designed for use in demanding network environments. With 16 ports, this switch provides a comprehensive solution for connecting devices in industrial applications. It supports the PoE standard 802.3at (PoE+), meaning that up to four ports can be powered over Ethernet to supply connected devices with power. The switch is fully manageable, allowing for precise control and monitoring of network traffic. Manufactured in Taiwan, the Moxa EN50155 meets the stringent requirements of the EN50155 standard, which is developed for use in the railway and transportation industry. This makes it an ideal choice for applications that require reliability and robustness. The switch is designed to ensure a stable and efficient network connection, even under extreme conditions. With its advanced technology and versatile applications, the Moxa EN50155 Managed M12 Ethernet S is a valuable addition to any industrial network.
2. Moxa EDS-G205-1GTXSFP
The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber optic port, making them ideal for applications that require high bandwidth. They provide a cost-effective solution for industrial Gigabit Ethernet connections. The built-in relay warning function alerts network managers in the event of power failures or port failures. The 4-pin DIP switches can be used to control broadcast storm protection, jumbo frames, and energy savings according to IEEE 802.3az. Additionally, the 100/1000 SFP speed switching is perfect for easy on-site configuration for any industrial automation application. A standard temperature model with an operating temperature range of -10 to 60 °C and a wide temperature model with an operating temperature range of -40 to 75 °C are available. Both models undergo a 100% burn-in test to ensure they meet the specific requirements of industrial automation control applications. The switches can be easily installed on a DIN rail or in distribution boxes. Package includes: MOXA EDS-G205-1GTXSFP, quick installation guide.
3. Moxa ioLogik 2512-T
The IoLogik 2500 Smart Ethernet Remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The hardware design of the ioLogik 2500 includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling seamless connectivity with a range of field devices. One of the Ethernet ports can be used to connect 8 daisy-chained ioLogik E1200 expansion modules, providing more than 100 channels. The ioLogik 2500 acts as the "head" unit, utilizing Click&Go Plus logic to control the entire I/O array. Most importantly, only a single IP address is required to connect the entire I/O array to your network. This is the perfect solution for industrial field sites with a limited number of IP addresses. Included: MOXA ioLogik 2512-T.
4. Moxa EDS-405A-SS-SC
The EDS-405A series has been specifically designed for industrial applications. The switches support a variety of useful management features such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and email or relay alerts. The ready-to-use Turbo Ring can be easily configured through the web-based management interface or via the DIP switches on the top of the EDS-405A switches.
Additional features and benefits:
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP, Modbus TCP, and PROFINET protocols for device management and monitoring
- EtherNet/IP EDS file (Electronic Data Sheet), custom AOI (Add-On Instructions), and FactoryTalk View graphic components available
- PROFINET GSDML file and SIMATIC STEP 7 device symbols available
- Port mirroring for online debugging
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to simplify network planning
- QoS (IEEE 802.1p and TOS/DiffServ) to enhance determinism
- RMON for proactive and efficient network monitoring
- SNMPv1/v2c/v3 for various security levels of network management
- Bandwidth management to prevent unpredictable network status
Package includes: MOXA EDS-405A-SS-SC, quick installation guide.
5. Moxa EDS-205A
The industrial Ethernet switches of the EDS-205A series with 5 ports support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half duplex MDI/MDI-X auto-sensing. The EDS-205A series features redundant power inputs with 12/24/48 VDC (9.6 to 60 VDC), which can be connected simultaneously to live DC power sources. These switches are designed for harsh industrial environments, such as maritime, rail, highway, or mobile applications, or in hazardous environments that comply with FCC, UL, and CE standards. The EDS-205A switches are available with a standard operating temperature range of -10 to 60 °C or with an extended operating temperature range of -40 to 75 °C. All models undergo a 100% burn-in test to ensure they meet the specific requirements of industrial automation control applications. Additionally, the EDS-205A switches feature DIP switches to enable or disable broadcast storm protection, providing an extra level of flexibility for industrial applications. Package includes: MOXA EDS-205A, quick installation guide.
6. Moxa EDS-405A-MM-SC
The EDS-405A series has been specifically designed for industrial applications. The switches support a variety of useful management features such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and email or relay alerts. The ready-to-use Turbo Ring can be easily set up via the web-based management interface or through the DIP switches on the top of the EDS-405A switches.
Additional features and benefits:
- DHCP Option 82 for assigning IP addresses with different policies
- Supports EtherNet/IP, Modbus TCP, and PROFINET protocols for device management and monitoring
- EtherNet/IP EDS file (Electronic Data Sheet), custom AOI (Add-On Instructions), and FactoryTalk View graphic components available
- PROFINET GSDML file and SIMATIC STEP 7 device symbols available
- Port mirroring for online debugging
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to simplify network planning
- QoS (IEEE 802.1p and TOS/DiffServ) to enhance determinism
- RMON for proactive and efficient network monitoring
- SNMPv1/v2c/v3 for various security levels of network management
- Bandwidth management to prevent unpredictable network status
Included in the package: MOXA EDS-405A-MM-SC, quick installation guide.
7. Moxa TN-5308-LV-T
The unmanaged Ethernet switches of the ToughNet TN-5308 series M12 are designed for industrial applications in harsh environments. The switches in the TN-5308 series utilize M12 connectors to ensure tight, robust connections and reliable operation against environmental disturbances such as vibrations and shocks. The TN-5308 series Ethernet switches offer 8 Fast Ethernet M12 ports, support IEEE 802.3 / 802.3u / 802.3x with 10 / 100M, full / half duplex, MDI / MDI-X auto-sensing, and provide a cost-effective solution for your industrial Ethernet network. Models with an extended operating temperature range of -40 to 75 °C are also available. The TN-5308 Ethernet switches meet the requirements of EN 50155, making them better suited for vehicle products, including operating temperature, input voltage, shock, ESD, and vibration, thus making the switches suitable for a variety of industrial applications. TN-5308 PoE Ethernet switches offer 4 or 8 IEEE 802.3af compatible PoE ports. These switches are classified as Power Source Equipment (PSE) and deliver up to 15.4 watts of power per port. Package includes: MOXA TN-5308-LV-T.
8. Moxa EDR-810-2GSFP
The EDR-810 is a highly integrated industrial multiport router with firewall, NAT, VPN, and managed Layer 2 switch functions. Designed for Ethernet-based security applications in critical remote control or monitoring networks, it provides an electronic security perimeter to protect critical cyber assets, including pump-and-treat systems in water stations, DCS systems in oil and gas applications, and PLC/SCADA systems in factory automation.
The EDR-810 series includes the following cybersecurity features: Firewall and NAT. Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) protects the internal LAN from unauthorized activity by external hosts.
VPN (Virtual Private Networking) provides users with secure communication tunnels when accessing a private network via the public Internet. VPNs use IPSec server or client mode (IP Security) to encrypt and authenticate all IP packets at the network level to ensure confidentiality and sender authentication.
The EDR-810's "WAN Routing Quick Setting" provides users with an easy way to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810's "Quick Automation Profile" provides engineers with an easy way to configure the firewall filter function with common automation protocols such as EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET.
Users can easily create a secure Ethernet network with a single click through a user-friendly web interface, and the EDR-810 can perform comprehensive Modbus TCP packet inspection. Wide temperature range models that operate reliably in hazardous -40 to 75°C environments are also available.
Scope of delivery: MOXA EDR-810-2GSFP, power supply, quick installation guide, documentation, and software CD.
9. Moxa EtherDevice Switch EDS-316-M-ST-T - Switch
The Moxa EtherDevice Switch EDS-316-M-ST-T is an industrial unmanaged Ethernet switch designed for use in demanding network environments. With 16 network ports, including 15 RJ45 ports for 10/100 Mbps and one 100Base-FX port, this switch offers a flexible solution for connecting devices in industrial applications. The switch is suitable for DIN rail mounting, making installation in various environments easier. Thanks to its robust construction and high reliability, the EDS-316-M-ST-T is ideal for use in automation technology and other industrial applications where a stable network connection is required. The switch supports multi-mode applications and is manufactured for use in Taiwan.
- 16 network ports, including 15 x 10/100 Mbps RJ45 and 1 x 100Base-FX
- Unmanaged design for easy installation and operation
- DIN rail mounting for flexible deployment options.

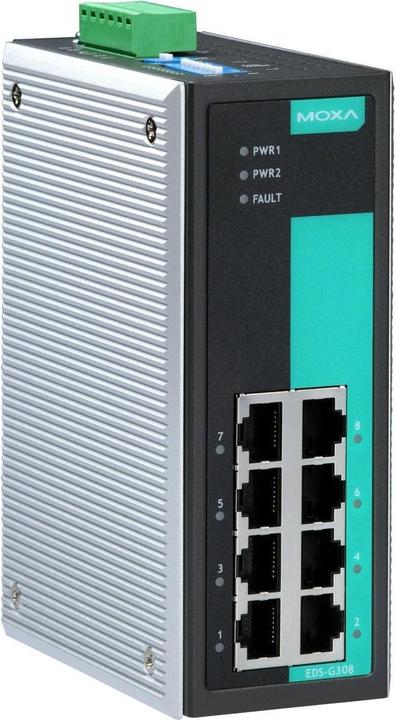

10. Moxa EDS-G308: 8 Port Switch 1Gbps
Unmanaged Gigabit Switch for Ethernet
Eight ports with one Gbps speed each
Power supply can be redundant (two 12/24/48 VDC power connections)
With Broadcast Storm Protection
Delivery without power supply unit
With the EDS-G308 from Moxa, you get an unmanaged Ethernet switch with eight Gigabit Ethernet ports, allowing you to access high bandwidth for your applications. The switch provides an economical solution for your industrial Gigabit Ethernet connections and the integrated relay warning function alerts network managers in the event of power or port failures.
Use in industrial environments
The extended temperature range in which the DIN-Rail Switch with aluminium housing can be operated ranges from 0 to 60 °C, making it also suitable for use in industrial environments. All models undergo a 100% burn-in test to ensure that they meet the specific requirements of control applications in industrial automation. For industrial use, DIN rail mounting and installation of the switch in distribution boxes is easily possible.
