1. Exsys EX-60111
2.5 Gigabit LAN PCIe Card The EX-60111 is a 2.5 Gbit Ethernet card for the PCI-Express bus. It supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000/2500 Mbit/s). Additionally, the EX-60111 automatically detects crossover cables and offers extensive support for various operating systems. The card comes with a low-profile bracket for installation in a slim PC case.
2. Exsys GmbH Dual PCIe network card 2.5 Gigabit
Dual 2.5 Gigabit PCIe Network Card
The EX-60112 is a 2.5 Gigabit Ethernet card with two RJ45 ports for the PCIe bus. It supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000/2500 Mbps). Additionally, the card is equipped with Auto-MDI/MDI-X and offers comprehensive support for various operating systems. A low profile bracket is included with the card to facilitate installation in a slim PC case.
3. Exsys PCI-EXPRESS Ehternet card 1 port incl. low profile bracket, Realtek chipset
The EX-6081 is a 2.5 Gigabit Ethernet card designed for the PCIe bus. It supports a data transfer rate of up to 2.5 Gbps. The EX-6081 supports both half and full duplex, as well as NWay Auto-Negotiation, allowing it to automatically adjust to the network speed (10/100/1000/2500 Mbps). Additionally, the card is equipped with Auto-MDI/MDI-X and offers comprehensive support for various operating systems. A low profile bracket is included with the card, enabling installation in a slim PC case.
- Supports 10/100/1000/2500 Base-T Ethernet standard
- Supports 1-lane 2.5/5 Gbps PCI Express bus
- Fully compatible with PCI Express version 2.1
- Supports 2.5G Lite (1G data transfer rate) mode
- Supports Jumbo Frame up to 16 KBytes, Pair Swap/Polarity/Skew Correction
- Auto-Negotiation with Extended Next Page (XNP) capability
- Supports Auto-MDI/MDI-X Auto (for crossover cables)
- Hardware ECC and CRC function
- Supports IEEE 802.3az-2010 Energy Efficient Ethernet (EEE)
- Microsoft NDIS5, NDIS6 (IPv4, IPv6, TCP, UDP) support for checksum and segmentation task offload (Large Send and Giant Send)
- Supports IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.1Q VLAN, and IEEE 802.1ad Double VLAN
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging
- Supports Virtual Machine Queue (VMQ) for Windows Server Hyper-V installed systems
- Wake-on-LAN and 'RealWoW!' technology (Remote Wake-up)
- LED indicator for data transfer mode
- Supports low profile for slim PC cases up to 8 cm in height
- Chipset: Realtek RTL8125B
Package contents:
EX-6081, low profile bracket, driver CD, manual.
Network cards
CHF47.70
Exsys PCI-EXPRESS Ehternet card 1 port incl. low profile bracket, Realtek chipset
PCI-E x1
4. Exsys GmbH Dual PCIe network card 2x 1Gigabit
The EX-60102 is a Gigabit Ethernet card with two RJ45 ports for the PCI Express bus. It supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000 Mbps). Additionally, the EX-60102 automatically detects crossover cables and offers comprehensive support for various operating systems. A low-profile bracket is included with the card to facilitate installation in a slim PC case.
Main features:
- Connections and interfaces:
- Transmission technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Number of Ethernet LAN ports (RJ-45): 2
- Maximum data transfer rate: 1000 Mbps
- Network standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Built-in Ethernet port: Yes
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data transfer rates: 10, 100, 1000 Mbps
- Cabling technology: 10/100/1000BaseT(X)
- WLAN: No
- Wake-on-LAN ready: Yes
- Full duplex: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Design: Built-in: Yes
- Component for PC
- Product color: Green, Gray
- Chipset: Realtek RTL8111F
- LED indicators: Yes
- Country of origin: China
- Certification: FCC
System requirements:
- Supports Windows operating systems: Yes
- Supported Linux operating systems: Yes
Operating conditions:
- Relative humidity in operation: 5 - 90%
Sustainability:
- Sustainability compliance: Yes
- Sustainability certificates: CE
Weight and dimensions:
- Width: 67 mm
- Depth: 76 mm
- Weight: 120 g
Delivery contents:
- Mounting brackets included: Yes
- Operating manual: Yes.
5. Exsys EX-6072-3:2x1Gbps PCIx1 network card
The EX-6072-3 is a fast dual Gigabit Ethernet card designed for the PCI Express bus. It supports a data transfer rate of up to 1000 Mbit per second per port. The EX-6072-3 supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000 Mbit/s). Additionally, the card is equipped with Auto-MDI/MDI-X. It also offers comprehensive support for various operating systems. A low-profile bracket for installation in a slim PC case is included with the card.
Supports 10/100/1000 Base-T Ethernet standard
Supports Auto-MDI/MDI-X auto (for crossover cables)
Supports jumbo frames up to 9 KBytes, pair swap/polarity/skew correction
Wake-on-LAN and remote wake-up
Supports full duplex flow control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.1P layer 2 priority encoding
48 KB buffer transmit/receiver chip
LED indicator for data transmission
Chipset: 2x Realtek RTL8111E
Package contents:
EX-6072-3, low-profile bracket, driver CD, manual.
6. Exsys EX-6074POE-2
The EX-6074PoE-2 is a fast Quad Gigabit Ethernet PCIe card. It can supply devices such as IP phones, IP cameras, or Wi-Fi access points with power through the network cable using a voltage of 48 VDC. This means that the devices do not require additional power outlets or expensive PoE-supporting switches. The EX-6074PoE-2 offers a cost-effective solution with a maximum power output of 34.20 W and a data transfer rate of up to 1000 Mbit/s. Various devices can be powered directly through the data lines, saving costs and increasing flexibility in where the devices can be installed. The EX-6074PoE-2 supports half and full duplex as well as Nway Auto-Negotiation to automatically adjust to the network speed (10/100/1000 Mbit/s). Additionally, the card is equipped with Auto-MDI/MDI-X.
- Supports four PoE Gigabit Ethernet ports with 15.40 W or 30.20 W
- Powers network devices through the data line
- Supports 10/100/1000 Base-T Ethernet standard
- Fully compatible with IEEE 802.3at PoE+ (PSE) Type 1 and 2 operation
- Maximum output power: Type 1 = 15.40 W / Type 2 = 30.20 W
- Supports Auto-MDI/MDI-X Auto (for crossover cables)
- Supports Pair Swap/Polarity/Skew Correction
- Wake-on-LAN and Remote Wake-up
- Supports Full Duplex Flow Control (IEEE 802.3x)
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding
- 48 KB Buffer Transmit/Receiver Chip / LED display for data transmission
- Chipset: 4x Realtek RTL8111G
Package contents:
EX-6074PoE-2, driver CD, manual.
7. Exsys PCI-EXPRESS Ethernet card ASM1806(Asmedia),RTL8111G,LP
The EX-6074-3 is a fast quad (four-port) Gigabit Ethernet card for the PCIe x4 to x16 bus. A Realtek chip is used for each port. It supports a data transfer rate of up to 1000 Mbps per connection. The EX-6074-3 supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000 Mbps). Additionally, the card is equipped with Auto-MDI/MDI-X and offers extensive support for various operating systems. A low-profile bracket is included with the EX-6074-3 for slim computers up to 8 cm in height.
Supports 10/100/1000 Base-T Ethernet standard
Supports PCI-Express x4 to x16 bus specification Rev. 2.0
Supports Auto-MDI/MDI-X Auto (for crossover cables)
Supports Jumbo Frame up to 9 KBytes
EEE (Energy Efficient Ethernet)
Wake-on-LAN and Remote Wake-up
Supports Full Duplex Flow Control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding
48 KB Buffer Transmit/Receiver chip
LED indicator for data transmission
Standard Cat.6A cabling with RJ45 connectors
Chipset: 4x Realtek RTL8111G
Package contents:
EX-6074-3, low-profile bracket, driver CD, manual.

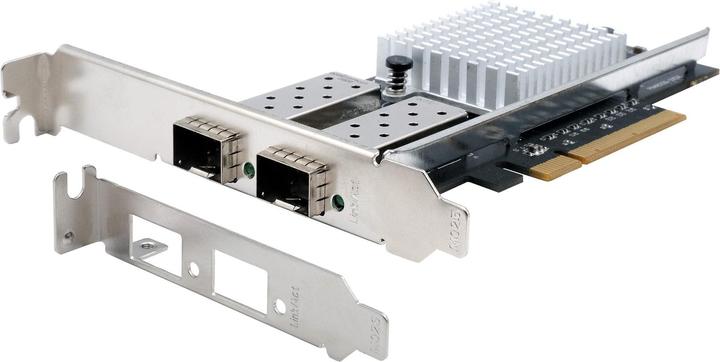

8. Exsys PCI-E Card Netzwerk SFP+ 2x 10 Gbit/s (Intel)
The EX-60232 is a 10 Gigabit network controller with two SFP+ slots for the PCIe bus. It enables fast and reliable 10 Gbps network access over greater distances than copper-based networks. With the SFP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fiber optic network. The Intel Ethernet controller used ensures the highest quality and reliability.
It supports common 10GbE SFP+ optical and Direct Attach Copper modules. Supports 8-Lane 2.5 + 5 GT/s PCI Express Bus. Fully compatible with PCI Express 2.0. Supports Jumbo Frames up to 9 KBytes. Automatic Cross-Over detection (MDI/MDI-X). 802.1q VLAN support. Supports Legacy and Message Signal Interrupt (MSI/MSI-X). IEEE 802.3 Auto-Negotiator - Automatic link configuration for speed, duplex, and flow control. IP, TCP, and UDP checksum offloading functions (IPv4, IPv6). IEEE 802.3az - Energy Efficient Ethernet (EEE). Active State Power Management (ASPM), MAC Power Management Control. Lower CPU utilization and improved throughput. Original Intel chipset, brand new, no refurbished or B-stock. Chipset: Intel JL82599ES.
Package includes: EX-60232, Low Profile bracket, manual.
9. Exsys EX-6072-4k, Dual Ethernet Card
The EX-6072-4K is a fast dual Gigabit Ethernet card designed for the PCIe bus. It supports a data transfer rate of up to 1000 Mbps per port. The EX-6072-4K features optical isolation of up to 4 kV for each port. It supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000 Mbps). Additionally, the card is equipped with Auto-MDI/MDI-X. It also offers extensive support for various operating systems. A low-profile bracket is included for installation in a slim PC case.
Supports 10/100/1000 Base-T Ethernet standard
Supports 4 kV optical isolation for each output
Supports Auto-MDI/MDI-X Auto (for crossover cables)
Supports Jumbo Frame up to 9 KBytes, Pair Swap/Polarity/Skew Correction
Wake-on-LAN and Remote Wake-up
Supports Full Duplex Flow Control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding
48 KB Buffer Transmit/Receiver Chip
LED indicator for data transmission
Chipset: 2x Realtek RTL8111E
Package contents:
EX-6072-4K, low-profile bracket, driver CD, manual.
10. Exsys EX-6061-2 Network adapter
Short info: Exsys EX-6061-2 - Network Adapter - PCIe x4 Low Profile - 10GBase-T Group Network Adapters Manufacturer Exsys Product Art. No. EX-6061-2 Model EX-6061-2 EAN/UPC 4718359606151 Product Description: Exsys EX-6061-2 - Network Adapter Device Type Network Adapter Form Factor Plug-in Card - Low Profile Interface Type (Bus Type) PCI Express x4 Ports 10GBase-T Dimensions (Width x Depth x Height) 8.2 cm x 5.6 cm Weight 200 g Wiring type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T Data Link Protocol 10Mb LAN, 100Mb LAN, GigE, 10 GigE Data transfer rate 10 Gbps Processor 1 x TN4010 / AQR105 - Tehuti Product certifications IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x System Requirements Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, VMware ESXi 5.1, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Linux Kernel 2.6.24 or later Detailed Details General Device Type.
