Best selling Network adapters from Moxa
On this page you’ll find a ranking of the best Network adapters from Moxa. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Moxa NPort 5110, Ethernet Serial Device Server (1-port RS-232)
The industrial NPort 5110 device server is suitable for the immediate integration of a serial device into a network. The compact size of the server makes it a good choice for connecting devices such as card readers and payment terminals to an IP-based LAN.
Customizable resistors, management via web, Telnet, or Windows utility, support the following network protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP.
2. Moxa UPort 1110 USB Serial Converter Cable
The USB-to-Serial Converter UPort 1110 is a convenient addition for laptops without a serial port. It converts USB to RS-232 and is compatible with both new and older RS-232 devices.
Supported operating systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0.
3. Moxa EDR-810
The EDR-810 is a highly integrated industrial multiport security router with firewall/NAT/VPN and managed layer 2 switch functions. Designed for Ethernet-based security applications in critical remote control or monitoring networks, it provides an electronic security perimeter to protect critical cyber assets, including pump-and-treat systems in water stations, DCS systems in oil and gas applications. and PLC/SCADA systems in factory automation. The EDR-810 series includes the following cyber security features:
The EDR-810's "WAN Routing Quick Setup" provides users with an easy way to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810's "Quick Automation Profile" provides engineers with an easy way to configure the firewall filter function with common automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus and PROFINET. Users can easily create a secure Ethernet network with a single click via a user-friendly web interface, and the EDR-810 is capable of comprehensive Modbus TCP packet inspection. Wide temperature range models are also available that operate reliably in hazardous environments from -40 to 75 °C.

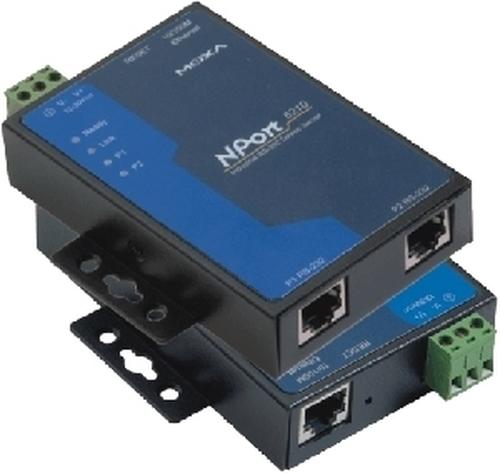

4. Moxa NPort 5210, LAN RS232 Server, 2 Port
Serial 2-Port RS-232 Device Server. Compact size for easy installation. Versatile socket operating modes, including TCP server, client, and UDP. Simple cross-device configuration via Windows utility. 10/100 Mbps LAN support, SNMP MIB-II for network management. 15 kV ESD protection for all serial signals. The Moxa NPort 5210 device server is designed to network-enable serial devices in no time, allowing your PC software to access serial devices directly from anywhere on the network. Its compact design allows for maximum flexibility in choosing the installation location. It offers versatile operating modes including TCP server and client as well as UDP, ensuring compatibility with network software based on standard network APIs. Multiple device servers can be centrally configured using the easy-to-use Windows utility. Flexible control of serial remote devices and Real COM/TTY drivers. The NPort 5210 comes with Real COM/TTY drivers, enabling seamless and direct integration of software for communication with COM/TTY ports into a TCP/IP network, even with older versions of Windows and Linux. Alternatively, control of the serial devices can also be done via TCP/IP. In this case, simply providing the IP address and port number of the device server grants access to the connected serial devices from any TCP/IP-capable host computer using a network socket API.
5. Moxa 45MR-2601 - Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, source, -20 to 60C operating
The 45MR-2601 module is part of Moxa's ioThinx 4500 series and provides a reliable solution for digital outputs in industrial applications. With 16 digital output channels requiring a supply voltage of 24 VDC, this module is ideal for controlling and automating processes. It is designed for operation in a temperature range of -20 to 60 °C, making it suitable for various environments. Installation is straightforward on a DIN rail, and connections are made via spring Euroblock terminals. The module supports both standard digital outputs and pulse outputs for the first four channels, offering additional flexibility. With a high insulation rating of up to 3 kVDC, it is also well protected against electrical disturbances.
- Operating temperature range of -20 to 60 °C for versatile applications
- Supports pulse outputs for the first four channels
- High insulation of 3 kVDC for enhanced safety
- Easy mounting on DIN rail for hassle-free installation
- Certified to various standards for electromagnetic compatibility and safety.
Network adapters
CHF229.–
Moxa 45MR-2601 - Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, source, -20 to 60C operating
6. Moxa 45MR-3800-T - Module for the ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA, -40 to 75C
Module for the ioThinx 4500 series, featuring 8 analogue inputs with a range of 0 to 20 mA or 4 to 20 mA, and an operating temperature of -40 to 75°C.
Input/output interface:
- Analogue input channels: 8
- Isolation: 3 kV DC or 2 kV RMS
Analogue inputs:
- Connection: Spring-Euroblock-Terminal
- I/O mode: Current
- I/O type: Differential
- Resolution: 16 bit
- Input range:
- 0 to 20 mA
- 4 to 20 mA
- 4 to 20 mA (with burn-out detection)
- Accuracy:
- ±0.1% FSR @ 25°C
- ±0.3% FSR @ -40 and 75°C
- Sampling rate:
- All channels: 100 samples/sec
- Per channel: 12.5 samples/sec
- Single channel: 100 samples/sec
- Input impedance: 120 Ohm
Power consumption:
- System power: 197.3 mA @ 3.3 V DC
Physical characteristics:
- Housing: Plastic
- Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
- Weight: 79.8 g (0.176 lb)
- Installation: DIN rail mounting
- Stripping length: I/O cable, 9 to 10 mm
- Wiring: 18 to 24 AWG
Ambient conditions:
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature (including packaging): -40 to 85°C (-40 to 185°F)
- Relative humidity: 5 to 95% (non-condensing)
- Altitude: Up to 4000 metres
Standards and certifications:
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
- IEC 61000-4-6 CS: 3 V
- IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Safety: UL 61010-2-201
- Hazardous areas: ATEX, Class I Division 2
Declaration:
- Environmentally friendly product: RoHS, CRoHS, WEEE
MTBF:
- Time: 2,085,426 hours
- Standards: Telcordia SR332.
Network adapters
CHF599.–
Moxa 45MR-3800-T - Module for the ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA, -40 to 75C
7. Moxa ioLogik E2212
Moxa's Ethernet Remote I/O from the ioLogik E2200 series is a PC-based data acquisition and control device that utilizes proactive, event-driven reporting for controlling I/O devices and features the Click & Go programming interface. Unlike traditional PLCs, which are passive and require polling for data, the Moxa ioLogik E2200 series communicates with SCADA systems through active messaging in conjunction with our MX-AOPC UA server, sending messages to the server only when status changes or configured events occur. Additionally, the ioLogik E2200 includes SNMP for communication and control using a Network Management System (NMS), allowing IT professionals to configure the device to transmit I/O status reports according to specified configurations. This exception reporting approach is new for PC-based monitoring. Package includes: MOXA ioLogik E2212, quick installation guide.
8. Moxa 45MR-4420-T - Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA
Moxa's advanced controllers and I/O products simplify the realization of complex IIoT applications such as energy management, factory machine management, transportation management, and remote asset management through expandable communication and high-performance data acquisition and control capabilities. Use the ioThinx 4500 Series Power Calculator to determine how many power modules are needed for your application.
Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA, -40 to 75°C operating temperature.
Input/Output Interface
- Analog Output Channels: 4
- Isolation: 3 kVDC or 2 kVrms
- Analog Outputs:
- Connector: Spring-type Euroblock terminal
- I/O Mode: Voltage/Current
- Output Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
- Resolution: 12-bit
- Accuracy:
- ±0.1% FSR @ 25°C
- ±0.3% FSR @ -40 to 75°C
- Load (Current Mode):
- Internal power: 500 ohms (max.)
- Load (Voltage Mode): 1000 ohms (min.)
- Power Consumption:
- System Power: 44 mA @ 3.3 VDC
- Field Power:
- 220.2 mA @ 12 VDC
- 122.3 mA @ 24 VDC
Physical Characteristics
- Housing: Plastic
- Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
- Weight: 79 g (0.175 lb)
- Installation: DIN-rail mounting
- Strip Length: I/O cable, 9 to 10 mm
- Wiring: 18 to 24 AWG
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: Up to 4000 meters
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
- IEC 61000-4-6 CS: 3 V
- IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Safety: UL 61010-2-201.
Network adapters
CHF709.–
Moxa 45MR-4420-T - Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA
9. Moxa A52-DB25F W/O ADAPTER - RS-232422485 converter with DB25F cable
The A52-DB25F W/O ADAPTER from Moxa is a versatile RS-232/422/485 converter equipped with a DB25F cable. This device enables reliable serial communication across various standards and is ideal for applications that require robust data transmission. With two ports, the converter offers flexibility in connecting devices. The Automatic Data Direction Control (ADDC) ensures efficient handling of data streams, while flow control via RTS/CTS guarantees stable communication. Designed for desktop use, it features a compact, lightweight design that allows for easy integration into existing systems. Additionally, it is suitable for operation in a wide temperature range, making it a reliable choice for various environments.
- Supports serial standards RS-232, RS-422, and RS-485
- Automatic Data Direction Control (ADDC) for efficient data transmission
- Flow control via RTS/CTS to ensure stable connections
- Robust plastic housing with IP30 protection rating
- Operating temperature range of 0 to 55°C for versatile applications.
Network adapters
CHF68.90
Moxa A52-DB25F W/O ADAPTER - RS-232422485 converter with DB25F cable
RJ45, RS-232, RS-422/485
10. Moxa 86M-2604D-T
The 86M modules of the ioPAC 8600 series from Moxa include isolated DIs from channel to channel, isolated DOs from channel to channel, relays, and AOs, providing even more I/O options for devices in the ioPAC 8600 series. In combination with the 85M modules, users have a wide range of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for applications in the railway industry and comply with EN 50121-3-2, EN 50121-4, and all testing points required by EN 50155. Additionally, these modules all support a wide operating temperature range of -40 to 75 °C for reliable operation even in harsh environments. Package includes: Moxa 86M-2604D-T.
