Best selling Motion sensors from Esylux
On this page you’ll find a ranking of the best Motion sensors from Esylux. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Esylux Motion detector MDC360i/24
Motion detector with a 360° detection range for ceiling mounting. Large range of up to 24 m in diameter at a recommended installation height of 3 m for various applications. 16 A high-performance relay, specifically designed for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. Ideally suited for installation at heights up to 5 m, such as in sports halls and warehouses. Automatic light control for applications with little to no daylight. Easy programming via remote control with "blue mode" technology or through adjustment elements. Integrated switch for setting via remote control or adjustment knob to prevent misuse and provide sabotage protection. Factory-set program for immediate operational readiness. Suppression of interference sources by reducing sensitivity via DIP switch.
2. Esylux Motion detector 280 degrees RC 280i br
Motion detector with a 280° detection area and long range. It features 360° anti-creep protection for gapless detection, which can be switched off by remote control. The device is programmable via remote control, allowing for continuous light ON/OFF and an automatic read-in function for the current light value. A permanently stored factory program ensures immediate readiness for operation. An integrated selector switch prevents operating errors by allowing selection between test function, remote control, and potentiometer setting. The one-hand plug-in base mounting and double diaphragm line entry facilitate installation. The concealed connection base offers a large wiring space, and sensor range adjustment is aided by an additional focus LED. Retractable adjustment elements prevent unintentional parameter changes. Wall or ceiling mounting is possible without accessories, thanks to the swivel joint. Individual areas can be concealed using the enclosed cover cap, which can be cut to size as needed. A special base for inside and outside corner mounting is included.
3. Esylux Presence detector PDC360i/24 DUOplusSM weissAP
Presence detector with a 360° detection range for surface-mounted ceiling installation. Range of up to 24 m in diameter at a recommended mounting height of 3 m, allowing for independent control of two lighting zones (window area and interior area) based on presence and daylight. Additional switching contact (Channel 3) for HVAC to control another light source or to manage heating, ventilation, and air conditioning depending on presence. Both lighting channels and the HVAC contact are equipped with 16 A high-performance relays (tungsten pre-contact), specifically designed for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. Ideally suited for installation in high spaces up to 10 m, such as in sports halls, warehouses, etc. Factory preset program for immediate operational readiness. Easy programming via remote control with "blue mode" technology or via adjustment elements. Integrated.
4. Esylux Presence detector PDC360i/24 DRY
Presence detector with a 360° detection range for ceiling mounting. Range of up to 24 meters in diameter at a recommended mounting height of 3 meters. Automatic light control with 2 potential-free relay contacts for switching lighting on separate phases or via a 230 V emergency power supply, depending on presence and daylight. Ideally suited for installation at heights of up to 10 meters, such as in sports halls, warehouses, etc. Factory preset program for immediate operational readiness. Easy programming via remote control with "blue mode" technology or via adjustment elements. Integrated switch for setting via remote control or adjustment knob - prevents incorrect operation and acts as sabotage protection. Suppression of interference sources by reducing sensitivity via DIP switch. Additional button input with toggle function "Room = ON + OFF/Hallway = ON". The detector can be used as a full or semi-automatic device.

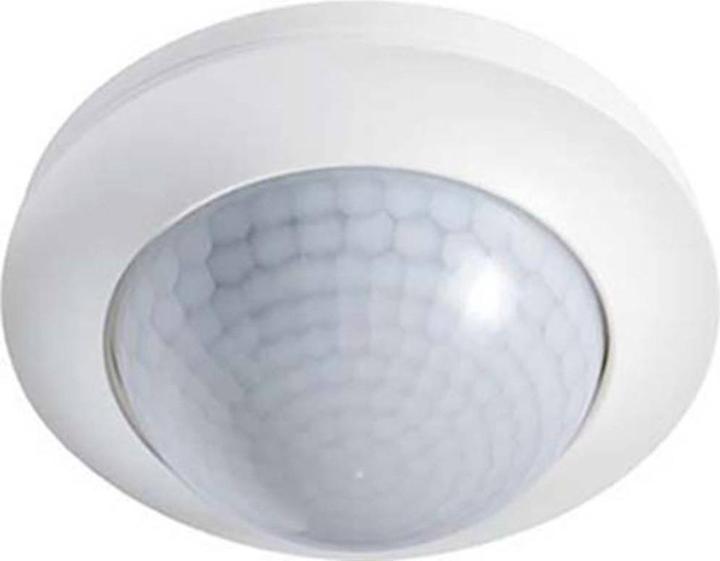

5. Esylux Presence detector
KNX ceiling-mounted presence detector with a 360° detection range. Range of up to 32 m in diameter at a recommended installation height of 2.5 m for comfort applications. Usable in the KNX EIB bus system, TP 2-wire bus in conjunction with other KNX components. Parameter and function settings via the ETS Engineering Tool software. Optimal with the "Switching" function for installation at heights up to 10 m, such as in sports and storage halls. Manual, temporary switching and dimming via user remote control. Complete listing of communication objects available upon request. Constant light regulation or switching. Heating, ventilation, and air conditioning (HVAC). Blocking object for heating, ventilation, and air conditioning (HVAC). Light output 2 bytes. Status message. Presence output for heating, ventilation, and air conditioning (HVAC). Usable as "Master" or "Slave". KNX button control for light channels. Full or semi-automatic. Orientation light with selectable light values of 10 - 50%. Test operation. Correction factor for room light. Alarm output. Standard version as a flush-mounted device. Sensor sensitivity range up to 4 m. Surface-mounted or ceiling-mounted installation possible with accessories. Cover plate and design ring easily interchangeable and paintable in silver color available as an accessory. Targeted masking of areas using the included lens mask. PD-C 360i32 KNX.
6. Esylux Presence detector PDC360i/24 DUO DALI
Presence detector with a 360° detection range for ceiling mounting. Range of up to 24 m in diameter at a recommended installation height of 3 m. Automatic light control of DALI or DSI electronic ballasts to maintain a constant brightness level depending on presence and daylight (with DALI/DSI output). Factory-set program for immediate operational readiness. Easy programming via remote control with "blue mode" technology or through adjustment elements. Integrated switch for setting via remote control or adjustment knob - prevents incorrect operation and acts as sabotage protection. Additional button input per channel. The detector can be used as a full or semi-automatic device. Reduction of light output after the time delay as orientation light for corridors and passage areas, adjustable between 10-50%. Integrated switch-off warning. Standard version as a flush-mounted device. Surface-mounted or ceiling installation with accessories. Cover plate.
7. Esylux Esyluxpresence detectorPDCE360i/24opalmatt24m
Presence detector with 360° detection range for recessed ceiling mounting. Range of up to 24 m in diameter for use in offices, classrooms, conference rooms, and passage areas with daylight. Ideally suited for installation at great heights up to 10 m, such as sports halls and warehouses. 16 A high-power relay, especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. Automatic light control depending on presence and daylight. Programmable by remote control, including continuous light ON/OFF and automatic read-in function of the current light value. Permanently stored factory program ensures immediate operational readiness. Additional pushbutton input for individual manual switching of the lighting. Detector can be used as fully or semi-automatic. Extension of the detection range by connecting additional units.
8. Esylux Präsenz- und Bewegungsmelder
KNX recessed ceiling-mounted presence detector with 360° detection area. Range of up to 24 m in diameter with a recommended installation height of 3 m for comfort applications. Can be used in the KNX (EIB) bus system, TP (2-wire bus) in conjunction with other KNX components. Parameter and function setting via the ETS (engineering tool software). Optimally suited with the "Switching" function for installation at great heights of up to 10 m, e.g. sports halls and warehouses. Manual, temporary switching/dimming via user remote control. Communication objects (complete list of communication objects at www.esylux.com).
9. Esylux Motion detector RC 280i
Motion detector with a 280° detection area and long range. It features 360° anti-creep protection for gapless detection, which can be switched off by remote control. The device is programmable via remote control, allowing for continuous light ON/OFF and an automatic read-in function of the current light value. A permanently stored factory program ensures immediate readiness for operation. The integrated selector switch prevents operating errors by allowing for test function, remote control, or potentiometer setting. It includes a one-hand plug-in base mounting and double diaphragm line entry. The concealed connection base offers a large wiring space. Sensor range adjustment is facilitated by an additional focus LED as an adjustment aid. Retractable adjustment elements prevent unintentional parameter changes. Wall or ceiling mounting is possible without accessories, thanks to the swivel joint. Individual areas can be concealed using the enclosed cover cap, which can be cut to size. A special base for inside and outside corner mounting is included.
10. Esylux Presence detector universal DALI
Presence detector with a 360° detection range for ceiling mounting. Range of up to 24 m in diameter at a recommended installation height of 3 m. Easy networking and interoperability according to DALI 2 standard. A universal device for all requirements of intelligent lighting control, including HVAC devices in the room. Option to create your own (large) project libraries by saving, managing, retrieving, and cloning the settings of each individual device.
