Best selling Motion sensors from Eltako
On this page you’ll find a ranking of the best Motion sensors from Eltako. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

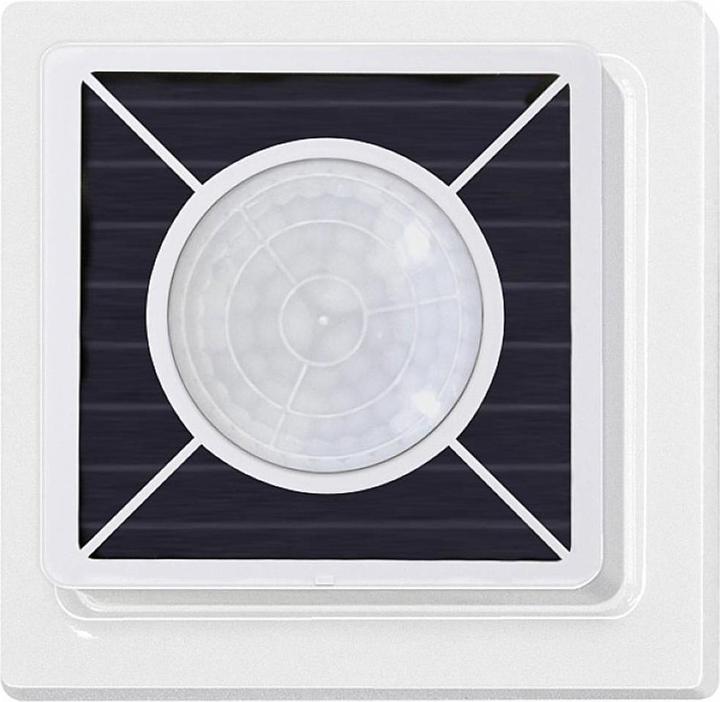

1. Eltako FABH65S-wg Wireless Sensor Outdoor Motion Brightness Sensor 3006585
Wireless outdoor motion brightness sensor, 84x84x39 mm, with solar cell. Smart Home Sensor. In its initial state, the energy storage is empty and must be charged in bright daylight for about 10 hours. Under normal ambient brightness (at least 200 Lux on average during the day), the energy from the integrated solar module is sufficient to power the sensor. The energy reserve stored in capacitors provides the energy needed for nighttime operation. The sensor does not require any installation depth behind the mounting plate and can be screwed onto any flat surface. The entire module can be pulled out of the frame for mounting. We recommend using stainless steel countersunk screws 2.9x25 mm, DIN 7982 C for attachment. It is compatible with both dowels 5x25 mm and 55 mm switch boxes. Two stainless steel countersunk screws 2.9x25 mm and dowels 5x25 mm are included. To pair with an actuator in learning mode, hold the included blue magnet or another available magnet against the side wall below the area marked with a square on the sensor. This will send a learning telegram. The sensor measures from 0 to 2000 Lux and sends a message to the Eltako building radio every 100 seconds when there is a brightness change of at least 10 Lux. Motion detection is immediately sent twice. The off message is sent after a fixed fallback delay of 1 minute. If there is no change, a status message is sent approximately every 20 minutes. During the learning process with actuators, the switching threshold is set, determining when the lighting will be turned on or off based on brightness. If a FABH detects motion, it will turn on. Only when all FABH learned into an actuator report no motion for one minute does the actuator's fallback delay potentially begin. Caution! When wall mounting, the FABH65S must be installed with the openings facing downwards.

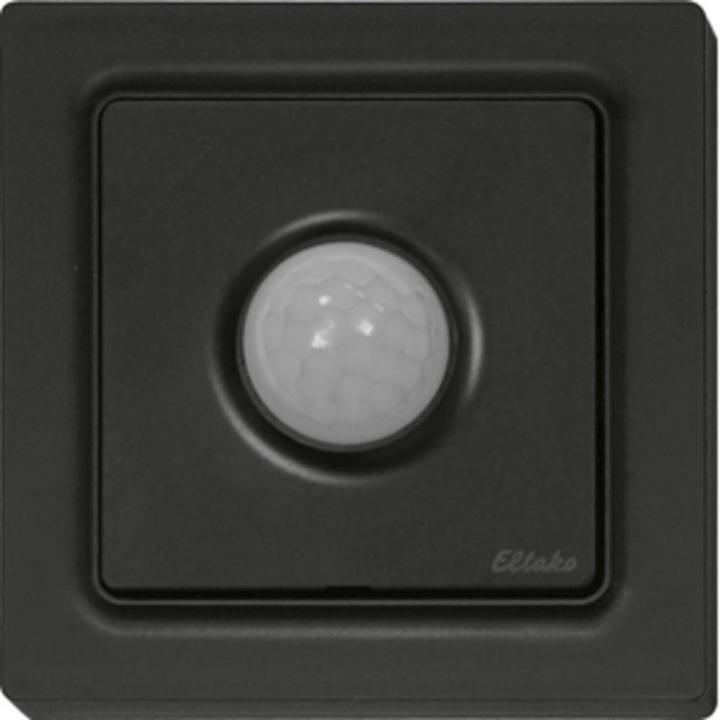

2. Eltako FB55B-am
Radio motion sensor for surface mounting 80x80x27 mm or installation in the E-Design55 switch system. Powered by a battery (lifetime 3 years). The FB55B sends a motion telegram every 2 minutes when movement is detected. If no movement is detected, a non-motion telegram is sent after 4 minutes. If movement is still not detected, a non-motion telegram is sent every 30 minutes. In the factory setting, the upper slide switch is set to P (passive), and light actuators and dimmers automatically turn off if no new movement is detected for 5 minutes. Activation is done with the light switch. With the upper slide switch in position A (active), automatic motion-dependent activation is enabled. The lower slide switch allows the sensitivity to be selected. H = high (factory setting) or L = low. The power supply for several years is provided by an internal 3V CR2032 button cell. To change the button cell, simply remove the front panel. The radio sensor can be integrated with the following actuators and the Professional Smart Home Controller: FSR14, FSR61, FSR71, FTN14, FUD14, FUD61, FUD71, FZK14, FZK61, FD62, FL62, FSLA.
3. Eltako FABH130/230V-rw Wireless motion detector Surface-mounted Switching capacity (max.) 2300W Max. range
Eltako FABH130/230V-rw Radio outdoor-.
Motion sensors
CHF123.–
Eltako FABH130/230V-rw Wireless motion detector Surface-mounted Switching capacity (max.) 2300W Max. range
12 m
4. Eltako FBH55-al Wireless motion/brightness sensor
ELTAKO FBH55-al wireless motion/brightness sensor (30000461).
5. Eltako FBH55ESB-pg Motion detector surface-mounted
The FBH55ESB-pg motion detector from Eltako is an innovative wireless motion and brightness sensor designed for both standalone installation and integration into the E-Design55 switch system. With compact dimensions of 80 x 80 x 27 mm, it offers a flexible solution for monitoring movements indoors. The sensor is equipped with solar cells and features a battery life of 4 to 5 years, making it a sustainable choice for modern smart home applications. The FBH55ESB-pg is compatible with a variety of actuators and can be easily integrated into existing systems to enable efficient control of lighting and other devices. With a detection angle of 30 degrees, it is ideal for targeted applications and ensures reliable motion detection.
- Solar-powered energy source with long lifespan
- Compatible with a variety of actuators and control systems
- Suitable for indoor installation
- Easy integration into smart home systems.

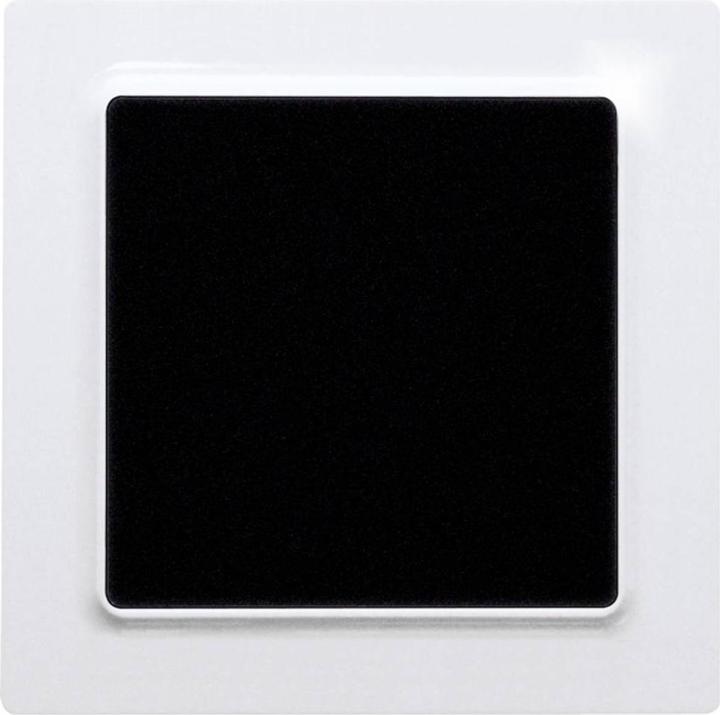

6. Eltako ELTA wireless proximity sensor
1-channel radio proximity sensor with NanoPower technology in E-design. The dimensions are 80x80mm externally, the inner frame size is 55x55mm, and the height is 15mm. Thanks to the NanoPower technology, the battery has a lifespan of up to 30 years. By bringing your hand close and then moving it away at about 10 cm, this proximity sensor sends radio telegrams like a 1-channel radio button. The mounting plate can be screwed above a device box with a screw distance of 60mm or onto a flat surface. With the included adhesive film, the radio proximity sensor can be attached to the wall, glass, or furniture.
7. Eltako ELTA wireless motion sensor
ELTAKO FBH55-wg Wireless motion/brightness sensor (30000465).

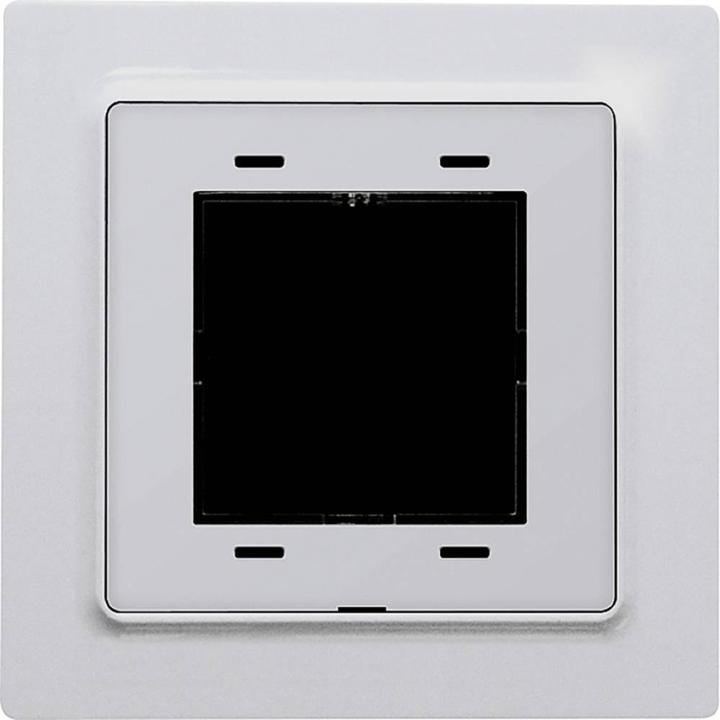

8. Eltako Radio multisensor pure white glossy FMS55ESB
Eltako Wireless Multi-Sensor FMS55ESB
Manufacturer: Eltako
Designation: Wireless Multi-Sensor pure white glossy
Type: FMS55ESB
Radio Frequency: 868 MHz
Rolling Code System: no
Range: 30 m
With Remote Control: no
Flush-mounted Push Button: no
Surface-mounted Push Button: no
With Wireless Coding Device: no
Protection Class (IP): IP20
Keypad Protection Cover: no
Power Supply: other
Eltako Wireless Multi-Sensor FMS55ESB: additional details
Wireless multi-sensor for single installation 80x80x14 mm or installation in the E Design55 switch system. With integrated solar cell and CR1632 battery (not included). This multi-sensor has temperature, humidity, light, and acceleration sensors integrated into one housing. It transmits all data via EnOcean radio to the Eltako building radio system. The integrated solar cell generates the required energy from ambient light indoors. This energy is stored internally, allowing the multi-sensor to operate for several days without light. The multi-sensor features an NFC interface, which allows it to be configured with the free EnOcean Tool app and an NFC-enabled smartphone or tablet. In the default state, the EEP: D2-14-41 is active, which includes data from all sensors. Through the NFC interface, the parameters of the sensors can be changed, and individual EEPs can be selected: D2-14-40, A5-04-01, A5-04-03, A5-02-05, A5-06-02, A5-06-03, or A5-14-05.
EAN: 4010312321799.

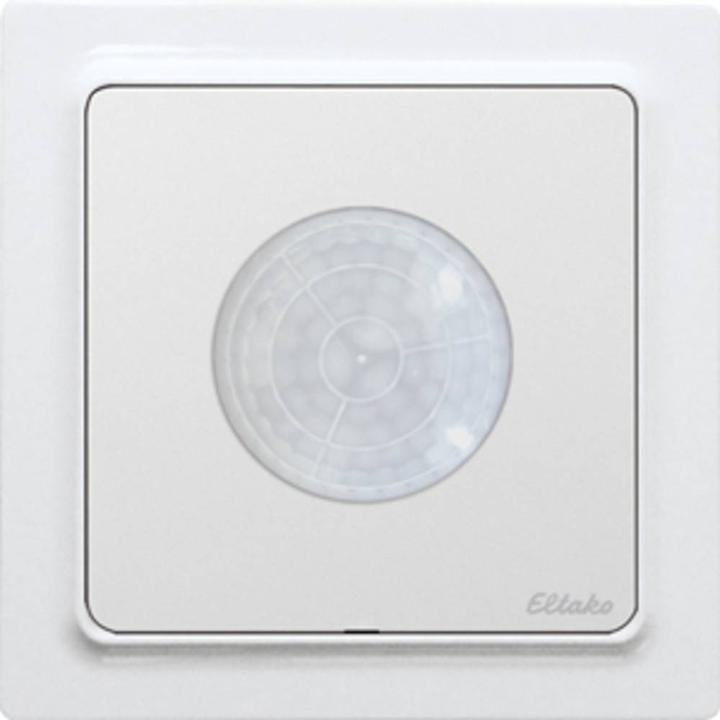

9. Eltako FB55B-wg
Wireless motion sensor for surface mounting 80x80x27 mm or installation in the E-Design55 switch system. Powered by a battery (lifespan of 3 years). The FB55B sends a motion telegram every 2 minutes when movement is detected. If no movement is detected, a non-motion telegram is sent after 4 minutes. If movement is still not detected, a non-motion telegram is sent every 30 minutes. In the factory setting, the upper slide switch is set to P (passive), and light actuators and dimmers automatically turn off if no new movement is detected for 5 minutes. Activation occurs with the light switch. With the upper slide switch in position A (active), automatic motion-dependent activation is enabled. The lower slide switch allows you to choose the sensitivity: H = high (factory setting) or L = low. The power supply for several years is provided by an internal 3V CR2032 button cell. To change the button cell, simply remove the front panel. The wireless sensor can be integrated with the following actuators and the Professional Smart Home Controller: FSR14, FSR61, FSR71, FTN14, FUD14, FUD61, FUD71, FZK14, FZK61, FD62, FL62, FSLA.

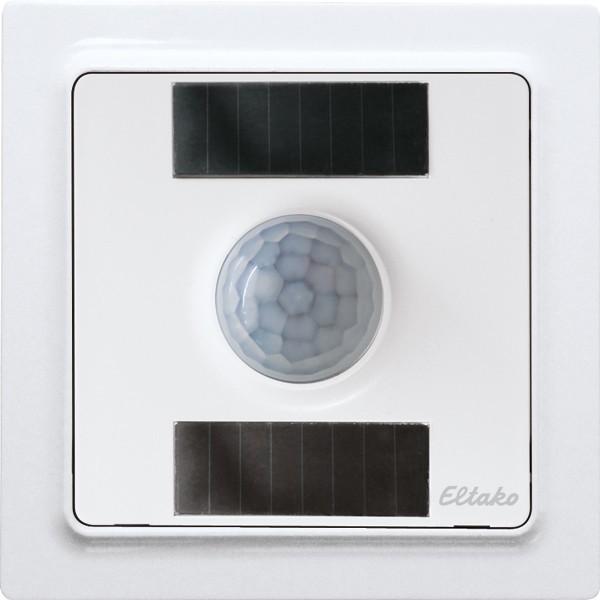

10. Eltako Capteur de luminosité de mouvement sans fil
Wireless motion brightness sensor in glossy pure white for standalone installation (80x80x27 mm) or installation in the E-design 55 switch system. Equipped with solar cells and a battery (lifespan 4-5 years). Smart home sensor. The wireless sensor can be integrated into various actuators and building wireless visualization and control software.
