Best selling EV chargers from ABB
On this page you’ll find a ranking of the best EV chargers from ABB. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. ABB Terra AC
Customized, intelligent, and connected charging solution for every business, home, and location. 4G, Wi-Fi, and Bluetooth authentication methods: RFID. MID certification. Display. Charging power of up to 22 kW (can be throttled to 11 kW). Wall-mounted.
Specifications:
Output power (AC): 22.1 kW
Socket: 1x AC Type 2
Output current (3 phases): 32 A
Number of RCDs (Type A): none (must be ordered separately)
Overvoltage category: III
Overload protection: Overcurrent protection at 40 A
Operating temperature - range: -30 to +50 °C / Storage -50 to +80 °C
Protection class: IP54
Impact resistance rating: IK08
Authentication method: RFID
Communication interface: 4G, Wi-Fi, Bluetooth
Energy meter type: AC-MID
Screen size: 3.5 inches
High quality: The AC charging station with the best price-performance ratio on the market delivers the outstanding quality expected from the market leader in electric vehicle charging stations. It is space-saving and easy to install. Remote software updates ensure optimal performance with fewer on-site service interventions. Diverse connectivity options, such as Wi-Fi, Bluetooth, and Ethernet, allow for easy control and integration into existing infrastructure.
Future-proof flexibility: Thanks to smart features, the wallbox can regulate its power consumption and optimize the charging process, today and in the future. Prepared for the integration of an external energy meter to enable dynamic load management, save electricity costs, and prevent unwanted tripping of protective devices. The user-friendly app allows for easy configuration and control of the AC charging station, displaying the charging status to the user, for example.
High safety: Tested and rated according to the highest standards.
2. ABB Terra AC Wall Charging Station
Up to 22 kW charging power, integrated MID-certified energy meter, built-in DC fault current detection for your safety, access control via RFID cards/app, integrated energy meter. Communication via a mobile data connection (4G) or LAN/WLAN (only applicable in conjunction with another OCPP backend system - the ABB app currently communicates exclusively via Bluetooth). View charging data and control the charging station via the app using Bluetooth. Compatible with various backend systems via OCPP 1.6. For all Type 2 electric vehicles.
The Terra AC wall charging station offers an ideal, intelligent, and connected charging solution for any business, home, and location. Future-proof flexibility: Thanks to smart features, the e-charging station can regulate its power consumption and optimize the charging process, today and in the future. An external energy meter can be connected via an RS485 interface to enable dynamic load management, save electricity costs, and prevent unwanted tripping of protective devices.
Integrated MID-certified energy meter. OCPP for communication with backend: The Open Charge Point Protocol (OCPP) governs the communication between a charging station and a backend system. With OCPP, you can easily manage one or more charging stations with a backend system, allowing you to monitor individual charging processes, manage users, and bill the electricity consumed.
RFID access function: Only users whose RFID cards are registered at the charging station can charge at the station. Electric vehicle drivers activate the charging station and start the charging process with an RFID charging card. An RFID card is included with each wallbox.
Integrated fault current sensor: The ABB Terra AC wallbox comes standard with a DC fault current sensor.

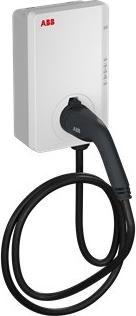

3. ABB Terra AC W22-G5-R-C-V2-0 wallbox Typ 2 22kW Schwarz Grau
EV chargers
New
CHF999.–
ABB Terra AC W22-G5-R-C-V2-0 wallbox Typ 2 22kW Schwarz Grau
Type 2, 22 kW, 32 A

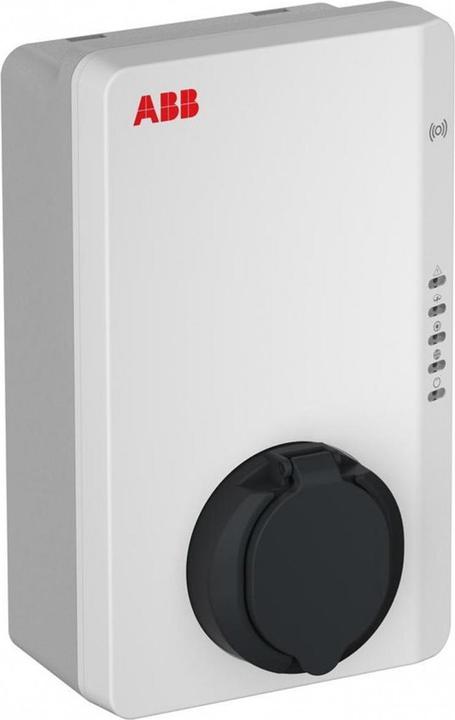

4. ABB TAC-W22-T-0
The ABB TAC-W22-T-0 Terra AC wall-mounted charging station is a state-of-the-art charging solution for electric vehicles, offering a maximum charging power of 22 kW. This wall station is equipped with a Type 2 socket, enabling an efficient and user-friendly charging experience. It is designed for wall mounting and is ideal for use in private garages as well as commercial applications. The charging station supports various communication interfaces, including Wi-Fi, Bluetooth, and Ethernet, allowing for easy integration into existing networks. Additionally, it features advanced protective devices that ensure safe operation. The Terra AC wall-mounted charging station is robust and weatherproof, with an IP54 protection rating, making it suitable for use in various environmental conditions. Its versatile features and the ability to adjust the charging power make it a flexible solution for anyone committed to electromobility.
- Maximum charging power of 22 kW, can be throttled to 11 kW
- Versatile communication interfaces: Wi-Fi, Bluetooth, Ethernet, RS-485
- Robust design with IP54 protection rating and IK08 impact resistance
- Integrated protective devices against overcurrent, overvoltage, and ground faults
- Compatible with load management and energy meters for optimized usage.
