Best Delock products in the Controller cards category
On this page you'll find a ranking of the best Delock products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Delock 89297 PCI Express 4x USB 3.0
The Delock PCI Express card expands your PC with four external USB 3.0 ports. You can connect various USB 3.0 devices to the card, such as docking stations, card readers, and external enclosures. Since the USB-A interface is compatible with its predecessors USB 2.0 and USB 1.1, you can continue to use your existing USB devices. Internal connections: 1x PCIe 2.0 x1, 1x SATA power connector. External connections: 4x USB 3.0 Type A, backward compatible with USB 2.0 and USB 1.1.
2. Delock 89153, PCI-E x1 to 2x 1394B + 1x 1394A
The DeLock PCI Express card expands your PC with two external FireWire 800 ports and one external FireWire 400 port. You can connect various FireWire devices to the card, such as external enclosures, digital cameras, camcorders, adapters, and more.
3. Delock PCI Express card 90046 2x serial / RS232
The Delock PCI Express card expands the PC with two external serial ports. Various devices, such as scanners, protocol converters, IoT devices, etc., can be connected to the card.
Low Profile Form Factor
With the included low profile brackets, the PCI Express card can also be installed in a mini-PC.
Specifications
- Connections:
external: 2 x Serial RS-232 DB9 connectors
internal: 1 x PCI Express x1, V2.0
- Chipset: ASIX AX99100
- Compatible with 16C950 UART
- Supports Active State Power Management (ASPM)
- Supports Direct Memory Access (DMA)
- Data transfer rate up to 921.6 Kbps
- FIFO: 256 Bytes
- Data bits: 5, 6, 7, 8, 9
- Stop bits: 1, 1.5, 2
- Parity bit: even, odd, none, mark, space
- Flow control: none, hardware RTS/CTS, software XON/XOFF
- Operating temperature: 0 °C ~ 70 °C
System Requirements
- Windows 8.1/8.1-64/10/10-64/11
- PC with a free PCI Express slot
Package Contents
- PCI Express card
- 2 x Low Profile brackets
- Driver CD
- User manual.

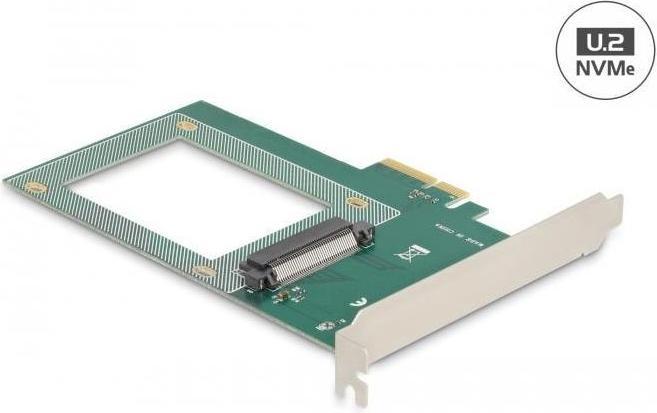

4. Delock PCI Express x4 card to 1 x internal U.2 NVMe SFF-8639
Short Info: Delock Storage Controller - 2.5" (6.4 cm) - 1 Sender/Channel - NVMe - PCIe 4.0 x4. Manufacturer: Delock, Item No. 90081, Model EAN/UPC 4043619900817.
Product Description: Delock Storage Controller - NVMe - PCIe 4.0 x4. Device Type: Storage Controller - Plug-in Card. Bus Type: PCIe 4.0 x4. Compatibility with Hard Drive Form Factor: 2.5" (6.4 cm). Interface: NVMe. Supported Devices: Solid State Drive. Number of Channels: 1. Max. Number of Storage Devices: 1.
System Requirements: Windows 8.1 (32/64 Bit), Windows 10 (32/64 Bit), Microsoft Windows Server 2019, Linux Kernel 5.11 or higher.
Detailed Information:
General: Device Type: Storage Controller - Plug-in Card. Compatibility with Hard Drive Form Factor: 2.5" (6.4 cm). Host Bus: PCIe 4.0 x4. Mass Storage Controller Interface: NVMe. Supported Devices: Solid State Drive. Number of Channels: 1. Max. Number of Storage Devices: 1.
Expansion/Connectivity: Interfaces: 1 x NVMe. Connections: 1 x PCIe 4.0 x4.
Miscellaneous: Performance Features: Bootable, ex UEFI Version 2.3.1.
Software/System Requirements: Required Operating System: Windows 8.1 (32/64 Bit), Windows 10 (32/64 Bit), Microsoft Windows Server 2019, Linux Kernel 5.11 or higher.
5. Delock PCI Express x1 card to 7 x external USB 5 Gbps Type-A socket
The Delock PCI Express card expands the PC with seven external USB 5 Gbps ports. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected.
6. Delock PCI Express x1 card to 4 x external USB Type-A socket SuperSpeed USB (USB 3.2 Gen 1)
The Delock PCI Express card expands the PC with four external USB 3.2 Gen 1 ports. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected.
It provides 10 watts of output power per port. The card does not require an additional power supply and can still deliver 2 A at each port. Therefore, a total of 8 A can be achieved when using all ports.
Controller cards
CHF37.–
Delock PCI Express x1 card to 4 x external USB Type-A socket SuperSpeed USB (USB 3.2 Gen 1)
7. Delock USB 5 Gbps PCI Express x1 card to 5 x external Type-A +
The Delock PCI Express card expands the PC with five external Type-A and two external USB Type-C™ ports. Various USB devices, such as USB sticks, card readers, external enclosures, etc., can be connected. A maximum data transfer rate of up to 5 Gbps can be achieved.
Power supply via the PCI Express interface
The card does not require an additional power supply. Power is supplied exclusively through the PCI Express interface.
Technical specifications
Connections:
external:
- 5 x USB 5 Gbps Type-A socket
- 2 x USB 5 Gbps USB Type-C™ socket
internal:
- 1 x PCI Express x1, V2.0
- Chipset: VIA VL817, Fresco Logic FL1100
- Data transfer rate up to 5 Gbps
- Power supply via PCI Express interface
- Electrical power per port: max. 5 watts (5 V / 1 A)
- Supports eXtensible Host Controller Interface (xHCI) Specification 1.1
- Supports UASP
- Supports Multiple INs
- Bootable
System requirements
- Linux Kernel 6.5 or higher
- Windows 10/10-64/11
- PC with a free PCI Express slot
Package contents
- PCI Express card USB 5 Gbps
- User manual
Packaging
- Box.

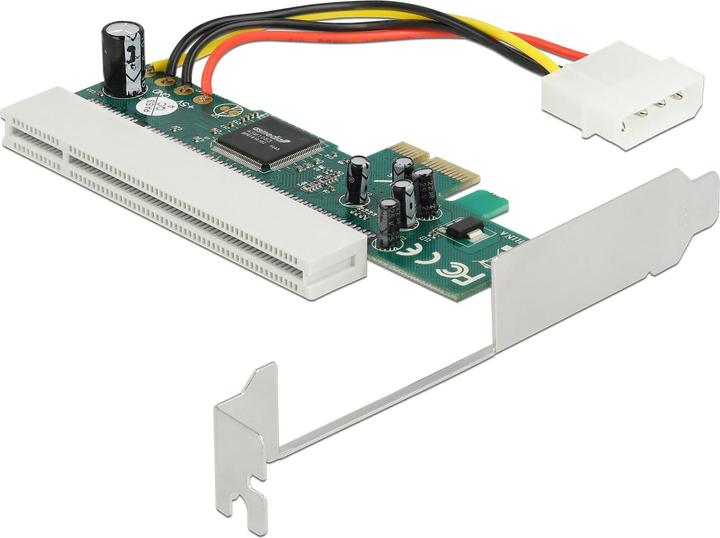

8. Delock 89223 PCI Express to PCI Adapter
The Delock PCI Express x1 card allows you to use low-profile PCI expansion cards or simultaneously expand your PC with an additional PCI interface. You can also connect standard PCI cards, although some ports may not be usable if they are outside the opening. The card is easy to install and is powered via the pre-installed 4-pin Molex connector from the PC power supply. The opening helps you access the PCI card more easily within the case and connect various devices if needed.

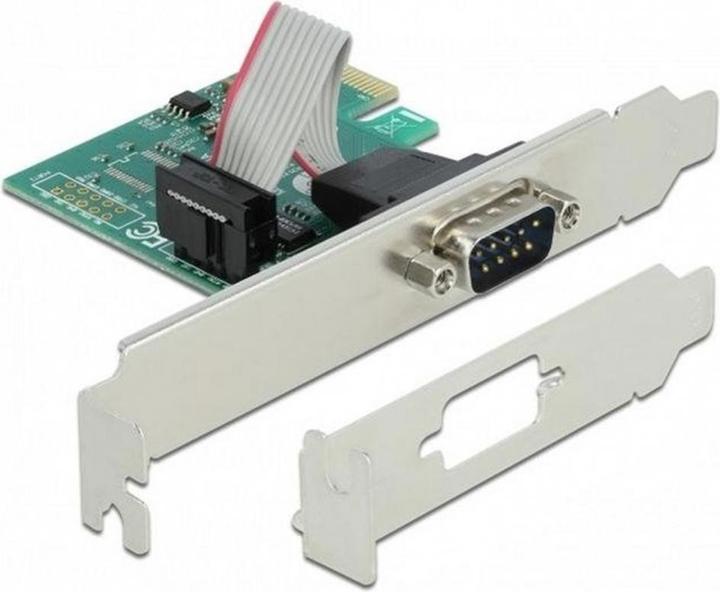

9. Delock PCI card 90006 1x serial / RS-232
The Delock PCI Express card expands the PC with an external serial port. Various devices, such as scanners, protocol converters, IoT devices, etc., can be connected to the card.
Low Profile Form Factor
With the included low profile bracket, the PCI Express card can also be installed in a mini PC.
Specifications
- Connections:
external: 1 x Serial RS-232 DB9 connector
internal: 1 x PCI Express x1, V2.0
- Chipset: ASIX AX99100
- Compatible with 16C950 UART
- Supports Active State Power Management (ASPM)
- Supports Direct Memory Access (DMA)
- Data transfer rate up to 921.6 Kbps
- FIFO: 256 Bytes
- Data bits: 5, 6, 7, 8, 9
- Stop bits: 1, 1.5, 2
- Parity bit: even, odd, none, mark, space
- Flow control: none, hardware RTS/CTS, software XON/XOFF
- Operating temperature: 0 °C to 70 °C
System Requirements
- Linux Kernel 2.6.24 or higher
- Windows 8.1/8.1-64/10/10-64/11
- PC with an available PCI Express slot
Package Contents
- PCI Express card
- Low profile bracket
- Driver CD
- User manual.
10. Delock Riser card PCI Express x1 to 1 x PCI 32 bit 5 V slot
The Delock PCI Express Riser Card allows the connection of a PCI card via a PCI Express port. The cutout in the slot bracket enables external connections, such as cables, to the installed PCI card within the PC case.
Main features:
- Connections and interfaces:
- Host interface: PCIe
- Output interface: PCI
- Design: Built-in
- Country of origin: China
- System requirements:
- Supported Windows operating systems: Windows 10, Windows 8.1
- Supported Linux operating systems: Yes
- Supported server operating systems: Windows Server 2019
- Packaging data:
- Operating manual: Yes
- Quantity per package: 1 piece
- Packaging type: Box.
