Best selling Cables + Plugs from ILME
Here you’ll find the best Cables + Plugs from ILME. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular ILME options. This page always stays fresh and updates automatically.
1. ILME CKF 03 Socket insert, size 21.21, 3P+PE, silver, CKF03
The ILME article number CKF 03 defines the item socket insert, size 21.21, 3PPE, silver, screw connection, 10A, 250V. The contact insert of the CK series is characterized by the 4-fold coding system in size 21.21. Due to its high rated voltage, it is suitable, among other applications, as a compact motor connector. CKF 03.
2. ILME GmbH gaestopas – Klinke CDA 16 16 polig + Terrestrisch 250 V
The ILME article number CDAM 16 defines the item pin insert, size 66.16, 16PPE, silver, screw connection, 16A, 250V. The contact insert of the CDA series represents a more compact version of the standard contact inserts of the CNE series. Comparable specifications with significantly smaller dimensions enable a more compact connector design. CDAM 16 X.

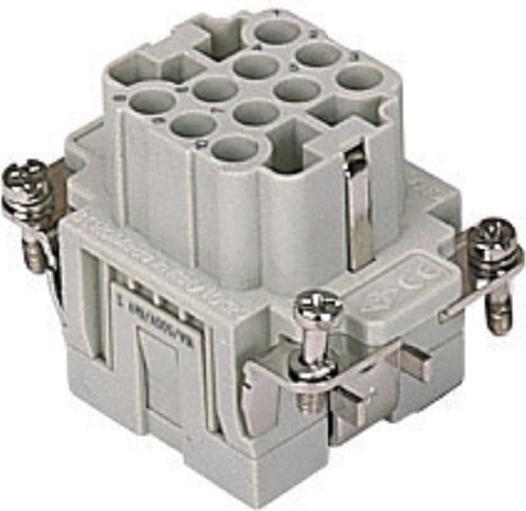

3. ILME Socket insert
Ilme Socket Insert CQEF 10 Manufacturer: Ilme Description: Socket insert size 44.27, connection 16A Type: CQEF 10 Ilme Socket Insert CQEF 10: further details The ILME article number CQEF 10 defines the item socket insert, size 44.27, 10P+PE, crimp connection, 16A, 500V. The contact insert of the CQE series is characterized by a high number of poles while maintaining high current-carrying capacity and compact dimensions. This makes the contact insert ideal for connecting multi-core load cables.
4. ILME Socket contact
The ILME article number CCFA 2.5 defines the item socket contact, 2.5 mm², silver, crimp connection, 16 A, series CC. The contact of the CC series features a durable surface coating and a robust mechanical design. With high current carrying capacity and conductor cross-sections, it is ideally suited for connecting load cables. CCFA 2.5.

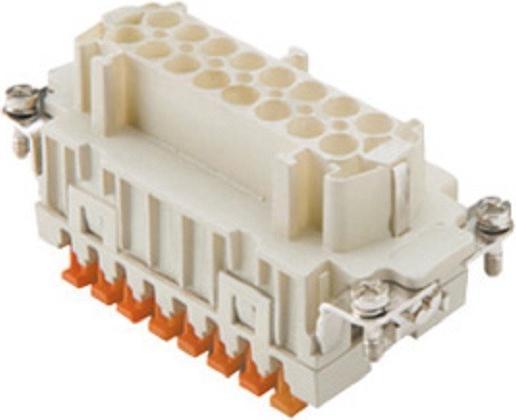

5. ILME Beech insert
Ilme Socket Insert CSHF 16 N
Manufacturer: Ilme
Designation: Socket insert 16-pole 16A/500V
Type: CSHF 16 N
Contact insert without contacts: no
Contact design: socket
Number of poles: 32
Material of the connector insert: thermoplastic
Rated current In: 16 A
Ambient temperature: -40..125 °C
Rated voltage: 500 V
Degree of pollution: 3
Design of electrical connection: spring clamp connection
Connectable conductor cross-section fine-stranded without ferrule: 0.14..2.5 mm²
Material of contact coating: silver
Flammability class of insulating material according to UL 94: V0
With protective conductor: yes
Ilme Socket Insert CSHF 16 N: additional details
The ILME article number CSHF 16 N defines the item socket insert, 16P+PE, silver, SQUICH, 16A, 500V, for Gr. 77.62 No. 17-32. The contact insert of the CSH series is equipped with the patented ILME quick connection technology SQUICH®. This connection technology offers an intuitive and fast connection of the connector. In addition to saving up to 50% time compared to traditional screw connection technology, the cage spring contacts of the SQUICH® technology are completely vibration-resistant and maintenance-free, making them suitable for applications in the field of EN 61373. The additional test opening of the connection buttons allows the user to measure and test in the connected and installed state of the connector. The same characteristic data and contours as the series CNE, CCE, CSE, and CSS enable a wide range of applications for this contact insert.

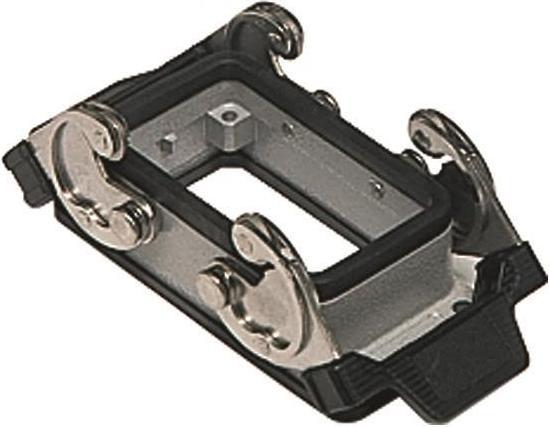

6. ILME Add-on housing for 10-pin (open at the bottom)
Ilme Mounting Enclosure 2 Brackets CHI 10
Manufacturer: Ilme
Description: Mounting enclosure 2 brackets size 57.27
Type: CHI 10
Enclosure design: Mounting enclosure
With cable gland: no
With hinged cover: no
Type of locking: Cross bracket
EMC design: no
Corrosion resistant: no
UV resistant: no
Additional details: The ILME article number CHI 10 defines the item mounting enclosure, size 57.27, aluminum, 2 brackets. The enclosure of the C-Type series is the classic housing for industrial connectors in standard size and high quality, which is reflected in the stainless steel locking system with roller and spring, for example.
7. ILME Pin insert
Ilme Pin Insert CX 06P CM
Manufacturer: Ilme
Description: Pin Insert Crimpa 1ME, 6P
Type: CX 06P CM
The Ilme article number CX 06P CM defines the item Pin Insert, MIXO, 1ME, 6P, crimp connection, 16A, 830V, protected. The contact insert of the MIXO series offers outstanding flexibility for configuring the individually required connector. With the integrated profile guides, the individual modules can be easily plugged together, providing handling as simple as that of a fixed-pole connector.

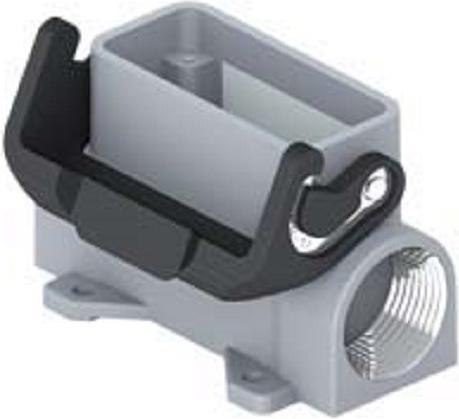

8. ILME Base housing
Ilme Socket Housing MZP 15 L25
Manufacturer: Ilme
Description: Socket housing
Type: MZP 15 L25
Housing design: Socket housing
Cable entry arrangement: Two-sided
With cable gland: No
With hinged cover: No
Type of locking: Long bracket
The Ilme article number MZP 15 L25 defines the item socket housing, size 49.16, aluminum, 1 bracket IL-BRID, 1xM25 side entry. The housing of the CZ/MZ series represents a more compact variant of the standard housings from the classic C-Type series. Comparable specifications with significantly smaller dimensions allow for a more compact connector design.
9. ILME Crimp pin
The ILME article number CDMA 0.3 defines the item pin contact, 0.14-0.37 mm², silver, crimp connection, 10 A, series CD. The contact from the CD series features a high-quality surface coating and a compact mechanical design. Due to its low contact resistance and small conductor cross-sections, it is ideally suited for connecting signal lines.
10. ILME Guide pin
The ILME article number CRM defines the item coding pen, made of stainless steel, with 16 coding options, for standard inserts. The item from the product group coding systems for connectors is suitable for easy coding and additional guidance of connectors.
