1. Hirschmann ST series 3 way plug w/strain relief,16A
Rated current: 16A
Contact format: 3P+E
Plug/socket: Male
Operating voltage: 250 V dc, 400 V ac
Mounting type: Cable mounting
Color: Gray
IP class: IP54
Gender: Male
Housing orientation: Straight
Connection type: Screw
Operating temperature min: -30°C
Operating temperature max: +90°C
Series: ST
Cable plugs and sockets. These cable-mounted connectors from Hirschmann are robust and compact, making them ideal for power and control cable connections. With an IP54 protection rating, they are protected against dust and splashes and are approved for worldwide use. All connectors are also vibration-resistant and can be mounted as needed. Connectors are available with strain relief, safety brackets, and in straight or angled variants. There are also connector variants for panel and surface mounting.
2. Hirschmann Leitungsdose Stak3 3-polig + Erde
Cable plugs and sockets. These cable-mounted connectors from Hirschmann are robust and compact, ideal for power and control cable connections. With protection class IP54, they are protected against dust and splash water and are approved for worldwide use. All connectors are also vibration-resistant and can be mounted as required. Connectors are available with strain relief, safety clips and in straight or right-angled versions. There are also variants for panel and surface mounting.
Rated current: 16A
Contact format: 3P+E
Plug/socket: Female
Operating voltage: 250 V dc, 400 V ac
Mounting type: Cable mounting
Colour: Black, Grey
IP class: IP54
Gender: Female
Housing orientation: Straight
Connection type: Screws
Operating temperature min: -30°C
Operating temperature max: +90°C
Series: ST
3. Hirschmann INSULATED 4mm SOCKETS / GREEN (BIL 20)
Socket with insulated head and ring for installation in equipment chassis and switch panels with a maximum wall thickness of 2mm. 4mm diameter nickel-plated brass socket with solder connection.
Cables + Plugs
Quantity discount
CHF13.70 per piece for 2 units
Hirschmann INSULATED 4mm SOCKETS / GREEN (BIL 20)

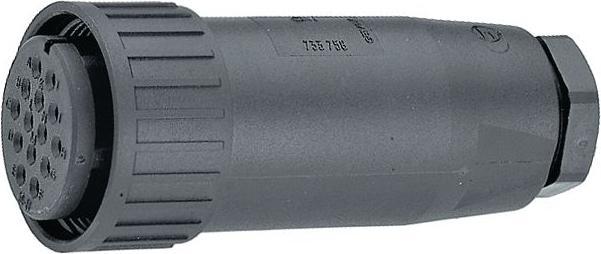

4. Hirschmann Kabelbuchse 4pol, MIL-C-5015, Steckbuchse / Steckbuchse, 14S-2, 10A
The 4-pole cable socket, type CM 06 EA 14S-2 S, is a high-performance connector designed for demanding applications. With a maximum operating temperature of 90 °C and a minimum operating temperature of -40 °C, it is suitable for use in extreme environments. This socket offers a rated voltage of 50 VAC/VDC and a rated current of 10 A, making it ideal for various electrical applications. The housing made of glass-fiber reinforced polyamide 6.6 ensures high robustness and durability. The IP67 protection class guarantees that the socket is dust-tight and protected against temporary immersion in water. The connection is made via a threaded coupling, and the contacts are made of silver to ensure optimal conductivity. This cable socket meets the military specification MIL-C-5015, making it suitable for military and industrial applications.
- Maximum operating temperature of 90 °C for high loads
- IP67 protection class for dust and water resistance
- Robust housing made of glass-fiber reinforced polyamide 6.6
- Meets military specification MIL-C-5015 for reliability.
Cables + Plugs
CHF22.37
Hirschmann Kabelbuchse 4pol, MIL-C-5015, Steckbuchse / Steckbuchse, 14S-2, 10A

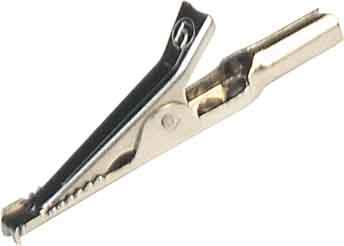

5. Hirschmann INSULATED CROCODILE CLIPS 4mm 25A / BLACK (AK 25)
Insulated, unbreakable crocodile clips. Holder for screws with a maximum diameter of 9.5 mm. The flat part of the jaws (fine wire area) allows for clamping even the thinnest wires. 4 mm diameter socket and screw connection up to 1.5 mm².
6. Hirschmann Sensor/actuator connector
The Hirschmann sensor/actuator connector is a reliable solution for connecting electronic components in industrial applications. This unassembled M12 connector allows for flexible and customizable installation tailored to the specific requirements of your projects. With a robust design and high temperature resistance, this connector is ideal for use in demanding environments. The clamping cage ensures a secure connection for cables with a diameter of 4 to 6 mm and a maximum cross-sectional area of 0.75 mm². Installation is straightforward through cable assembly, making it efficient and user-friendly. The connector is suitable for temperatures ranging from -25 °C to 90 °C, making it versatile for various applications.
- Clamping cage for secure cable capture
- Temperature range of -25 °C to 90 °C
- Suitable for cables with a diameter of 4 - 6 mm and max. 0.75 mm²
- Easy cable assembly for flexible applications.
7. Hirschmann Buela 20 K
The Buela 20 K from Hirschmann is a high-quality bush plug designed for a variety of applications in electronics. With its impact-resistant and flexible insulating sleeve, it offers not only high flexibility but also effective strain relief, which extends the lifespan of the cable. The plug features a screw connection suitable for conductor cross-sections of up to 1.5 mm². The contact material made of nickel-plated brass ensures a reliable electrical connection and high corrosion resistance. The Buela 20 K is suitable for use in a temperature range of -25 °C to 70 °C, making it a robust choice for various environments.
- Impact-resistant, flexible insulating sleeve with a cross hole for increased flexibility
- Strain relief provided by the tapered sleeve end
- Screw connection for conductor cross-sections up to 1.5 mm²
- Contact material made of nickel-plated brass for improved corrosion resistance.
8. Hirschmann Connectors for mains voltages
The Hirschmann connector for mains voltage is a robust and versatile circular connector, ideal for use in various industries such as mechanical engineering, control technology, medical electronics, and the chemical industry. With international approvals including VDE, UR, SEV, and CSA, this connector is designed for global use. The cable socket features a total of 6 poles plus PE and is rated for a nominal voltage of 230 VAC/VDC and a nominal current of 10 A. The connector is suitable for operating temperatures ranging from -40 °C to 90 °C and offers a high protection rating of IP66/IP67, making it particularly resistant to dust and water. The housing is made of glass-fiber reinforced polyamide 6.6, ensuring additional stability and durability. Installation is done via a cable holder, and the contacts are soldered to ensure a reliable connection.
- Robust circular connector for various industries
- International approvals for global use
- Operating temperature range from -40 °C to 90 °C
- High protection rating IP66/IP67 against dust and water
- Housing made of glass-fiber reinforced polyamide 6.6.
9. Hirschmann INSULATED 4mm SOCKETS / BLACK (BIL 20)
Socket with insulated head and ring for installation in equipment chassis and switch panels with a maximum wall thickness of 2mm. 4mm diameter nickel-plated brass socket with solder connection.
Cables + Plugs
Quantity discount
CHF12.60 per piece for 2 units
Hirschmann INSULATED 4mm SOCKETS / BLACK (BIL 20)

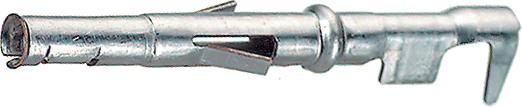

10. Hirschmann 733 383-021-1 Crimp contact RBC socket, straight 10 A silver 1 pc.
The Hirschmann 733 383-021-1 crimp contact is a straight socket designed for use in various electronic applications. With a maximum current rating of 10 A and a silver contact coating, this contact provides a reliable electrical connection. The crimp contact is made from high-quality brass and is suitable for wire diameters ranging from 0.5 mm² to 0.14 mm² (AWG 20 to 26). It is specifically designed for use with NR and ST series connectors (5-pole) and ensures easy and secure assembly. The compact design and stamped type of the contact make it a practical choice for various applications in electronics.
- Maximum current rating of 10 A for reliable performance
- Stamped contact type for enhanced stability
- Compatible with NR and ST series connectors (5-pole)
- Made from high-quality brass with a silver coating for optimal conductivity.
Cables + Plugs
Quantity discount
CHF5.90 per piece for 2 units
Hirschmann 733 383-021-1 Crimp contact RBC socket, straight 10 A silver 1 pc.
