Best RECOsystems products in the Binding machines category
On this page you'll find a ranking of the best RECOsystems products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

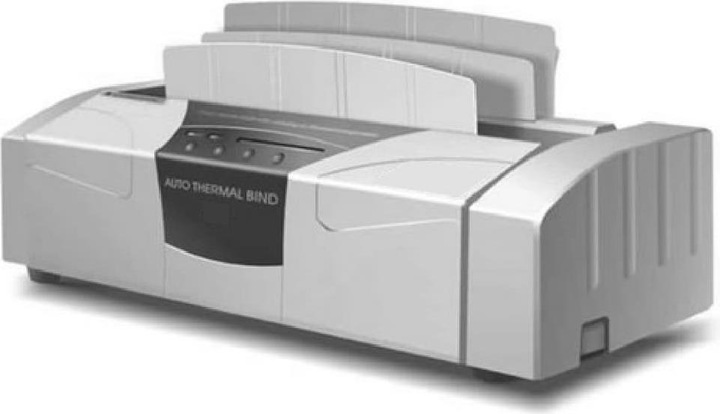

1. RECOsystems Thermal binding machine RECO Therm TB 4
Thermobinding Machine RECO Therm TB 4
The RECO Therm TB 4 is a professional thermobinding machine with automatic pressing and a vibration system for perfect binding results. It automatically detects the binding thickness and features a blower for quick cooling of the binding covers. The machine can bind paper sizes up to 390 mm and a maximum thickness of 4 cm.
The RECO Therm TB 4 is ideal for offices or copy shops. If you want to create presentations, documents, quotes, or similar, this is one of the easiest and fastest methods. Simply place the paper to be bound in a thermobinding cover with the appropriate spine width, insert the cover into the thermobinding machine, and after 1-2 minutes and a short cooling time, the binding is complete.
What sets the TB 4 apart is that at the end of the binding process, a vibration program starts. This allows the paper to bond better with the adhesive compared to traditional thermobinders.
Technical Details:
- Thermobinding machine (for pre-made binding covers)
- Format: up to DIN A4
- Maximum binding capacity: 400 sheets (70/80 g/m²)
- With vibration system for better binding results
- Includes 3 cooling fans to accelerate the cooling process
- Binding time: 1-2 minutes (depending on book thickness).

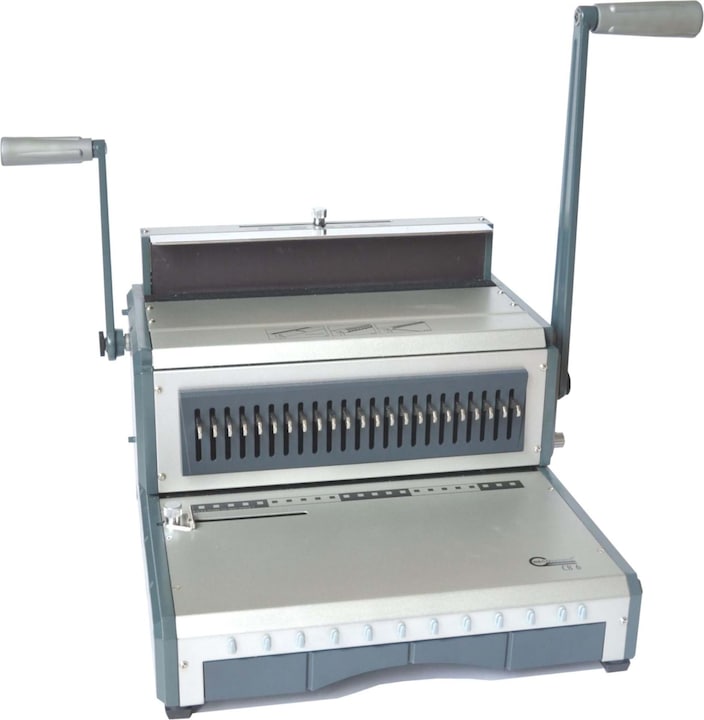

2. RECOsystems Binding device CB 6 - pitch 2:1
Binding Machine RECOsystems CB 6 - Pitch 2:1
Professional manual wire binding machine for wire comb bindings in a 2:1 pitch. Suitable for office operations and copy shops. The RECOsystems CB 6 is the optimal punching and binding machine for offices, copy shops, and printing houses. Whether you need to quickly bind a brochure for a meeting at the office or fulfill an order of several hundred copies, this sturdy machine allows you to easily bind high-quality brochures. The CB 6 is also well-suited for larger print runs.
Solid construction made of aluminum die-cast, housing entirely made of steel sheet!
Technical Specifications:
- Manual punching and binding machine
- Pitch 2:1 (23 loops on A4)
- For Ø 6.4 - 32.5 mm (1/4" - 1 1/4")
- Punching capacity: max. 25 sheets (70/80 g/m² paper)
- Binding capacity: max. 280 sheets = 28 mm (70/80 g/m² paper)
- Formats: up to A4
- Adjustable margin distance
- Adjustable punching depth
- Individually deactivatable punching dies
- With magnetic strip to assist the binding process
- Hole size: 4 x 5.5 mm rectangular hole
Very robust and stable machine for offices and copy shops, also well-suited for larger quantities.

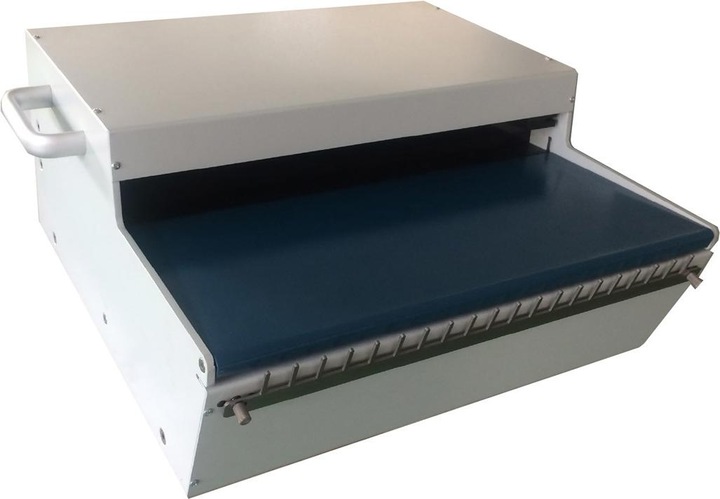

3. RECOsystems Punching machine CHANGER PUNCH 2
Punching Machine RECOsystems CHANGER PUNCH 2
Electric punching machine for wire comb and plastic bindings with interchangeable punching tools. The RECOsystems CHANGER PUNCH 2 is the perfect punching machine for copy shops or printing companies. What makes this machine special is its flexibility. The robust punching tools can be swapped out in just one minute. There are tools available for wire combs, plastic binder backs, and spirals. The machine is ideal for medium to large print runs!
Technical specifications:
- Punching width: up to A4
- Max. punching capacity: approx. 25 sheets (70/80 g/m²)
- Individually deactivatable punching dies
- Adjustable margin distance
- Adjustable punching depth
- Electric punching via footswitch
- 230 V/50 Hz
- Weight: 22.4 kg (tool 8.2 kg)
- Dimensions: 500 x 480 x 340 mm.

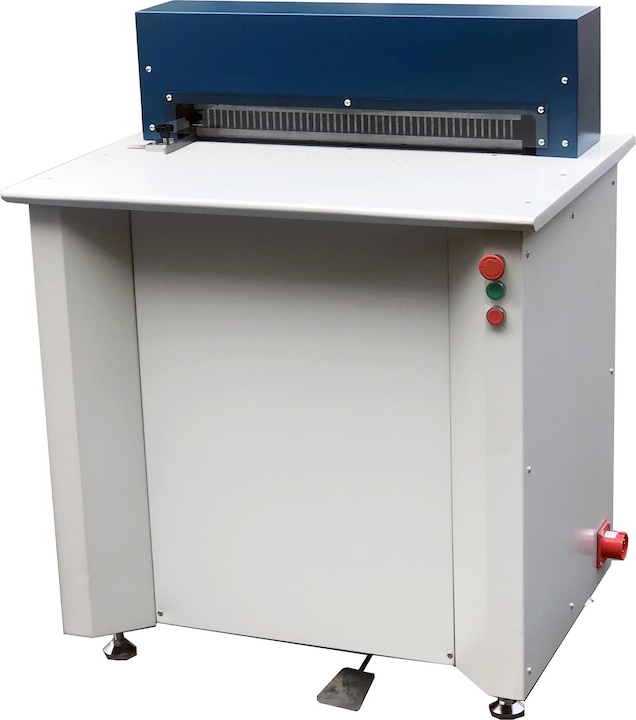

4. RECOsystems PP 600 Professional punching machine
RECOSystems PP 600 Profi Punching Machine
High-performance punching machine with a punching width of up to 600 mm for professional use in printing houses and bookbinding shops. The RECOSystems PP 600 punching machine is designed for professional applications in printing and bookbinding. With a working width of 600 mm, the PP 600 meets all requirements in professional production while offering high flexibility in processing. Tool changes take approximately 5 to 10 minutes. During tool assembly, the punching dies can be removed individually.
Technical specifications:
- For the professional production of brochures or calendars
- Punches up to 30 sheets
- Interchangeable punching tools
- Format: max. 600 mm
- Punching activated via footswitch
- Connection 400 VAC, 50 Hz, 1.1 kW
- Weight 250 kg
- Dimensions: 890 x 625 x 1090 mm
Price includes delivery and commissioning - without punching tools.

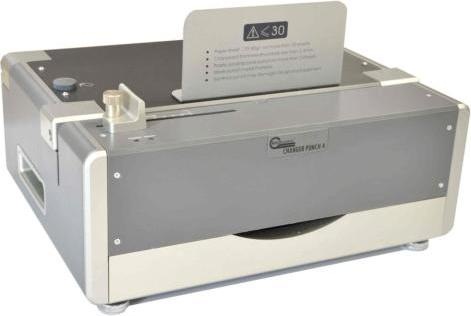

5. RECOsystems Punching machine CHANGER PUNCH 4
Punching Machine RECOsystems CHANGER PUNCH 4
Electric binding device for wire comb and plastic bindings with interchangeable punching tools. The RECOsystems CHANGER PUNCH 4 is the perfect punching machine for copy shops or printing houses. The special feature of this machine is its flexibility. The robust punching tools can be changed in just a few seconds. There are tools available for wire combs, plastic binding spines, and spirals. The punching process can be triggered either with a footswitch or a sensor, allowing for extremely fast operation. The machine is very well suited for large print runs.
Technical specifications:
- Punching width: up to A4
- Max. punching capacity: approx. 30 sheets (70/80 g/m²)
- Individually deactivatable punching dies
- Adjustable margin distance
- Adjustable punching depth
- Electric punching via footswitch or sensor
- 230 V/50 Hz
- Weight: 31.7 kg
- Dimensions: 460 x 360 x 185 mm.

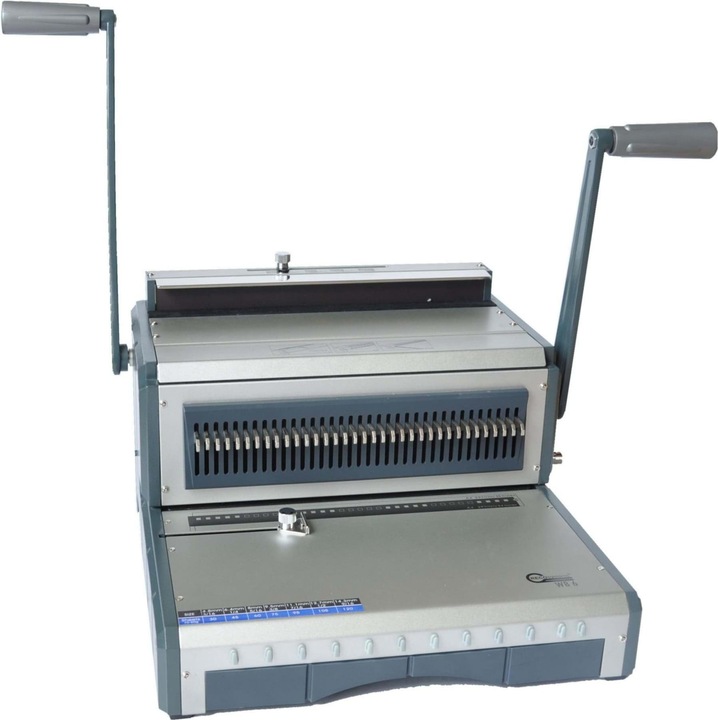

6. RECOsystems Binding device WB 6 R (round hole)
Binding machine RECOsystems WB 6 R (round hole)
Professional, manual wire binding machine for wire comb binding with 4 mm round hole punching. The RECOsystems WB 6 R is the optimal punching and binding machine for office, copy store, and print store. Whether you need to quickly bind a brochure for a meeting in the office or want to produce a job of several hundred pieces, this sturdy machine allows you to easily bind a high-quality brochure. The WB 6 R is also ideally suited for larger runs.
Solid construction made of die-cast aluminum, with a housing completely made of sheet steel.
Technical data:
- Punching and binding width: up to A4+ (open at the side)
- Max. punching thickness: approx. 25 sheets (70/80 g/m²)
- Max. binding thickness: up to approx. 135 sheets (70/80 g/m²) for wire comb with 34 rings on A4 (pitch 3:1)
- For wire diameter 4.8 mm - 16.0 mm (3/16" - 5/8")
- Size of punching hole: 4 mm round hole
- Adjustable edge distance
- Adjustable punching depth
- Individually deactivatable punching
- Magnetic bar for support during binding process
- Two hanging devices
- Weight: 18.9 kg
- Dimensions: 520 x 500 x 380 mm.

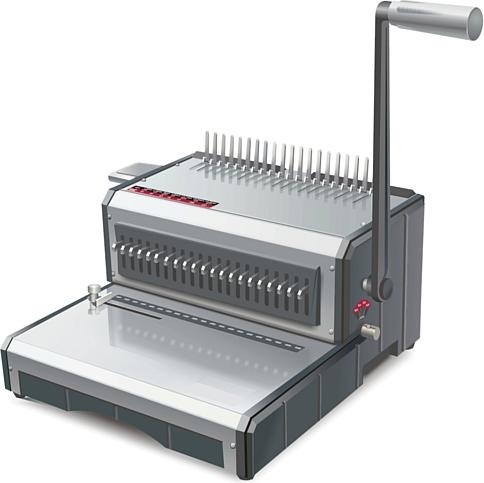

7. RECOsystems Binding machine PB 6
Binding Machine RECOsystems PB 6
Professional manual binding machine for plastic comb bindings - ideal for medium to large print runs in offices and copy shops. The RECOsystems PB 6 is the optimal punching and binding machine for your office, copy shop, or printing house. With this machine, you can easily produce brochures with plastic comb bindings. The machine is perfectly suited for medium to large print runs. With the PB 6, you will always achieve first-class binding results!
Solid construction made of aluminum die-cast.
Technical specifications:
- Punching and binding width: up to A4
- Max. punching capacity: approx. 25 sheets (70/80 g/m²)
- Max. binding capacity: up to approx. 470 sheets (70/80 g/m²)
- Suitable for plastic comb bindings with 21 rings on A4
- Individually deactivatable punching pins
- Adjustable margin distance
- Adjustable punching depth
- Optimal for smaller and medium print runs
- Weight: 15.5 kg
- Dimensions: 520 x 500 x 380 mm.

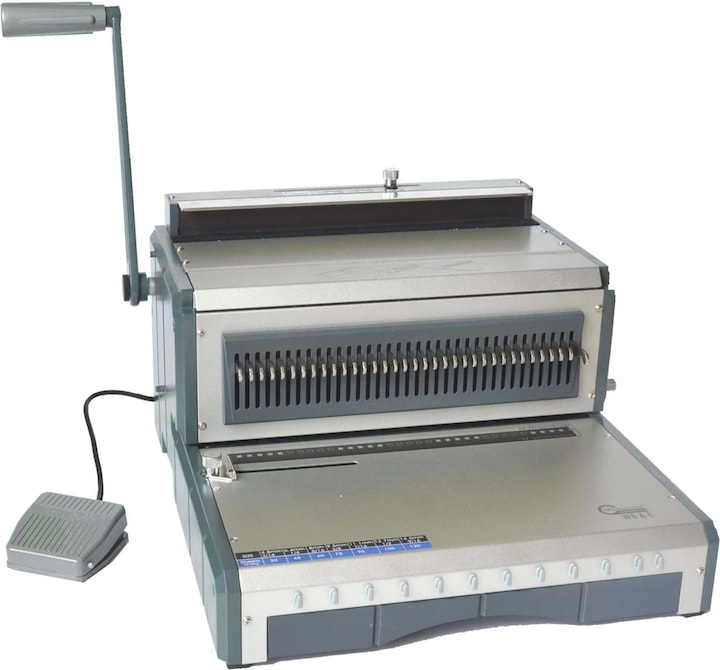

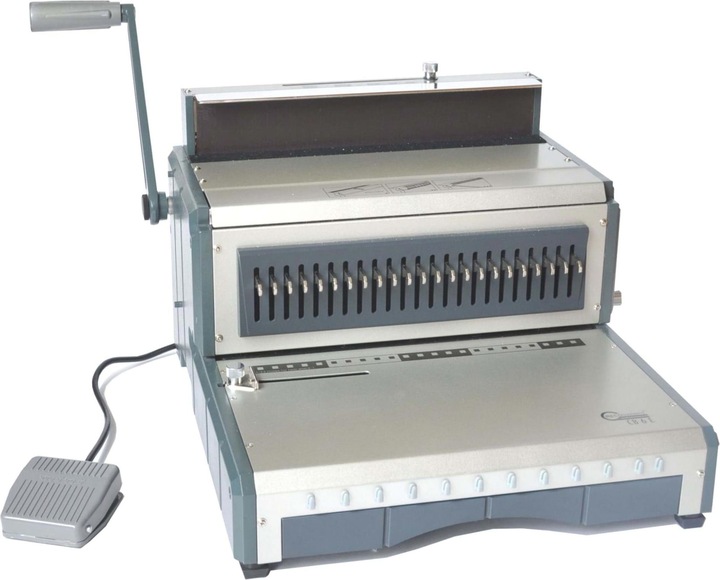

8. RECOsystems Electric binding machine CB 6 E, pitch 2:1
Electric Binding Machine RECOsystems CB 6 E, Pitch 2:1
Professional electric wire binding machine for wire comb bindings in a 2:1 pitch. Suitable for offices and copy shops. The RECOsystems CB 6 E is the optimal punching and binding machine for offices, copy shops, and printing houses. Whether you need to quickly bind a brochure for a meeting at the office or fulfill an order for multiple copies, this sturdy machine allows you to easily bind high-quality brochures. The electric punching, triggered by a footswitch, adds to the convenience. The machine is also suitable for larger print runs, as the punching process only takes 1.6 seconds.
Solid all-metal construction made of aluminum die-cast!
Technical Specifications:
- Electric punching and manual binding machine
- Pitch 2:1 (23 loops on A4)
- For Ø 6.4 - 32.5 mm (1/4" - 1 1/4")
- Punching capacity: max. 25 sheets (70/80 g/m² paper)
- Binding capacity: max. 280 sheets = 28 mm (70/80 g/m² paper)
- Formats: up to A4
- Adjustable margin distance
- Adjustable punching depth
- Individually deactivatable punching dies
- Equipped with a magnetic strip to assist the binding process
- Hole size: 4 x 5.5 mm rectangular hole
- Electric punching, triggered by footswitch
- Very robust and stable machine for offices and copy shops (also suitable for larger quantities)
- 230 V/50 Hz.
9. RECOsystems Binding device WB 6 E
Binding Machine RECOsystems WB 6 E
Professional electric wire binding machine for wire comb bindings - ideal for medium to large runs. The RECOsystems WB 6 E is the optimal punching and binding machine for offices, copy shops, and printing houses. Whether you need to quickly bind a brochure for a meeting at the office or fulfill an order for multiple copies; with this sturdy machine, you can easily bind a high-quality brochure. The electric punching, triggered by a footswitch, offers exceptional convenience. The machine is also suitable for larger runs, as the punching process takes only 1.6 seconds.
Solid all-metal construction made of aluminum die-cast!
Technical specifications:
- Punching and binding width: A4+ (open on the side)
- Electric punching via a footswitch
- Max. punching capacity: approx. 25 sheets (70/80 g/m²)
- Max. binding capacity: up to approx. 135 sheets (70/80 g/m²)
- For wire combs with 34 rings on A4 (pitch 3:1)
- For wire diameters of 4.8 mm - 16 mm (3/16“ - 5/8“)
- Size of the punch hole: 4 x 4 mm
- Adjustable margin distance
- Adjustable punching depth
- Individually deactivatable punch pins
- Magnetic strip to assist during the binding process
- Two hanging devices
- 230 V / 50 Hz
- Weight: 28.1 kg
- Dimensions: 520 x 500 x 380 mm.
10. RECOsystems Electric professional closing machine RECO WB 550 for wiro bindings
Electric Professional Closing Machine RECO WB 550 for Wire-O Bindings
Professional electric closing machine for wire comb bindings, designed for printing houses and copy shops. The RECOsystems WB 550 is the perfect wire comb binding machine for bookbinders or printers producing medium-sized runs. Switching to the appropriate diameter takes just a few seconds.
By activating the foot switch, the closing jaws move downwards, perfectly closing the wire comb. The machine is very robustly constructed and is suitable for professional use in continuous operation.
Technical Data:
- Working width: 550 mm
- Binds wire combs in 3:1 and 2:1 pitch
- Activation via foot pedal
- Binds wire combs in sizes from 4.8 mm to 38.0 mm (3/16" - 1 1/2")
- Power supply: 230V / 50Hz
- Weight: 55 kg
- Dimensions (W x H x D): 555 x 700 x 275 mm.
