Delock Antenna cable SMA male to SMA female 5 meters
0.86 dB, Antenna cable
On this page you'll find a ranking of the best Delock products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
This high-quality antenna cable provides a secure connection for components in high-frequency technology. It features very low attenuation.
Specifications:
- Connectors: 1 x SMA plug, 1 x SMA socket
- Cable type: CFD/RF200
- Cable attenuation: 0.55 dB @ 2.4 GHz per meter, 0.86 dB @ 5.7 GHz per meter
- Impedance: 50 Ohms
- Color: black
- Cable diameter: approx. 4.8 mm
- Minimum bending radius: approx. 12.7 mm
- Cable length: approx. 5 m
System requirements:
- Device with a free SMA connector
Package contents:
- Antenna cable.
Delock Antenna cable SMA male to SMA female 5 meters
0.86 dB, Antenna cable
Use this antenna cable to connect components of high-frequency technology. The cable features very low attenuation.
Specifications:
- Antenna extension cable
- Connectors: SMA plug > SMA socket
- Cable type: CFD/RF200
- Attenuation:
- 2.4 GHz 0.55 dB per meter
- 5.7 GHz 0.86 dB per meter
- Diameter: 4.80 mm
- Color: black
- Cable length: approx. 10 m
Package contents:
- Antenna extension cable.
Delock Antenna cable SMA male to SMA female
0.86 dB, Antenna cable
Antenna cable SMA plug to SMA jack LMR/CFD300, 15 m low loss
The antenna cable by Delock is suitable for connecting components of radio frequency technology.
Connectors: 1x SMA plug to 1x SMA jack
Impedance: 50 Ohm
Cable type: LMR300
Cable type: Coaxial
Cable attenuation: 0.31 dB @ 2 GHz per meter
Cable diameter: approximately 7.50 mm
Cable color: black
Smallest bending radius: 75 mm
Length including connectors: approximately 15 m.
Use this adapter to connect components of high-frequency technology.
Delock SMA socket to RP SMA plug
Antenna cable
Antenna cable SMA plug to SMA jack LMR/CFD100 5 m low loss
The antenna cable by Delock is suitable for connecting components of radio frequency technology.
Connectors: 1x SMA plug to 1x SMA jack
Impedance: 50 Ohm
Cable type: LMR100
Cable type: Coaxial
Cable attenuation: 0.99 dB @ 2 GHz per meter
Cable diameter: approximately 2.79 mm
Cable color: Black
Smallest bending radius: 28 mm
Length including connectors: approximately 5 m.
Delock Antenna cable LTE/5G, CFD/LRM100 SMA to SMA, 5 m
0.99 dB, Antenna cable
GSM/UMTS/LTE antenna extension cable, 15m, SMA female to SMA male, low-loss CDF200 cable. Low attenuation with 0.55dB per meter at 2100MHz. Impedance: 50 Ohm at 200MHz. Suitable for mobile radio applications.
Delock GSM/UMTS/LTE antenna extension cable
0.86 dB, Antenna cable
The antenna cable from DeLock is designed to connect various high-frequency components. The cable acts as an adapter and features a 90° angled TS-9 connector as well as an SMA socket, allowing for the conversion of a TS-9 connection to an SMA connection. The total length of the antenna cable, including all connectors, is 170 mm, while the pure cable length without connectors is 145 mm.
The DeLock TS-9/SMA adapter is characterized by its small cable diameter of only 2.8 mm. This adapter uses the RG-174 cable type. The signal attenuation due to cable loss is 0.29 dB at 2.6 GHz. The package includes the complete TS-9 to SMA adapter, with the cable and its associated parts securely packaged in a poly bag.
Delock Antenna adapter SMA TS-9
Antenna cable
This cable from Delock is designed for connecting devices in measurement technology as well as video transmission systems.
Secure Hold
Thanks to the bayonet lock, it withstands stronger pulling forces and reduces susceptibility to interference, which is particularly relevant in event technology.
Specifications
• Connectors:
1 x BNC plug
1 x BNC plug
• Impedance: 75 Ohm
• Cable type: coaxial
• Cable model: RG-59
• Cable attenuation: 0.25 dB @ 1 GHz per meter
• Cable diameter: approx. 6.1 mm
• Cable color: black
• Length including connectors (L): approx. 20 m
System Requirements
• Device with a free BNC connector
Package Contents
• Cable.

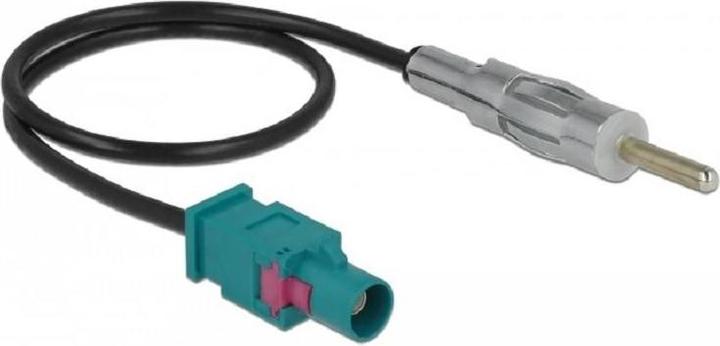

This antenna cable is used to connect components of high-frequency technology.
Specifications:
- Connectors: 1 x FAKRA Z plug, 1 x DIN plug
- FAKRA Z: RAL 5021 Water Blue
- Color: black
- Cable type: coaxial
- Cable specification: RG-174
- Cable color: black
- Cable diameter: approx. 2.9 mm
- Cable attenuation: 0.35 dB @ 100 MHz per meter
- Minimum bending radius: approx. 10.5 mm
- Length including connectors (L): approx. 32 cm
System requirements:
- Device with a free FAKRA Z and DIN connector
Package contents:
- Antenna cable.
The Delock adapter RP-SMA plug to RP-SMA plug is a high-quality solution for connecting high-frequency components. This adapter is specifically designed for applications in antenna technology and provides a reliable connection between devices with RP-SMA connections. Made from beryllium copper and gold-plated, the adapter ensures optimal signal transmission and minimizes signal loss. With an impedance of 50 Ohms, it is ideal for most antenna applications. The compact design, with a length of approximately 18.90 mm, allows for easy integration into existing systems without taking up valuable space. The adapter is intended for indoor use and offers a robust and durable solution for your high-frequency connections.
- Made from beryllium copper with gold-plated contacts for optimal signal transmission
- Impedance of 50 Ohms, suitable for most antenna applications
- Compact design with a length of approximately 18.90 mm
- Designed for connecting high-frequency components.
Delock Adapter RP-SMA male to RP-SMA male
Antenna cable
