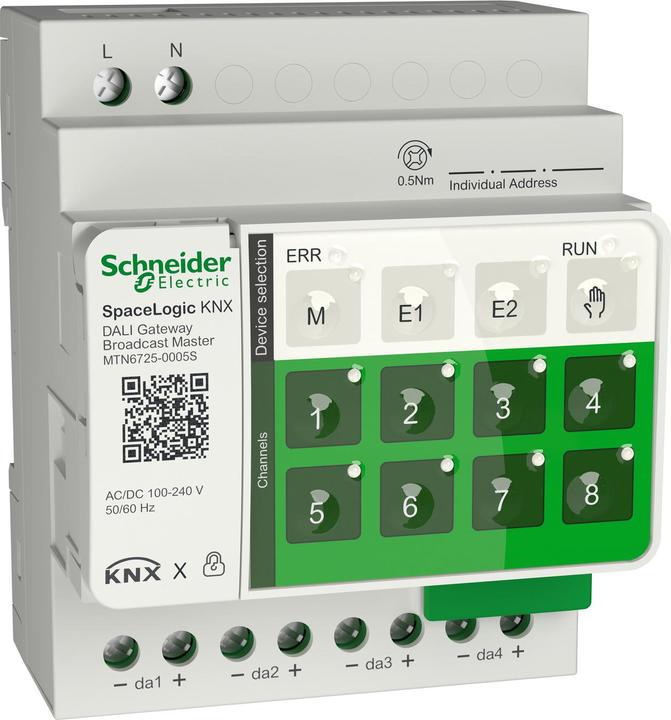

1. Schneider Electric SpaceLogic KNX DALI
The SpaceLogic KNX DALI from Schneider Electric is an advanced gateway specifically designed for the integration of DALI lighting systems into KNX-based smart home environments. With four intelligent DALI channels, this device supports up to 32 DALI devices per channel and is DALI-2 certified, ensuring high compatibility and reliability. Its modular design allows for future expansion to up to 12 channels, enhancing the system's flexibility and adaptability. Additionally, the gateway offers easy setup and maintenance through its broadcast communication. The ability to utilize DALI Zero Power functions helps reduce the overall consumption of the control gear. With an operating voltage of 100 to 240 V and an IP20 protection rating, the SpaceLogic KNX DALI is suitable for indoor use and various applications.
- DALI-2 certified for high compatibility
- Expandable to up to 12 channels
- Supports up to 32 devices per channel
- Easy setup through broadcast communication.
2. Schneider Electric Spacelogic Knx Secure
The new SpaceLogic KNX DALI Gateway Broadcast controls up to 32 devices per channel with 4 channels. Thanks to broadcast communication, the commissioning and maintenance of the electronic ballasts can be done quickly and easily without DALI commissioning. In case of a fault, DALI devices can be easily replaced without addressing or grouping. Commissioning and programming are carried out using ETS. The new KNX DALI Broadcast also supports the control of color and color temperature of devices according to DALI Device Type 8. Additionally, the product is KNX Secure certified, providing optimal protection against tampering and data misuse.
3. Schneider Electric Switching actuator
Schneider Electric Switching Actuator MTN647895
Manufacturer: Schneider Electric
Designation: Switching Actuator REG-K/8x230/16
Type: MTN647895
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: REG
Width in Division Units: 8
Local/Manual Operation: yes
With LED Display: no
Max. Switching Power: 3600 W
Output Power: 3600 W
Suitable for C-Load: yes
Max. Number of Switching Outputs: 8
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 230 V
Connectable Different Phases: yes
With Bus Coupling: yes
Bus Module Removable: no
Modular Expansion Option: no
Protection Class (IP): IP20
The switching actuator allows for independent switching of 8 consumers via contact closures. It features integrated current detection that measures the load current per channel. All 230 V switching outputs can be manually operated with toggle switches. It includes an integrated bus coupler. A green LED indicates operational readiness after the application is loaded. The load connection is made via screw terminals. Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal.
Rated Voltage: AC 230 V, 50-60 Hz. DC 12-24 V +/-10%, 0.1-16 A. Per Switching Contact: Switching Current: 16 A, cos Phi 0.6, Detection Accuracy: +/- 8% of the current value (sine) and +/- 100 mA. Frequency: 50/60 Hz for AC voltage. Representation: 100 mA. Device Width: 8 TE corresponds to approximately 144 mm. Delivery Includes: With bus connection terminal and wiring cover. EAN: 3606485100074.
4. Schneider Electric extension
Schneider Electric extension dimmer MTN6810-0102
Manufacturer: Schneider Electric
Designation: Extension dimmer SpaceLogic KNX
Type: MTN6810-0102
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Design: Dimming actuator
Mounting type: REG
Width in subdivision units: 4
With bus coupling: Yes
Bus module removable: Yes
Extension input: No
On-site/manual operation: Yes
With LED display: Yes
Number of outputs: 2
Output power: 2 to 350 W
Power add-on usable: No
Load type: Universal
Max. control current: 1800 mA
Control current: 1800 mA
Voltage: 230 V
Parallel operation possible: No
Frequency: 50 to 60 Hz
Protection class (IP): IP20
Min. depth of device box: 66 mm
Universal dimmer 2-fold, REG, extension SpaceLogic KNX dimmer, 2-fold extension for independent control of up to 2 dimmable loads. Such as dimmable LED lamps, incandescent lamps, HV halogen lamps, LV halogen lamps using dimmable wound transformers or electronic transformers, or dimmable compact fluorescent lamps. All outputs can be operated manually by pushbuttons. ETS programming is performed in the ETS application of the master. The master controls the function of the extension, the power supply, and the communication to the KNX bus. With screw terminals, short circuit, open circuit, and over temperature protection with soft start lamp start. All outputs can be manually operated with push buttons of the master: On/Off, Dim Up/Down, LED mode/Auto mode, On two-button operation. For mounting on DIN rails TH35 according to EN 60715. The connection to the master or another extension is made either with a connection module or connection cable. EAN: 3606481816993.
5. Schneider Electric Master
The Master Switch Actuator from Schneider Electric is a versatile solution for controlling blinds and switching channels in KNX-based smart home systems. With its 8 switching outputs and a maximum switching capacity of 2300 watts, it offers a flexible and powerful way to manage various electrical loads. The configuration of the blind and switching channels is user-friendly and can be customized to meet the specific needs of users. The integrated bus coupler allows for easy installation on DIN rails, while the connection to the KNX bus is made without additional data rails. The Master can be supplemented with SpaceLogic KNX extensions, increasing the number of controllable loads to up to 24. This expandability makes the Master an ideal choice for complex installations that require high flexibility.
- Freely configurable blind and switching channels
- Easy installation on DIN rails
- Expandable with SpaceLogic KNX extensions
- Custom naming for channels for better identification
- Integrated energy-saving and device safety features.
6. Schneider Electric Contactor
Range: Acti 9. series: iCT. Coil voltage: 220 - 240 V AC. Rated contact current: 25 A. Rated contact voltage: 400 V AC. Number and position of contacts: 4-pole. Contact configuration: 4 NO contacts. Power: 1.6 W. Connection type: Screw fixing. Width: 81 mm. Max. operating temperature: +60 °C. Acti 9 iCT contactors from Schneider Electric enable power switching in single-phase 3-phase loads. The contactors in the TeSys GC series are safe, simple to use and easy to install. These devices with their compact dimensions are suitable for a wide variety of applications. Features and benefits: Integrated auxiliary contacts for additional switching options. Screw terminals: IP20 finger-safe terminals with North American and international terminal markings. Panel mounting with screws or DIN rail mounting possible. Pulse relay function. Day/night function. Class 2 insulation: complete safety for operators and third parties. What is the difference between AC-7a and AC-7b when selecting an iCT contactor? These utilisation categories determine which load the contactors switch: AC-7a are for light inductive loads for household appliances such as mixers and blenders. AC-7b are intended for motorised loads for household appliances such as fans and central hoovers. Do spacers need to be fitted between the contactors in the iCT range? If several contactors are mounted on a DIN rail, spacers should be used after every second contactor. The reason for this is that several contactors next to each other can generate a lot of heat, causing the devices to exceed their operating temperature. The coils themselves are designed to be 100% switched on 24 hours a day and the heat must be dissipated, so a spacer is required.
7. Schneider Electric Acti9 iCT Contactor 25A 4NO 220/240Vac
Area: Acti 9
Series: iCT
Number of Poles: 4
Coil Voltage: 230 V AC
Contact Rated Current: 25 A
Contact Rated Voltage: 400 V AC
Contact Number and Position: 4-pole
Contact Configuration: 4 Normally Open
Power: 1.6 W
Connection Type: Screw Terminal
Width: 81 mm
Max Operating Temperature: +60 °C
Acti 9 iCT contactors from Schneider Electric enable power switching in single-phase 3-phase loads. The TeSys GC series contactors are safe, easy to use, and simple to install. These devices, with their compact dimensions, are suitable for a wide variety of applications.
Features and Benefits:
- Integrated auxiliary contacts for additional switching options
- Screw terminals: IP20 finger-safe terminals with North American and international terminal markings
- Panel mounting with screws or DIN rail mounting possible
- Pulse relay function
- Day/Night function
- Insulation Class 2: continuous safety for operators and third parties
What is the difference between AC-7a and AC-7b when selecting an iCT contactor? These utilization categories determine which loads the contactors can switch:
- AC-7a is intended for lightly inductive loads for household appliances such as mixers and blenders
- AC-7b is intended for motor loads for household appliances such as fans and central vacuum cleaners
Do spacers need to be installed between the iCT series contactors? When multiple contactors are mounted on a DIN rail, spacers should be used after every second contactor. The reason for this is that when multiple contactors are placed side by side, there can be a significant heat buildup, causing the devices to exceed their operating temperature. The coils themselves are designed to be 100% operational, allowing them to be on 24 hours a day, and the heat must be dissipated, hence a spacer is required.
8. Schneider Electric Wiser
Schneider Electric Wiser Switch Actuator 1-Channel UP CCT5011-0002W
Manufacturer: Schneider Electric
Designation: Wiser Switch Actuator 1-Channel UP
Type: CCT5011-0002W
KNX Bus System: No
KNX Radio Bus System: No
Radio Bus System: Yes
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: Zigbee
Bidirectional Radio: Yes
Mounting Type: Flush-mounted
Local/Manual Operation: Yes
With LED Display: Yes
Max. Switching Power: 2200 W
Max. Switching Power for LED: 200 W
Output Power: 2200 W
Suitable for C-Load: No
Max. Number of Switching Outputs: 1
Max. Switching Current: 10 A
Rated Current: 10 A
Rated Operating Voltage: 230 V
Connectable to Different Phases: No
Power Consumption: 0.4 W
With Bus Coupling: Yes
Bus Module Removable: No
Min. Depth of Device Box: 22 mm
Modular Expansion Option: No
Protection Class (IP): IP20
The Wiser flush-mounted switch actuator controls resistive, inductive, or capacitive loads in a Wiser home automation system (Zigbee). It features a potential-free relay. Up to 64 devices, including a hub, can be connected through a system. Further details are available in the online documentation. The dimensions are 43 x 43 x 22 mm.
It offers a modular smart home connection via the Wiser system, local and remote app control, schedules, moments (scenes), and automations through the Wiser Home App. It supports Zigbee 3.0 (factory setting) and Bluetooth. Capacitive load up to 10 A. A neutral wire is required, and the connection is made via screw terminals.
It is the successor to the MEG5011-0001. System configuration is done via the Wiser Home App (online and offline). Additional installation support is provided through the eSetup App for qualified electricians.
EAN: 3606481048172.
9. Schneider Electric Acti9 iCT Contactor 100A 4NO 220/240Vac
The Acti9 iCT Contactor from Schneider Electric is a highly advanced installation relay designed for use in electrical switchgear. With a rated current of 100A and an operating voltage of 220-240V AC, this device provides a reliable solution for circuit switching. The contactor features four switching contacts that support a maximum incandescent load of 22,500 W and a maximum fluorescent load of up to 11,550 VA. Its compact design, with a width of 108 mm and a mounting depth of 43.5 mm, allows for easy integration into existing systems. Additionally, the iCT Contactor meets the standards EN 61095 and IEC 1095 and is VDE certified, ensuring high safety standards. The mechanical switching position indicator provides clear visibility of the operating status, while the option to use additional devices increases flexibility. This installation relay is therefore an ideal choice for professional applications in electrical engineering.
- Maximum incandescent load of 22,500 W
- VDE certified for high safety standards
- Mechanical switching position indicator for clear visibility
- Compatible with the entire Acti 9 product range.
10. Schneider Electric Switch actuator radio bus AP 1Ausg 16A 3680W CCTFR6700
Schneider Electric Wiser Wireless Receiver Relay CCTFR6700
Manufacturer: Schneider Electric
Description: Wiser Wireless Receiver Relay 16A Temp.Sen.Connection
Type: CCTFR6700
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: Zigbee
Bidirectional Wireless: yes
Mounting Type: Surface-mounted
Local/Manual Operation: yes
With LED Display: yes
Max. Switching Power: 3680 W
Output Power: 3680 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 1
Max. Switching Current: up to 16 A for resistive load and up to 3 A for inductive load
Rated Current: 16 A
Rated Operating Voltage: 220..240 V
Connectable to Different Phases: no
Power Consumption: 0.4 W
With Bus Coupling: yes
Bus Module Removable: no
Min. Depth of Device Box: 0 mm
Modular Expansion Option: no
Protection Class (IP): IP44
The Wiser Wireless Receiver Relay controls electric heating in a Wiser heating control system (Zigbee). It is a smart control system for electric heating solutions. Up to 64 devices including a hub can be connected through one system. More details can be found in the online documentation. Dimensions: 162 x 67 x 30 mm. Modular smart home integration via the Wiser system, APP control locally and remotely, schedules, moments (scenes), and automations via the Wiser Home APP. Zigbee 3.0. Control of heating devices up to 3000 W. Compact intermediate adapter for 2-wire connection. System configuration via the Wiser Home APP (online and offline), additional installation support via eSetup APP for qualified electricians.
