Zumtobel Lighting Relay output 4x10A Control cabinet 22154120
Delivered between Wed, 1.10. and Fri, 17.10.
free shipping
Product details

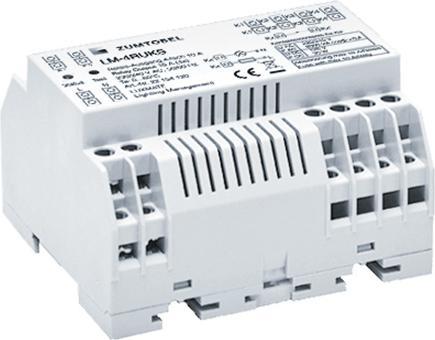

Relay output with 4 independently addressable and controllable contacts for switching lamps and operating devices for lamps. Load per contact up to 10A possible; mains and bus connection, output side: four independent relay contacts. Connections are made by means of screw terminals. Switch cabinet case of flame-resistant polycarbonate, halogen-free, intended for mounting on 35mm top-hat rail conforming to EN 50022, permissible ambient temperature from 0 to +50°C, protection type IP20, 6 modules at 17.5mm.
Items per sales unit | 1 x |
Item number | 33383892 |
Manufacturer | Zumtobel Lighting |
Category | Actuator |
Manufacturer no. | 22154120 |
Release date | 17.5.2023 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Polycarbonates (PC) |
Operating voltage | 240 V |
Protection type (IP code) | IP20 |
Smart Home | Not compatible |
Country of origin | Austria |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 90 mm |
Width | 105 mm |
Height | 59 mm |
Weight | 400 g |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
