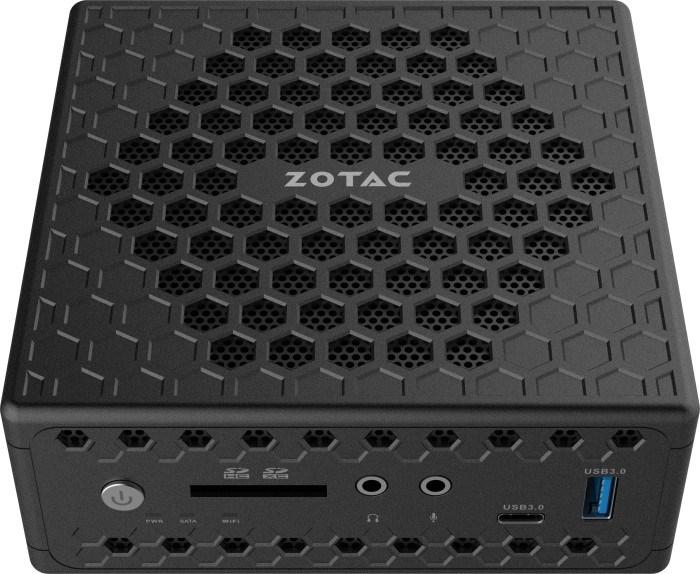

The ZBOX CI331 nano is equipped with a power-efficient next-generation Intel processor, providing you with a silent experience in a compact PC. A robust passive cooling design without moving parts ensures high reliability and a long lifespan. The distinctive honeycomb ventilation openings throughout the chassis enhance airflow, supported by a large aluminum heatsink that maximizes heat dissipation from the CPU to keep the system running efficiently. A VESA mount is included, allowing for flexible placement almost anywhere. The ZBOX CI331 nano is the ideal compact PC for home theater, digital signage, light productivity, everyday tasks, and more.
Number of processor cores | 4 -Core |
Graphics card model | Intel UHD Graphics |
Internal connection options | S-ATA (1x) |
Network connections | RJ45 Gigabit Ethernet (2x) |
Video connections | HDMI (1x) |
Memory type | DDR4-RAM |
USB ports | USB-A |
Item number | 16560834 |
Manufacturer | Zotac |
Category | Barebones |
Manufacturer no. | ZBOX-CI331NANO-BE |
Release date | 25.6.2023 |
Design | Small Form |
Processor type | Intel Celeron N5100 |
Clock frequency | 1.10 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 4 |
Socket | BGA 1338 |
Max. turbo clock rate | 2.80 GHz |
Max. TDP | 40 W |
Processor properties | 64-bit architecture, Intel Virtualisation Technology (VT-x), Onboard processor |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Max. memory slots | 2 |
Max. RAM | 16 GB |
Graphics card model | Intel UHD Graphics |
Internal connection options | S-ATA (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Data ports | PS/2 (1x) |
Network connections | RJ45 Gigabit Ethernet (2x) |
Connectivity | Bluetooth |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Wi-fi frequency | 2.4 GHz, 5 GHz |
Bluetooth version | 5.0 |
Video connections | HDMI (1x) |
Memory card type | SD, SDHC, SDXC |
Power | 40 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Barebone PC |
Weight | 1881 g |
Width | 127.80 mm |
Length | 126.80 mm |
Height | 56.80 mm |
Length | 24.80 cm |
Width | 23.90 cm |
Height | 9.40 cm |
Weight | 1.87 kg |
How often does a product of this brand in the «Barebones» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Barebones» category returned?
Source: Digitec GalaxusThe Zotac wins the sustainability rating because it is the only test candidate that allows the replacement of RAM and SSD and consumes very little power (14 watts). The built-in power-saving processor does not need a fan, but is also a weakness of the Zotac: its power is enough for Offce and Internet - but not more.
The Zbox CI331 Nano is not a high-performance PC. You have to be aware of that. Moreover, it is not particularly frugal for a mini-PC when idle. The Celeron N5100 hardly blocks at all thanks to its four cores, but it feels a bit sluggish compared to modern Core i and Ryzen mobile processors...
