Product details
The Zotac Zbox CI327 Nano features a compact form factor and a passively cooled chassis, allowing for fanless cooling. A powerful Intel Quad Core processor provides performance for daily web browsing, emails, and multimedia tasks. The integrated 802.11ac Wi-Fi and dual Gigabit LAN ensure lightning-fast wired and wireless connections. With two DDR3L memory slots and a 2.5" bay for HDDs or SSDs, the Zbox CI327 Nano can be expanded into a powerful complete PC.
Number of processor cores | 4 -Core |
Graphics card model | HD Graphics 500 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Network connections | RJ45 (2x) |
Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Memory type | DDR3L-RAM |
USB ports | USB-A |
Documents | |
Item number | 7615384 |
Manufacturer | Zotac |
Category | Barebones |
Manufacturer no. | ZBOX-CI327NANO-BE |
Release date | 2.2.2018 |
External links |
Design | Small Form |
Processor type | Intel Celeron N3450 |
Clock frequency | 1.10 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 4 |
Socket | BGA 1296 |
Max. turbo clock rate | 2.20 GHz |
Max. TDP | 6 W |
Processor properties | 64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x), Onboard processor |
Memory type | DDR3L-RAM |
Memory form factor | SO-DIMM |
Number of pins | 204 x |
Memory chip compatibility | DDR3L-1866 (PC3-14400) |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 8 GB |
Graphics card model | HD Graphics 500 |
Hardware application range | Beginner |
Max. connected monitors | 3 x |
Internal connection options | M.2 (1x), S-ATA III (1x) |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.0 (2x) |
Network connections | RJ45 (2x) |
Max. port speed | 1000 Mbit/s |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Wi-fi frequency | 5 GHz |
Bluetooth version | 4.2 |

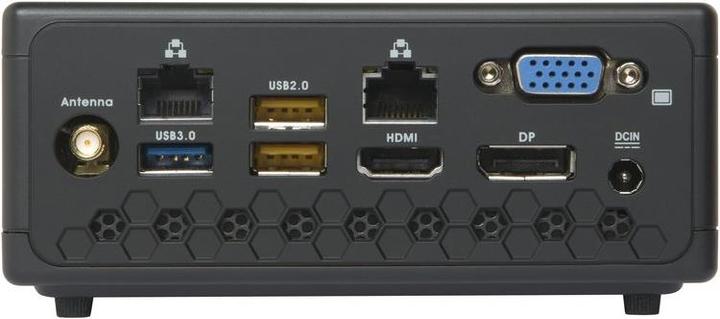

Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Audio outputs | 3.5mm jack (1x) |
Memory card type | SD, SDHC, SDXC |
Power | 40 W |
CO₂-Emission | |
Climate contribution |

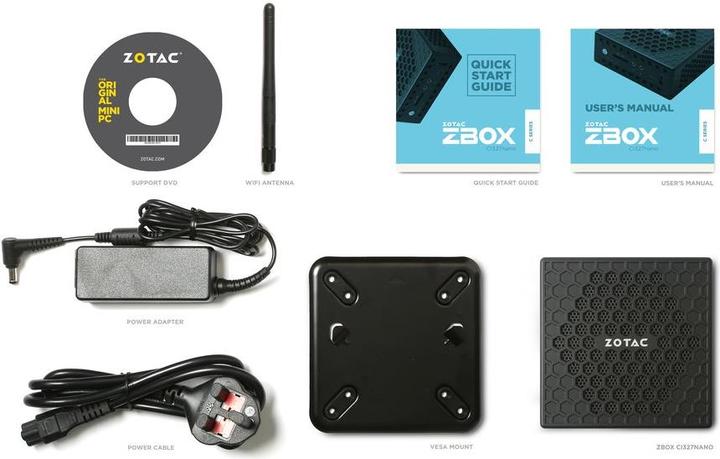

Scope of delivery | Quick Installation Guide, User guide, VESA bracket, WiFi antenna |
Width | 127.80 mm |
Length | 126.80 mm |
Height | 56.80 mm |
Length | 24 cm |
Width | 23.60 cm |
Height | 8.80 cm |
Weight | 1.91 kg |
Specifications may include unverified machine translations.
