Zellner group S/FTP PiMF patch cable

PiMF, CAT6a, 10 m
CHF3.09/1m
Delivered between Fri, 8.8. and Tue, 26.8.

Shield

Colour

Length

Product details

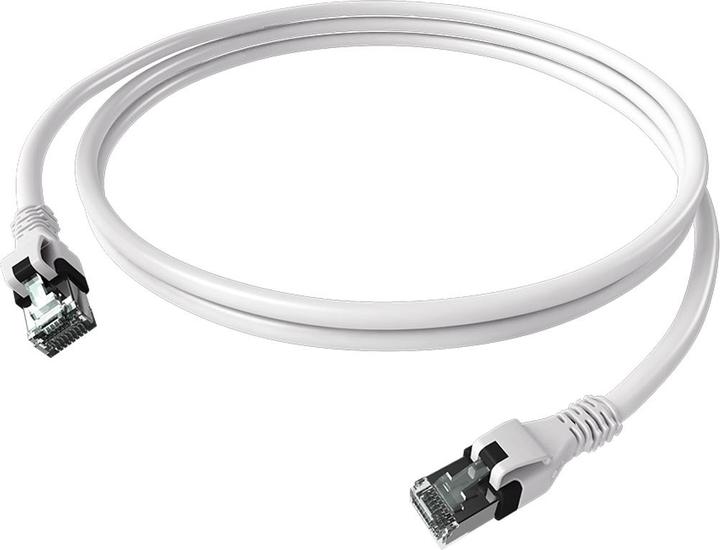

EasyLan® DualBoot® PushPull patch cable, Cat.6A (ISO/IEC), shielded, 4PPoE RJ45 network cable with PushPull locking - making your life easier! PushPull connection cable RJ45/RJ45, shielded, 1:1 wiring with DualBoot® overmolding including PushPull release. With this RJ45 connector variant, the small RJ45 clip is no longer pressed to release, but simply pulled on the sleeve. The PushPull locking mechanism works with any standard RJ45 socket and outlet. The PushPull patch cables make it easier to patch in densely packed data center distribution panels, at hard-to-reach consolidation points, or at subscriber connections in floor tanks. The connectors are optimized for use in high-density switches. The DualBoot® overmolding provides optimal strain relief while preventing the locking latches from snagging. The cable used offers maximum data security through its foil shielding and 360° shielded RJ45 connectors.

Key specifications

Patch cable type
Copper cable
Contact assignment
straight
Item number
34405589

General information

Manufacturer
Zellner group
Category
Network cables
Manufacturer no.
CPP1ORARAR0100
Release date
17.5.2023

Colour

Cable colour
Red

Material

Material
Halogen-free compound

Cable properties

Connection B
RJ45
Cable design
halogen-free (LSHF)
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
26
Impedance
100 Ohm
Temperature range
Max. operating temperature: 60 °C

Patch cable properties

Patch cable type
Copper cable

Twisted-pair cable properties

Cable category
CAT6a
Contact assignment
straight
Shield
PiMF

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
10 m
Width
13 mm
Depth
10000 mm
Weight
438.10 g
