Zamel Wireless control set (RNK02+ROP01) - RZB-01

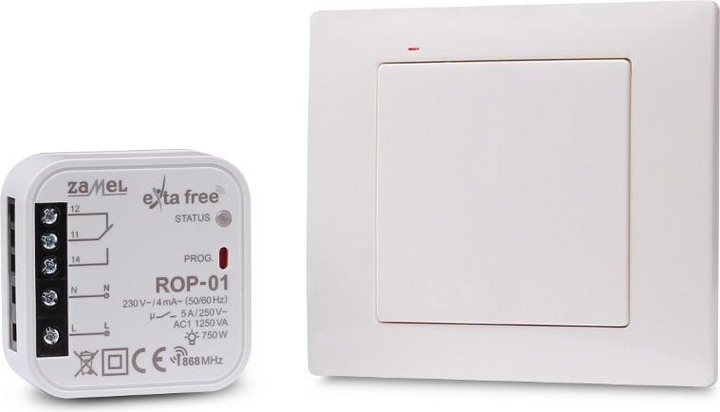

Wireless Control Set (RNK02+ROP01) – RZB-01

Features: Control of lighting or other receivers, easy installation of the receiver in the lamp body or 60-mm installation box, five operating modes: On, Off, monostable, bistable, Timer mode (delayed). Shutdown. Large range, optical indication of low power consumption, possibility of continuous operation, option to extend the range with the RTN-01 repeater.

Addressing:
Number of transmitter channels: 2
Number of receiver channels: 1
Transmitter range: 250 m
Operating range of the receiver: 230 m
Protection class of the transmitter: IP20
Protection class of the receiver: IP20
Maximum relay current: 5 A
Maximum relay voltage: 250 V AC
Maximum relay power: 1250 VA
Contacts: 1 Normally Open/Normally Closed
Usage category: AC1.
